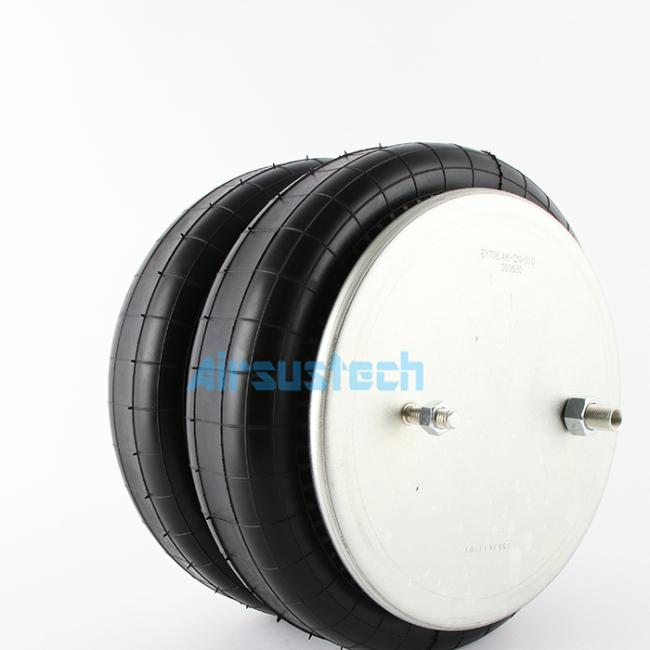

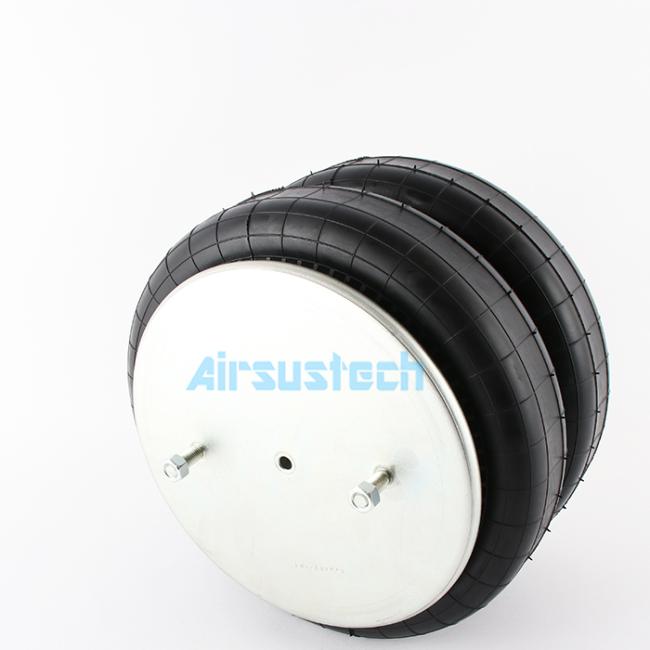

Rubber Air Spring Shocks Watson Chalin AS-0089 AS0089 Double Convoluted
Rubber Air Spring Shocks Watson&Chalin AS-0089 AS0089 Double Convoluted
.
Cross Reference
Watson&Chalin AS-0089
Watson&Chalin AS 0089
Watson&Chalin AS0089
Reyco 19983-01 (21AR,74AR)
Goodyear 2B14-383
Goodyear 2B14 383
Goodyear 2B14383
Goodyear 578923356
Firestone W01-358-7557
Firestone W01 358 7557
Firestone W013587557
Firestone WO1-358-7557
Firestone WO1 358 7557
Firestone WO13587557
Firestone w01-358-7557
Firestone w01 358 7557
Firestone w01 358 7557
Firestone w013587557
Contitech FD 530-35 530
Contitech FD 530 35 530
Contitech FD530-35 530
Contitech FD530 35 530
Triangle 6412
Triangle 4530
Histeer 10316
Twthill 1998301
Specifications and Detailed Technical Parameters: 2B7557
Nut/blind nut
Top plate screw (nut) teeth: M18×1.5, M12×1.75
Screw (nut) teeth of the bottom cover plate: 2×M12×1.75
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
The air hole/air inlet is combined with the screw nut
Cover plate
Top plate diameter: 289 mm
Bottom cover diameter: 289mm
The screw center distance of the bottom: 158mm
Bell rubber bellows
Rubber Bellow Diameter: 353mm
Stroke: 104mm to 391mm
Bumper block/bumper block
With bumper block
Belt loop/Belt loop
With one piece of belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 7.7kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 285mm, minimum 265mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 18.7 | 25.1 | 31.6 | 38.2 | 44.6 | 51.2 | 23.5 |
| Spring rate [N/cm] | 1770 | 2250 | 2700 | 3180 | 3640 | 4100 | |
| Natural frequency [Hz] | 1.5 | 1.5 | 1.5 | 1.4 | 1.4 | 1.4 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 320 | 14.9 | 20.4 | 25.9 | 32.0 | 37.6 | 43.7 | 26.0 |
| 280 | 18.5 | 24.5 | 31.0 | 38.1 | 45.0 | 51.7 | 23.2 | |
| 240 | 21.1 | 28.0 | 35.5 | 43.3 | 50.3 | 57.9 | 20.5 | |
| 200 | 23.1 | 30.7 | 38.5 | 47.1 | 54.8 | 62.8 | 17.5 | |
| 160 | 24.8 | 33.1 | 41.3 | 50.4 | 58.4 | 67.2 | 14.1 | |
| 120 | 26.2 | 34.8 | 43.4 | 52.9 | 61.5 | 70.6 | 10.8 | |
Features and Usage Of Convoluted Air Spring
Rubber air spring is a kind of polymer elastomer. The product has high vibration damping effect, small resonance field, long service life, good cold resistance, excellent air tightness, water resistance and electrical insulation, which is excellent Vibration reduction options.
Due to the above advantages of rubber air springs, it has been widely used in truck floating bridges, automobile air suspensions, paper machines, lifting platforms, presses, punching machines, large toys, drying equipment, sludge dewatering machines, and vibrating conveyors. , vibrating screen, air hammer vibration testing machine, casting machinery and other equipment or instruments that require stroke control or shock absorption and vibration isolation.
