WO13586926 Air Spring Actuator Firestone Goodyear 2B9-288 Double Convoluted Air Spring Assembly
Air Actuator WO13586926 Firestone Goodyear 2B9-288 Double Convoluted Air Spring Assembly
Cross Reference
Firestone: w013586926; WO13586926; WO1-358-6926; WO1 358 6926; W01-358-6926; W01 358 6926; W013586926
Airspring Supplier: Goodyear
Competitor/Supplier Number: 2B9-288; 2B9 288; 2B9288
Airspring Supplier: ContiTech
Reference: 161299
Competitor/Supplier Number: FD200-19 504; FD 200-19 504; FD20019504; FD200 19 504; FD 200 19 504
Airspring Supplier: Triangle
Reference: 6325
Competitor/Supplier Number: 4504
Suspension Supplier: LoadShare
Suspension Supplier: LoadShare
Suspension Supplier: RR Load
Competitor/Supplier Number: LS20
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6926
2pcsX3/8-16UNC Nut/blind nut; 89mm screw center distance; 1/4NPTF offset air inlet; 160mm cover plate; 224mm natural rubber bellow; 251mm Max. rubber bellow, 92mm to 274mm height; with bumper; one piece of girdle hoop
Min. pressure: 0bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 3.2kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 220mm, minimum 205mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 6.1 | 8.2 | 10.3 | 12.5 | 14.5 | 16.5 | 6.0 |
| Spring rate [N/cm] | 750 | 960 | 1110 | 1340 | 1510 | 1730 | |
| Natural frequency [Hz] | 1.8 | 1.7 | 1.7 | 1.6 | 1.6 | 1.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 250 | 4.9 | 6.6 | 8.2 | 9.5 | 11.7 | 13.4 | 6.5 |
| 210 | 6.7 | 8.8 | 11.0 | 13.3 | 15.5 | 17.6 | 5.8 | |
| 170 | 7.9 | 10.5 | 13.1 | 15.7 | 18.3 | 20.7 | 4.9 | |
| 130 | 9.1 | 12.0 | 15.0 | 17.8 | 20.7 | 23.4 | 4.0 | |
| 90 | 9.9 | 13.2 | 16.6 | 19.8 | 23.0 | 25.8 | 2.9 | |
- Excellent bending range.
- Air springs can reduce your costs and increase your profits.
- Lasts at least twice as long and up to four times longer than steel springs.
- Requires little or no maintenance.
- Increases the life of tires and brake pads.
- Significantly reduces damage and maintenance of other vehicle components, including electrical, air conditioning, cab support, exhaust, chassis, seals, wiring and drivetrain.
- Reduce driver annoyance and dangerous fatigue; Improved safety, productivity and driver loyalty.
- Allows perfect load balancing between shafts; Allows you to run up to the maximum legal limit.
- Provides a smoother ride for payloads, reducing the cost of expensive insurance claims and excessive packaging.
- All air spring assemblies are 100% pressure tested before delivery.
- 1 year warranty.
The advantages of rubber airbag shock absorbers can be distinguished from the following aspects.
1. The cost-effective 2B6926 rubber airbag shock absorber can be made into a variety of industrial products with different shapes and specifications. Their structure is very compact and can reasonably and effectively use indoor space.
2. The elastic mold is small, and a relatively large elastic deformation can be obtained, which is very easy to realize the optimal control characteristics of the dream.
3. Easy to install and disassemble. 2B6926 can be easily disassembled, very convenient

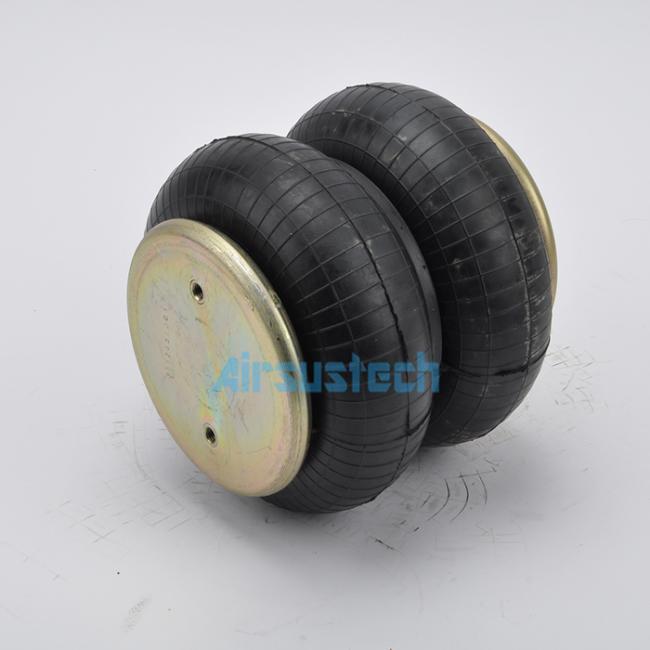

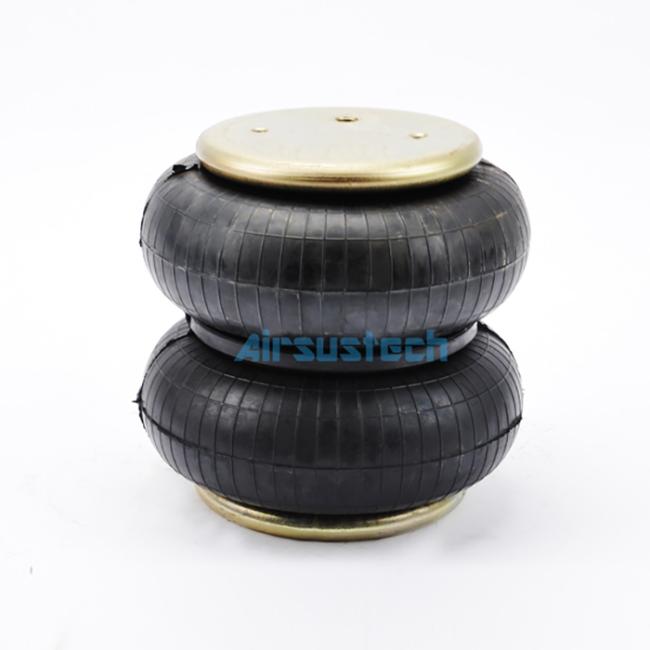

The related picture of 2B6926
