Replaces Gart T291/2B 2 Convoluted Air Spring Actuator 1/4NPT Offset Portsize M10
Replaces Gart T291/2B Double Convoluted Air Actuator 1/4NPT Offset Portsize M10 Industrial Air Spring
Replace these air springs
Gart T291/2B(291.2.260)
Firestone Part No.: W01-M58-7679/20C2
Firestone Part No.: W01M587679/20C2
Firestone Part No.:W01 M58 7679/20C2
Firestone Part No.: WO1-M58-7679/20C2
Firestone Part No.: WO1M587679/20C2
Firestone Part No.: WO1 M58 7679/20C2
Goodyear 2B9-269
Goodyear 2B9 269
Goodyear 2B9269
Dunlop S0 9280
Dunlop S09280
R.O.R/Meritor 21221356
Weweler US 07394F
Schmitz Trailer 016808
Granning 15670
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B7679
|
Nut/blind nut |
|
|
Top/Bottom plate screw (nut) teeth |
2XM10×1.5 |
|
The screw center distance of the top/bottom cover plate |
89mm |
|
Air hole/air inlet/air fittings |
|
|
Portsize |
1/4NPTF |
|
The screw center distance between the air hole and the nut |
44mm |
|
Cover plate |
|
|
Top/Bottom plate diameter |
160mm |
|
Bell rubber bellows |
|
|
Maximum diameter of rubber bellows |
262 mm |
|
Working stroke |
minimum 95 mm to maximum 325 mm |
|
Without Bumper block/bumper block |
|
|
One piece of Belt loop/Girdle hoop/Girdle ring |
|
Rubber Airspring/Air Actuator
On the one hand, the air spring can isolate vibration, on the other hand, it also has a certain stability, and the service life is quite high. Some air springs now also feature automatic level adjustment.
The scope of application of air springs is actually very wide. Such as various sensors and meters, as well as some packaging machinery.
Guomat is a professional supplier of rubber air springs. All products are genuine and guaranteed. The delivery time is fast, if the products are in stock, it can be delivered within three working days.
Packing Details and shipping
Packing details
We pack the goods in strong cartons, netural box or as customers' request.
Net Weight: 4.07kg
Gross Weight: 4.45kg
Box Weight: 0.38kg
Box Size: 24*24*24cm
Packing Quantity: one
Shipping
- If the quantity is small, we usually ship them by express, such as Fedex, UPS, DHL, TNT or others.
- If the quantity is large, we could ship them by sea or others.
Additionally, we also could ship the goods as customers't requirements.

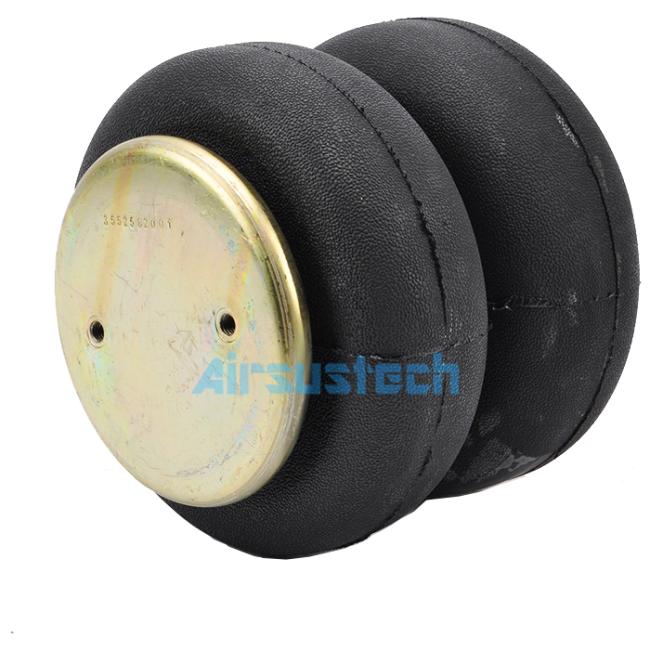

The related picture of 2B7679
