Triple Convoluted Suspension Parts Ridewell 1003588010C Air Springs In Ripper Machine

Cross Reference

Ridewell : 1003588010C

Firestone Part No.: W01-358-8010; W01 358 8010; W013588010; WO1-358-8010WO1 358 8010; WO13588010
Contitech : FT 330-29 432; FT 330 29 432; FT330-29 432; FT330 29 432; FT 33029 432; FT 3302943; FT33029432
Goodyear Part No.: 3B12-301; 3B12 301; 3B12301

Goodyear Bellow No.: 578933100; 578-93-3-100; 578 93 3 100
Triangle : 6334

Triangle : 4432

Leland : Sc2119; SC2119

Oshkosh : 8013

Specifications and Detailed Technical Parameters: 3B8010

How do you maintain air suspension

To help you better take care of your vehicle, here are the top five tips for maintaining your car's air suspension system.
1. Check System for Leaks.
2. Check Air Line Connections.
3. Check the Air Springs.
4. Perform Visual Inspections and Clean Regularly.
5. Schedule Routine Service Appointments

Air Spring used in ripper machine

The Guomat 3B8010 pneumatic air spring can be used in ripper machine. The ripper is a very strong machine that works mainly in rock areas and for those applications where strong impacts on the ground are required.

The pneumatic rubber air bellow plays an important role in this application, considering the strong shocks that has to absorb when the ripper’s blade impacts on materials as cement, limestones, etc.

The air spring’s performance is remarkable as it is a pneumatic rubber cylinder able to absorb the shocks and the vibration, while this machine is working. In addition, it can also be used as an actuator, taking into account that it may be expanded or contracted by using an air supply, in order to push the blade and make a higher strength to extract the limestone while hitting the ground in the working area.

Air Spring also can be used in paper mills, Wood pilling machines and debarkers, Agriculture Applications, high precision electronic equipment and so on.

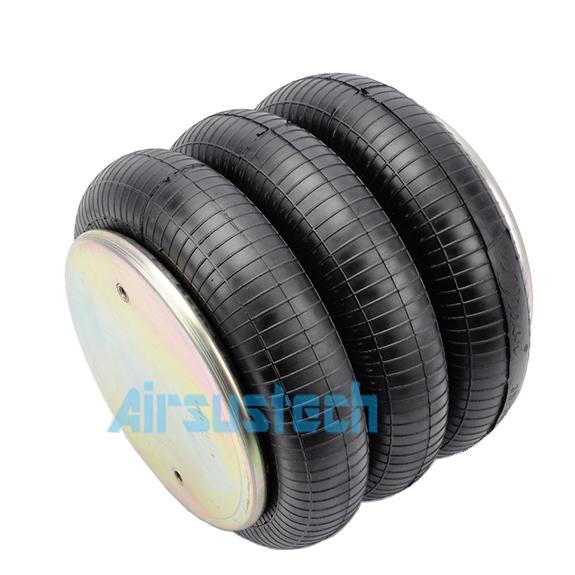

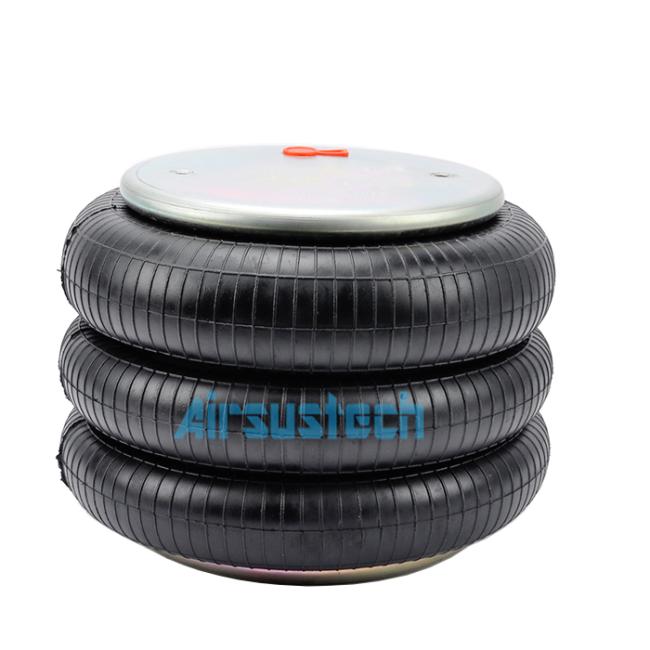

The related picture of 3B8010
