One Convoluted Rubber Air Bellow 14 1/2''×1 Contitech FS 614-13 DS Air Spring Assembly


OEM Cross reference




Specifications and Detailed Technical Parameters: 14 1/2×1

Our Standard two ply construction is actually made of: an inner liner of calendared rubber; Two ply's of fabric reinforced rubber, with specific bias to one another; An outer cover of calendared rubber.

BELLOWS TYPE: Single Convolutions

AIR INLET TYPE: Metric

Operation: Single acting

Nut/blind nut:

Top plate screw (nut) teeth:4pcs X M10

Bottom cover plate screw (nut) teeth: 4pcs X M10

Air hole/air inlet/air fittings: G1/2

Rubber Bellows:

Top plate diameter (width): 310mm

Diameter (width) of the bottom cover plate: 310mm
Hmin [mm]: 50
Hmax [mm]:175

Minimum working pressure: 0 bar
Maximum working pressure: 8 bar

Bumper block/bumper block:No

Belt loop/Girdle hoop/Girdel ring:No

The main parameters of air spring design

1. Bearing load
2. Installation space
3. Air spring stroke

What is the purpose of an air spring

An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.

Application

Air springs are widely used in highways, large and medium-sized paper machinery, paper industry, mining machinery, sewage treatment, medical machinery, environmental protection washing and many other equipment.

For example, the air suspension system of the car uses the air spring as the elastic element, and uses the compressibility of the gas to achieve its elastic effect - the air pressure of the compressed gas can be automatically adjusted with the change of load and road conditions, no matter full load or no load, The height of the whole vehicle will not change, which can greatly improve the ride comfort.

Another example is that it can be used in a centrifuge to achieve the effect of shock absorption and quietness. Industrial centrifuge equipment works very fast, and the high speed of rotation is bound to cause resonance. The harm of long-term resonance is very great. It will not only cause damage to the workshop, but also severely affect the life of the equipment itself and the mold, so the use of air springs on the centrifuge can effectively reduce noise and prevent resonance.

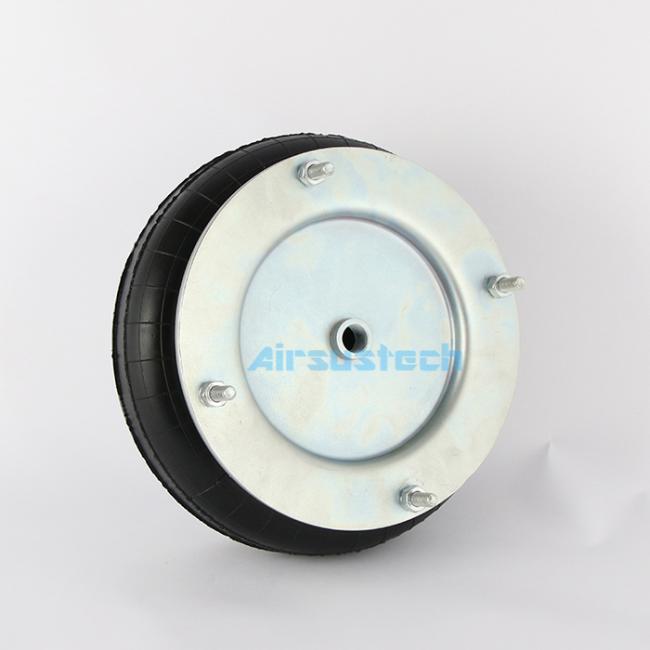

The related picture of 14 1/2×1 air spring assembly
