12×2 Air Spring Bellows Double Convoluted Cross Firestone W01-R58-4044 68mm Min Height

12×2 Air Spring Bellow Double Convoluted Cross Firestone W01-R58-4044 68mm Min. Height

Specifications and Tecnical Data: 12×2 air bellow

Cross Reference

Firestone 2-fold bellows Style

Bellow number: 12×2

Firestone W01-R58-4044

Firestone W01R584044

Firestone W01 R58 4044

Firestone WO1-R58-4044

Firestone WO1 R58 4044

Firestone WO1R584044

Firestone w01-r58-4044

Firestone w01 r58 4044

Firestone w01r584044

Dunlop SP 256NB

Dunlop SP256NB

How are air bellows constructed

The flexible bellows are made from fabric reinforced rubber and usually have one, two or three convolutions, depending on the stroke required. The air bellow is fixed between two chrome steel end caps and chrome steel studs are welded to each end cap; this makes bellows easy to install, particularly as they have higher tolerance to mis-alignment than other linear actuators. However, the full surface of the metal endcaps must be used to bear the force and lateral guides should be used.

What are typical applications

Pneumatic air bellows are most commonly used for raising and lowering functions. They are particularly suitable for applications that require short stroke (up to 410mm) and high load capability (up to 237,600N at 7 bar). Good examples are handling applications, like scissor or platform lifts, machine stops or footings, hopper vibration dampers, reel tensioning, stamping presses and vehicle suspension.

There are more such applications where the air bellows are used either to produce motion (as an actuator) or to provide isolation in high vibration situations.

Other types

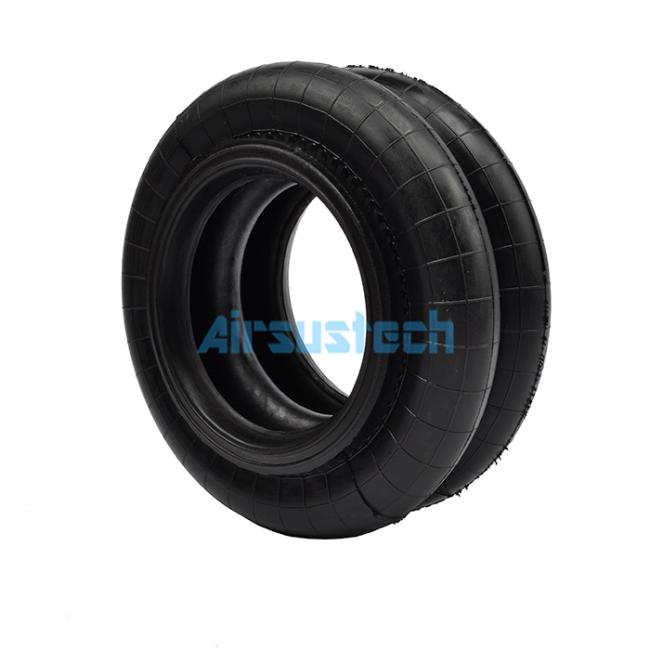

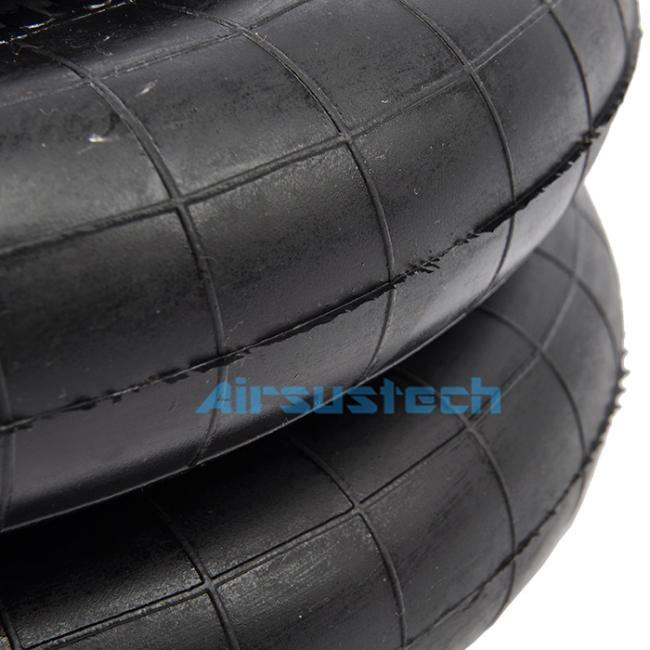

The image of 12×2 air spring bellows
