Goodyear Helper Air Bag 1B8 850 Super Rubber Cushion One Convoluted Air Spring
Goodyear Helper Air Bag 1B8 850 Super Rubber Cushion One Convoluted Original Air Spring
Product Identifiers
Brand: Goodyear
Type:Air Spring
Cross Reference
Airspring Supplier: Goodyear
Reference: 579-91-3-530; 579-91-3-530; 579913530
Supplier Number: 1B8-850, 1B8 850, 1B8850,
Specifications and Detailed Technical Parameters: Goodyear 1B8-850
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
Vibration isolation - dynamic characteristics
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | ||||||
Other types of original goodyear air spring we could offer
1B5-500; 1B5-502; 1B5-503; 1B5-510; 1B5-512; 1B5-520; 1B5-521; 1B6-530; 1B6-531; 1B6-532; 1B6-533; 1B6-535; 1B6-536; 1B7-540; 1B7-541; 1B7-542; 1B7-544; 1B8-550; 1B8-552; 1B8-553; 1B8-560; 1B8-562; 1B8-563; 1B8-564; 1B9-201; 1B9-202; 1B9-204; 1B9-207; 1B9-208; 1B12-301; 1B12-304; 1B12-305; 1B12-313; 1B12-318; 1B14-350; 1B14-351; 1B14-352; 1B14-353; 1B14-362; 1B14-364; 1B15-375; 1B15-377; 1B15-378; 2B6-530; 2B6-531; 2B6-532; 2B6-533; 2B6-535; 2B7-540; 2B7-541; 2B7-542; 2B7-546; 2B8-550; 2B8-552; 2B8-553; 2B8-554; 2B9-200; 2B9-201; 2B9-204; 2B9-205; 2B9-208; 2B9-216; 2B9-240
Goodyear 1B5-800 (579-91-2-800)
Goodyear 1B5-800 (579-91-2-800)
Goodyear 1B6-833 (579-91-2-833)
Goodyear 1B6-833 (579-91-2-833)
Goodyear 1B8-850 (579-91-2-850)
Goodyear 1B12-318 (579-91-2-318)
Goodyear 1B12-318 (579-91-2-318)
Goodyear 1B5-500
Goodyear 1B5-502
Goodyear 1B5-503
Goodyear 1B5-510
Goodyear 1B5-512
Goodyear 1B12-313
Goodyear 1B12-301
Goodyear 1B12-304
Goodyear 1B12-305
Goodyear 2B9-223
Goodyear 2B12-343
Goodyear 2B9-200

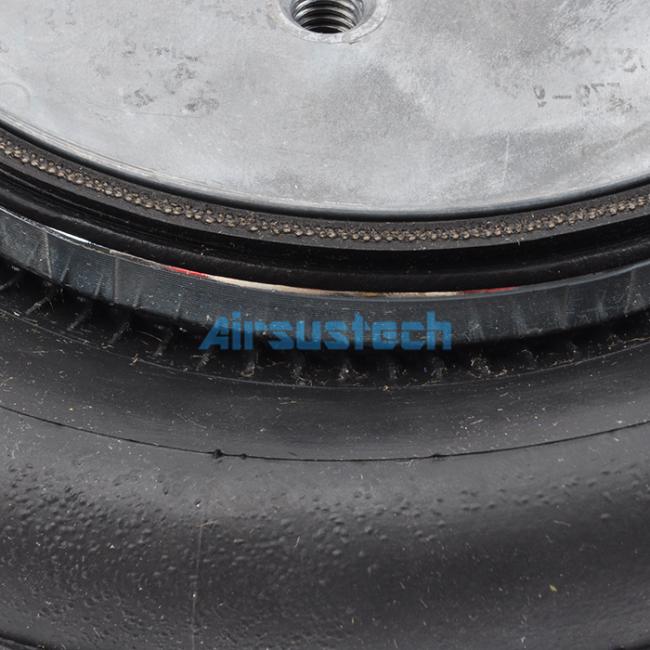

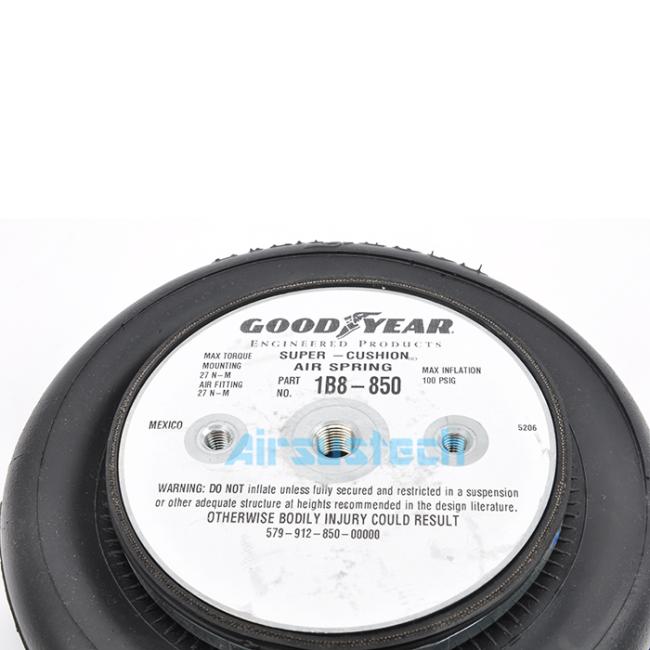

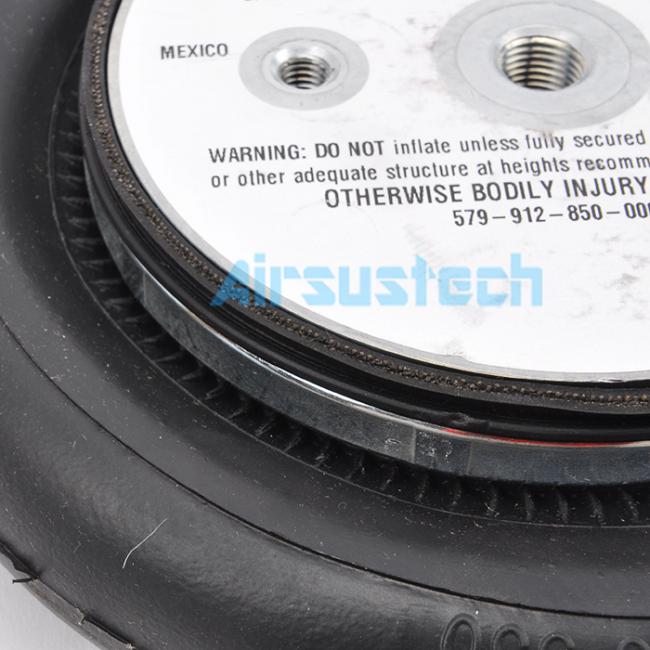

The related picture of 1B8-850
