Goodyear 1B12 318 Single Convoluted Bellow Air Spring 336mm Max. Dia At 7 Bar

Original Goodyear 1B12 318 Single Convoluted Bellow Air Spring 336mm Max. Dia At 7 Bar

Product Information

Product name: air helper springs, air suspension parts, air springs, air shocks

Product No.: 1B12-318

Original: Mexico

Packing: Strong cartons

Shipping, by express for small quantity or as customers' requirements

Applications: Leather machine equipment, testing platform equipment, washing equipment, ore equipment, paper machine equipment, vibrating screen equipment, air hammer equipment, vibration testing machine, foundry machinery, 4D cinema seats, press equipment, vibration isolation equipment, vibration isolation equipment, Bus station inspection platform, marble anti-shake equipment, washing and dehydrating machine, amusement equipment, carousel, papermaking machinery, punching equipment, machine tool equipment, wire mesh machinery and equipment, leather vibration machinery, vibrating screen, mining equipment, pipeline equipment, boat mooring Equipment, dust removal equipment, precision equipment

Cross Reference

Air spring supplier: Goodyear

Supplier Number: 1B12-318; 1B12 318; 1B12318

Air spring supplier : Continental ContiTech
Supplier Number: FS 330-11 3/4 M8; FS 330-11 CI; 62743; FS 330-11 G3/4 M8;  FS 330-11 CI G3/4; FS 330-11 CI G3/4 M8; FS 330-11 CI / FS330-11CI / FS33011CI
Air spring supplier : Firestone
Supplier Number: W01-M58-6011 / W01 M58 6011 / W01M586011/ WO1M586011 / WO1 M58 6011/ WO1-M58-6011
Firestone Style: 19


Specifications and Detailed Technical Parameters: Goodyear 1B12-318

336mm Max. Dia at 7 bar; 228.6mm Cover plate diameter; 157.5mm B.C. Diameter; ISO228-G3/4-14; 2pcs blind nuts on each cover plate

Other Types Of Convoluted Goodyear Air Spring we have

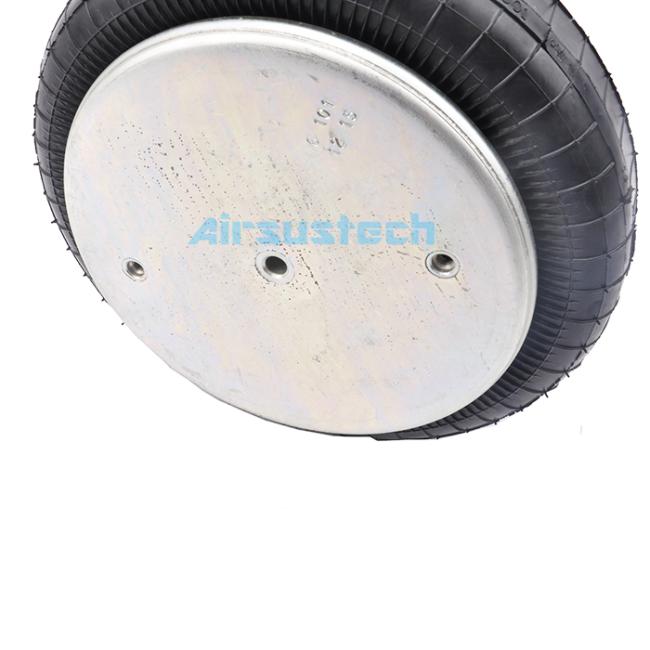

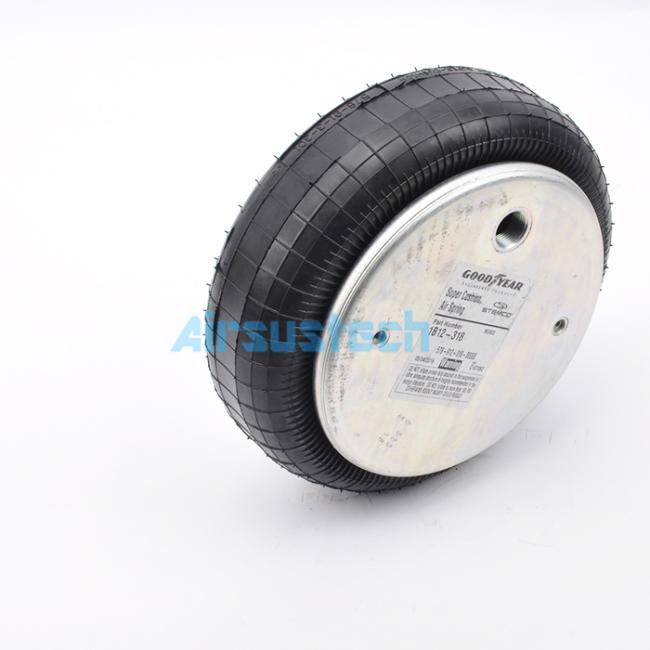

The related picture of 1B12-318
