Firestone W01-358-7751 1/4NPT Airmount One Convoluted Pulp Machinery Rubber Air Spring


Essential Information

Product No.: 1B7751
Type: Air Spring
Function: Vibration and noise reduction
Payment: T/T, Western Union, Paypal or Others
Delivery time: 3 working days if we have stocks.
Export country: Worldwide
Shipping way: by express, by train, by sea, by air plane or others.


Fitment Information

Air spring Supplier: Firestone
Supplier Part Number: W01-358-7751; W01 358 7751; W013587751; WO1-358-7751; WO1 358 7751; WO13587751; w01-358-7751; w01 358 7751; w013587751

It can also replace goodyear/Enidine air springs.

Air spring supplier: Goodyear

Supplier No.: 1B6-535; 1B6 535; 1B6535

Flex No.: 579-913-512; 579-91-3-512; 579 91 3 512; 579913512

Air Spring Supplier: Enidine

Supplier Number: YI-1B6-535; YI 1B6 535; YI1B6535

Specifications and Detailed Technical Parameters:AIRSUSTECH Rubber Shocks 1B7751

Actuator with one convolution, One/Single Convoluted, 2-Ply Standard Cord, Type 1 Bead Plate, 1/4 NPT Centered Air Inlet, 4.50 Cover Plate Diameter, 1.75 Blind Nut Centers Distance, 2pcs×3/8-16 Blind Nuts (5/8 Deep) on each cover plate


Air Spring Used In Pulp Machine

Many machines within the process employ some form of energy absorption and vibration isolation components - air springs: pulp and paper machines, roll storage equipment, roll automation and roll conveyors, etc.

An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.

Air springs are durable, sophisticated in design and cost effective for a wide range of actuation and vibration isolation applications. Air springs deliver superior quality and performance with a proven design, fabric-reinforced neoprene or natural rubber flexible member construction, and corrosion-resistant end retainers.
Air springs act as actuators, providing linear or angular motion. Compared to cylinders, these air springs offer a good stroke-to-compression height ratio and are available with various actuation media such as air, water, nitrogen or antifreeze.
As vibration isolators, air springs can effectively reduce the harmful effects of vibration. they can
Vibration isolation and load height adjustment are simultaneously achieved, and consistent vibration isolation can be achieved under varying loads.

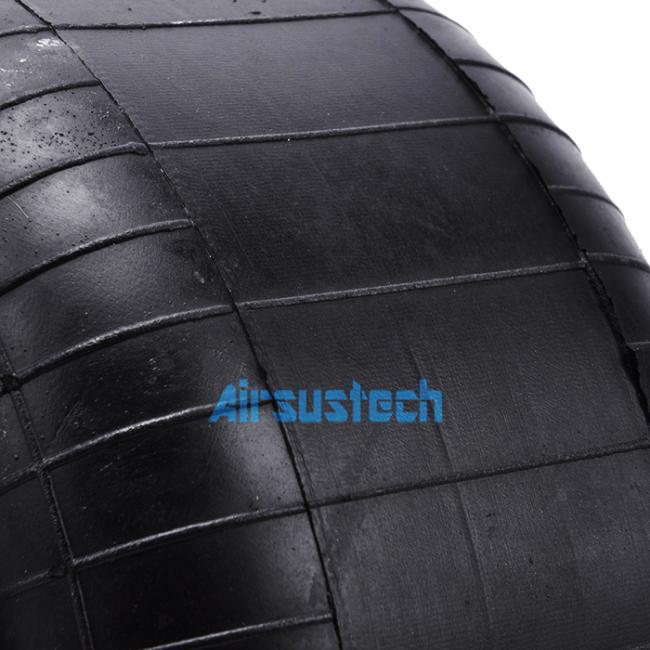

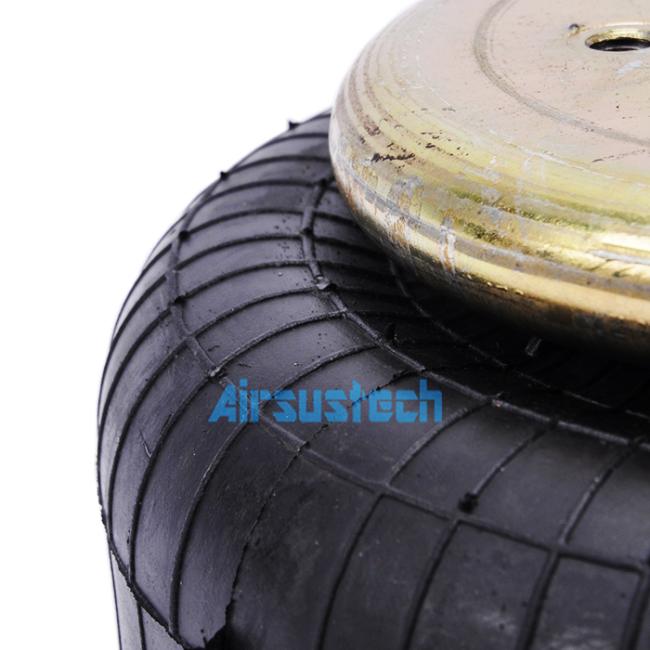

The related picture of 1B7751 rubber air spring/air shocks/airmount
