Industrial Suspension Air Springs Firestone W01-358-6935 W01-358-6856 For Hendrickson Lift Axles S-14318
Industrial Suspension Air Springs Firestone W01-358-6935 W01-358-6856 For Hendrickson Lift Axles S-14318
Essential Information
Product No.: 2B6935
Type: SHOCK ABSORBER, air spring assembly
Material: Rubber and Steel
Place of Origin: Guangzhou, China
Brand Name: Netural
Name: air spring/airbag/air suspension
Color: Black
Spring Material: rubber
Application: Paper machinery, Textile machinery, Vibrating machinery, Baker peeling machinery, Piston machines, Scissors type lifting table,Press, Roll tensioner, Assistant air suspension for motor home, or other industrial equipments
Warranty: 12 Months
Delivery time: 3-8 Working days
Payment: T/T, Western Union, Paypal or Others
Cross Reference
Firestone W01-358-6935/W013586935/WO13586935, W01-358-6856/W013586856/WO3586856, Firestone Style 20, Contitech FD 200-19 499/ FD200-19499, Goodyear 2B9-201/ 2B9 201/2B9201, Hendrickson S-14318/ S14318, 003318, Freightliner 16-14318-000/ 1614318000, FleetPride AS6935, Taurus 6325, Triangle AS-4499/AS4499, TRP AS69350, Automann SP2B12R-6935/ SP2B12R6935, Granning 4848, Loadguard SC2010, Navistar 554784C1, R&S Truck 1027505, Granning 702932-01/ 70293201, Sauer P50-733A/P50733A, Suspensions, Inc. 200042, Arvin Meritor 201548, Navistar 2B9-491/2B9 494, Taurus AS218-6902/ AS2186902, Ridewell S1728C
Cross references are not a guarantee that the part will fit any specific application. Check all information available before relying on a cross reference to make a purchase
Air Spring spcifications and data parameters: 2B6935
|
Type |
Double Convolution Air Spring; 2-Ply Bellows |
| Top Plate Hole/Stud Qty | 3 |
|
Threaded Hole on top plate |
2pcs×3/8-16UNC |
|
Bottom Plate Hole/Stud Qty
|
2 |
| Bottm Plate Hole/Stud |
2pcs×3/8-16UNC
|
|
The screw center distance |
89mm |
|
Air Inlet/ Air firrings |
1/4-18NPTF, OFFSET, 44.5mm |
|
Top and Bottom cover plate diameter |
160mm |
|
Min. height |
95mm |
|
Max. height |
274mm |
|
Natural Rubber Bellow Diameter |
224mm |
|
Max. OD |
251mm |
|
Girdle ring/Girdle hoop/Belt loop |
one piece |
|
Bumper/ Bumper Block |
Yes |
Judging the pros and cons of rubber airbag shock absorbers can be distinguished from the following aspects
1. The cost-effective 2B6935 rubber airbag shock absorber can be made into a variety of industrial products with different shapes and specifications. Their structure is very compact, and they can use indoor space reasonably and effectively.
2. The elastic mold is small, and a relatively large elastic deformation can be obtained, which is very easy to realize the optimal control characteristics of the dream.
3. The appearance is not limited, and the bending stiffness in three directions can be designed according to specific requirements.
4. With high internal resistance, it has excellent practical effect on the digestion and absorption of sudden impact and high frequency vibration.
5. Installation and disassembly are very convenient.

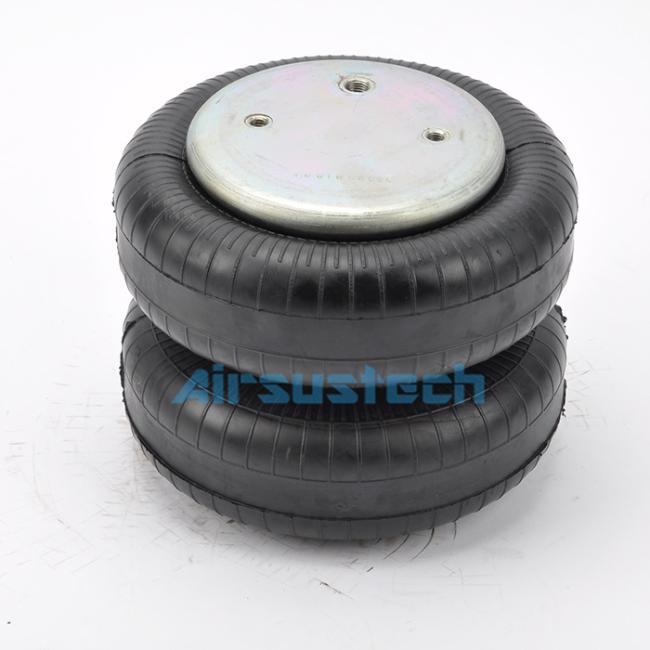

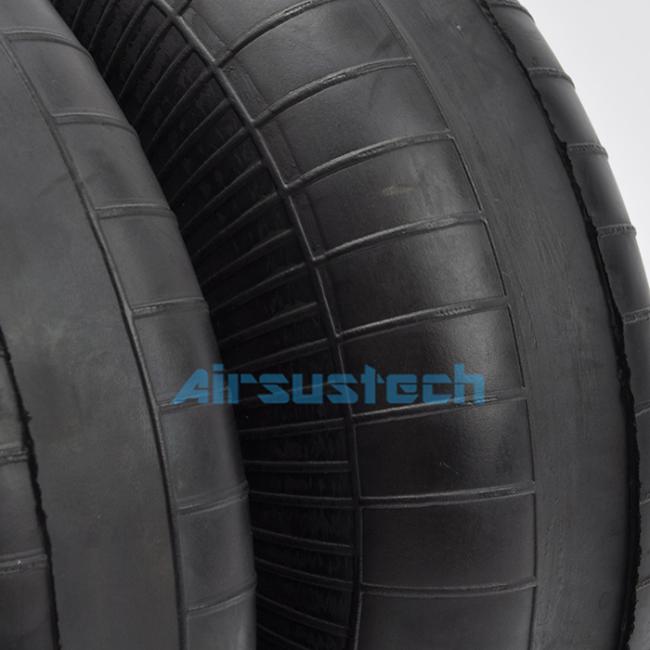

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B6935
