Two Convoluted Air Suspension Spring Contitech FD 200-19 P04 1/4 M10 Firestone W01-M58-7894
Contitech FD 200-19 P04 1/4 M10 Firestone W01-M58-7894 Double Convoluted Air Suspension Spring
Details
Shipping way: By express, by air plane, by sea, by train
Cross Reference
FIT FOR: Fit: Firestone, Airtech, Contitech, Dunlop, Fa1, Goodyear, Granning Lynx, Phoenix, , Kogel, Saf, Scania
Air spring supplier : Firestone
Supplier Number: W01-M58-7894; W01 M58 7894; W01M587894; WO1-M58-7894; WO1M587894; WO1 M58 7894; w01-m58-7894; w01 m58 7894; w01m587894
Air spring supplier: Contitech
Supplier number: FD 200-19 P04 1/4 M10; FD200-19P04 1/4 M10; FD200-19P041/4M10; FD 200-19 P04; FD200-19 P04; FD 200 19 P04; FD20019P04
Air spring supplier: Goodyear
Supplier number: 2B9-287; 2B9 287; 2B9287
Air spring supplier: Dunlop(PR)
Supplier number: S09208; SO9208; S 09208
Air Spring supplier: Phoenix
Supplier number: SP 2B12R5; SP2B12R5; SP2 B12 R5
Air spring supplier: SAF
supplier number: 4.229.1004.00; 4229100400
Air suspension spring supplier:
Supplier number: T2086660; T20 (86660) 207065
Air spring supplier: Taurus
Supplier Number: Kf216; KF216
Air spring supplier: Airkraft
Supplier number: 113549
Air Spring spcifications and data parameters: 2B7894
|
Type |
Double Convolution Air Spring; 2-Ply Bellows |
|
Top Plate Mounting Thread |
2pcs×M10×1.5 |
|
Bottom Plate Mounting Thread |
2pcs×M10×1.5 |
| The screw center distance on top plate | 89mm |
| The screw center distance on bottom plate | 89mm |
|
Top and Bottom cover plate diameter |
160mm |
| Air Inlet | M12×1.5 |
|
Min. height |
75mm |
|
Max. height |
260mm |
|
Max. OD |
251mm |
|
Girdle ring/Girdle hoop/Belt loop |
one piece |
|
Bumper |
NO |
Notes
1. If you need more other models, you can enter "brand model" in the search bar to search for more products you need. If you have any questions, please feel free to contact us
2. After the air spring is damaged or leaked, it must be replaced. Replace with the original product model. If you have any questions, please contact us

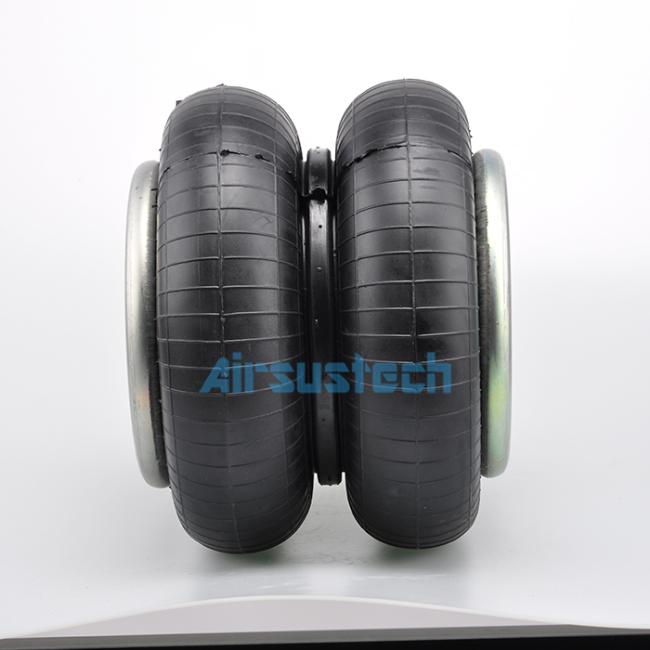

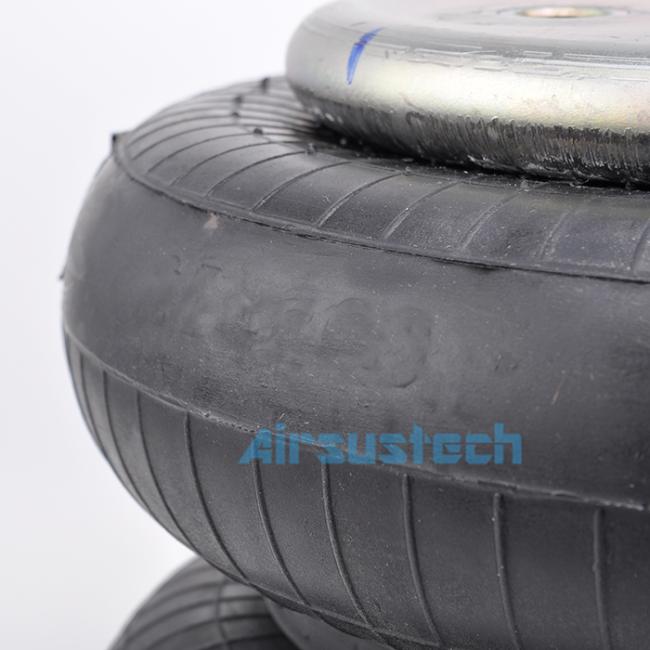

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B7894
