262mm Air Spring Assembly Double Convoluted 1/2-20UNF Stud Firestone W01-M58-6944 Contitech FD 220-25 454
Double Convoluted 1/2-20UNF Stud Firestone W01-M58-6944 Contitech FD 220-25 454 Air Spring Assembly
Cross Reference
Air spring supplier: Firestone
Supplier Number: W01-M58-6944; W01 M58 6944; W01M586944; WO1-M58-6944; WO1 M58 6944; WO1M586944
Firestone style: 20-2; 20F-2
Air spring supplier: Contitech
Supplier Number: FD 220-25 454; FD 220-25454; FD 22025454; FD220-25 454; FD220-25454; FD22025454
Contitech: 161337
Air spring supplier: Goodyear
Supplier part number: 2B9-352; 2B9 352; 2B9352; 2B9246; 2B9-246; 2B9 246
Goodyear bellow number: 578923206; 578 92 3 206; 578-92-3-206
Air spring supplier: Triangle
Supplier number: 6332; 4454
Air suspension spring: Histeer
Supplier number: 10307
Air spring supplier: Arvin meritor
Supplier number: 200118
Air spring supplier: Leland
Supplier number: Sc2124; SC2124
Air suspenion spring supplier: Watson&Chalin
Supplier number: AS0115G
Air suspenion spring supplier: Tuthill technology
Supplier number: 6390
Lamges
Suspensions Inc.
Air Spring spcifications and data parameters
|
Max. OD |
262mm |
|
Cover Plate Diameter |
160mm |
|
Min. height |
95mm |
|
Max. height |
325mm |
|
Bolt/Stud on top cover plate |
1/2-20UNF |
|
The screw center distance on top plate |
86mm |
|
Bolt/Stud on bottom cover plate |
2pcs×1/2-20UNF |
|
The screw center distance on bottom plate |
89mm |
|
Bumper |
Yes |
|
Girdle hoop |
One piece |

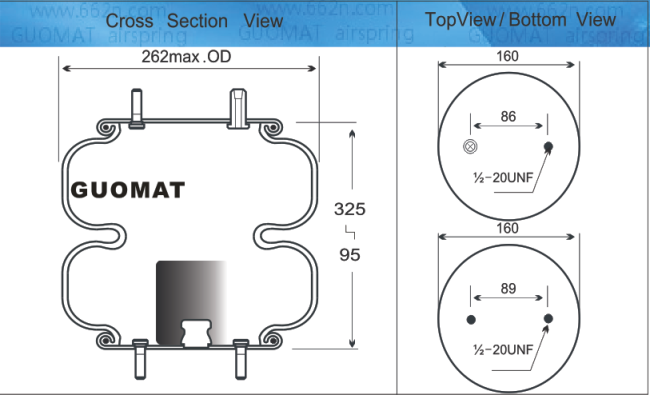

Below is the drawing
We also could supply these firestone model air springs : W01-358-6962 W013586962 W01-M58-7894 W01M587894 W01-358-5900 W013585900 W01-358-6951 W013586951 W01-358-6946 W013586946 W01-M58-6944 W01M586944 W01-358-7325 W013587325 W01-358-7180 W013587180 W01-358-7181 W013587181 W01-358-7183 W013587183 W01-358-7344 W013587344 W01-358-7400 W013587400 W01-358-7401 W013587401 W01-358-7403 W013587403 W01-358-7404 W013587404 W01-358-7405 W013587405 W01-358-7406 W013587406 W01-358-7408 W013587408 W01-358-7409 W013587409 W01-358-7410 W013587410 W01-358-7423 W013587423 W01-358-7424 W013587424 W01-358-7429 W013587429 W01-358-7437 W013587437 W01-358-7472 W013587472 W01-358-7545 W013587545 W01-358-7550 W013587550 W01-358-7555 W013587555 W01-358-7781 W013587781 W01-358-6799 W013586799 W01-358-7557 W013587557 W01-M58-6891 W01M586891 W01-358-7136 W013587136 W01-358-7994 W013587994 W01-358-7995 W013587995 W01-358-7996 W013587996 W01-358-8006 W013588006 W01-358-8008 W013588008 W01-358-8010 W013588010 W01-358-8016 W013588016 W01-358-8025 W013588025 W01-358-8027 W013588027 W01-358-8030 W013588030 W01-358-8029 W013588029 W01-358-7808 W013587808 W01-358-9807 W013589807
