Firestone W01-358-8016 Triple Air Suspension Spring Contitech FT 330-29 433 Rubber Convoluted Airbag
Firestone W01-358-8016 Triple Air Suspension Spring Contitech FT 330-29 433 Rubber Convoluted Airbag
Specifications and Tecnical Parameters: 3B8016
|
1. Min. Height |
117mm |
|
2. Max. Height |
460mm |
|
3. Max. OD |
330mm |
|
4. Top plate mounting thread |
Single Combo Stud and 1pcs bolt/stud |
|
5. The screw center distance |
140mm |
|
6. Bottom plate mounting threads |
2pcs |
|
7. The screw center distance |
157mm |
|
8. Top plate diameter |
231mm |
|
9. Bottom plate diameter |
231mm |
|
10. Bumper |
Yes |
|
11. Girdle hoop |
two pieces |
Cross Reference
Air spring supplier: Firestone
Supplier Number: W01-358-8016; W013588016; W01 358 8016; WO1-358-8016; WO13588016; WO1 358 8016
Air spring supplier: Continental/ Contitech
Supplier Number: FT 330-29 433; FT 330-29433; FT 33029433; FT330-29 433; FT330-29433; FT33029433
Air spring supplier: Triangle
Supplier Number: 6334; 4433
Air spring supplier: Ridewell
Supplier Number: 1003588016C
Air Spring Components
Concoluted air spring normally has one ,double or triple convolutions. The same bellows can be used with many different combination of bead plates.
4. Air fitting hole: A tapped hole providing air entrance for the part.
5. Bead plate: Permanently crimped onto the bellows at the factory allowing complete part leak testing prior to shipping.
6. Bellows: The heart of an air apring. Includes at least four plies, or layers, of material-an inner layer, two plies of cord-reinforced fabric, and an outer layer.
7. Bumper: A solid molded rubber fail-safe device used on many suspension application. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.
8. Girdle hoop: A ring between the convolutions of the convoluted-type air spring.
Application
Papermaking equipment airbags, corrector pneumatic tires, paper machine net blanket straightener pneumatic tires, calender airbags, press airbags, scraper mesh pneumatic tires, modified vehicle suspensions, floating bridge vehicle air suspensions, etc...

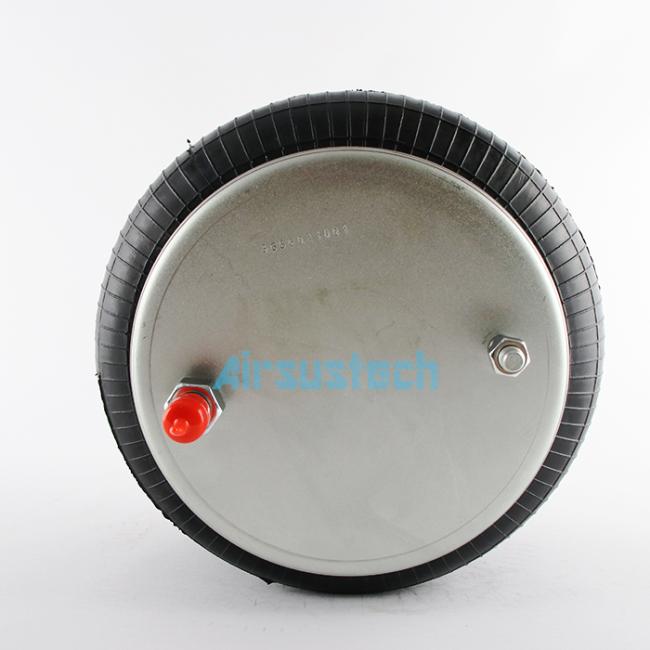

The picture of air spring/air bellow assy/air shocks/air balloon:3B8016
