130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
Cross Reference
|
130118J-2 |
|
130118J2 |
|
130118J 2 |
Specifications and Detailed Technical Parameters
1. Top plate
2pcs × M10× 1.5 Blind Nuts, the screw center distance is 44.5mm
2. Bottom plate
2pcs × M10 ×1.5 Blind Nuts, the screw center distance is44.5mm
3. Air Inlet/Air fittings/ Air hole
Rc1/4, Centered
4. Height: 111mm
Working Stroke: 65mm-132mm
5. Rubber Bellow diameter: 132mm
6. Cover plate diameter
115mm Top Cover Plate
115mm Bottom Plate
7. Without Rubber Bumper
8. One piece of Girdle hoop
Other type of double convoluted air spring we could offer
|
Model |
Product details |
|
168156J-2 |
163mm height 75-170mm working stroke Rc1/4 centered air inlet/air hole 2XM10X1.5 mounting threads on top plate 70mm distance between the two mounting threads on top plate 2XM10X1.5 mounting threads on bottom plate 70mm distance between the two mounting threads on bottom plate 135mm top cover plate diameter 135mm bottom cover plate diameter Without bumper 1pcs girdle hoop/girdle ring |

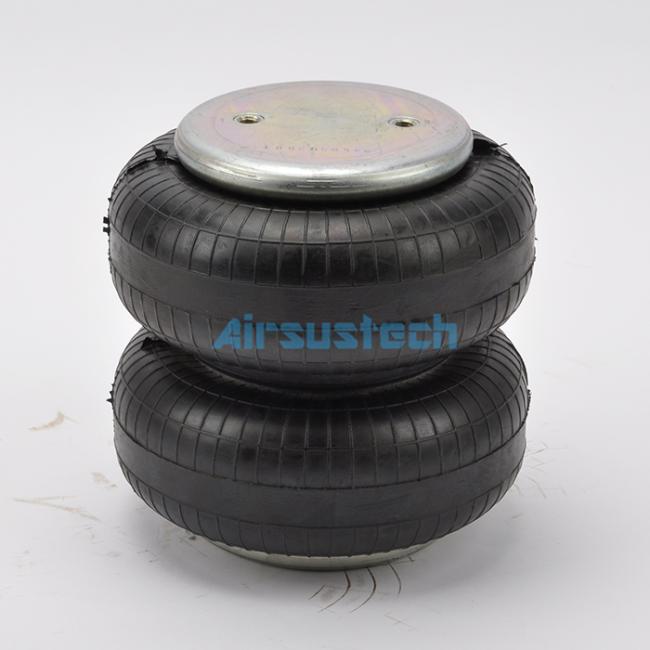

Product Photo
