Rubber Double Convoluted Air Bag Goodyear 2B9-200 578-92-3-202 Replaces CONTI 64267 FD 200-19 320 Air Spring
Goodyear Super Cushion 2B9-200 578-92-3-202 Double Convoluted Airbag Replaces CONTI 64267 FD 200-19 320 Air Spring
Item Details
Goodyear Part number: 2B9-200; 2B9 200; 2B9200; 2B9
Flexmember Number: 579-92-3-202; 579 92 3 202; 579923202
Upper Plate Number:ASA-92-8-016; ASA 92 8 016;ASA928016
Lower Plate Number: ASA-92-6-010; ASA 92 6 010; ASA926010
Convolutions: Double
Other Reference
Air spring supplier/competitor: AUTOMANN
Supplier/Competitor number: ABSP2B12R-6910
Air spring supplier/competitor: CONTI
Supplier/Competitor numbe:64267; FD 200-19 320
Air spring supplier/competitor: DAYTON:
Supplier/Competitor numbe:354-6910
Air spring supplier/competitor: DINA
Supplier/Competitor numbe: A-8127-19
Air spring supplier/competitor: FIRESTONE:
Supplier/Competitor numbe: 6910; W013586910
Air spring supplier/competitor: GRANNING:
Supplier/Competitor numbe:1371
Air spring supplier/competitor: HDA
Supplier/Competitor numbe: PMABG-6910B
Air spring supplier/competitor: HENDRICKSON:
Supplier/Competitor numbe:45843-3; B-8768
Air spring supplier/competitor: INT’L/NAVISTAR:
Supplier/Competitor numbe:554783C1
Air spring supplier/competitor: LOAD GUARD
Supplier/Competitor numbe:SC2011
Air spring supplier/competitor: MASA
Supplier/Competitor numbe:227138412
Air spring supplier/competitor: PREVOST
Supplier/Competitor numbe:63-0173
Air spring supplier/competitor: R&S TRUCK& BODY
Supplier/Competitor numbe:1027405
Air spring supplier/competitor: RIDEWELL
Supplier/Competitor numbe:1003586910C; S-4512-C
Air spring supplier/competitor: SPRINGRIDE
Supplier/Competitor numbe:2B9-492
Air spring supplier/competitor: TAURUS
Supplier/Competitor numbe:AS218-6910
Air spring supplier/competitor: TRIANGLE
Supplier/Competitor numbe:4320
Air spring supplier/competitor: TRP
Supplier/Competitor numbe:AS69100
Air spring supplier/competitor: WATSON& CHALIN
Supplier/Competitor numbe:AS-0001
2B9-200 Air Spring Specifications and Parameters
Top Plate Hole/Stud Qty: 3
Top Plate Dia: 6.4
Top Plate C to C Diameter: 3.5
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 6.4
Bottom Plate C to C Diameter: 3.5
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 3.2
Max Height: 10.8
Air Fitting Size (in):1/4 OS
| Max OD @ 100 psi (Inches) | Design Load Range (Pounds) | Design Load Range (Inches) | Useable Stroke (Inches) | Approximate Isolation Percent For A Disturbing Frequency Of | |||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||
| 10.3 | 520-3615 | 8.0-9.0 | 8.0 | 92.0 | 97.8 | 98.7 | 99.5 |
| Force Available At Actuator Height Limit (Pounds) | Force Available At Compressed Height Limit (Pounds) | ||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi |
| 540 | 330 | 100 | 30 | 5435 | 4320 | 3160 | 2020 |

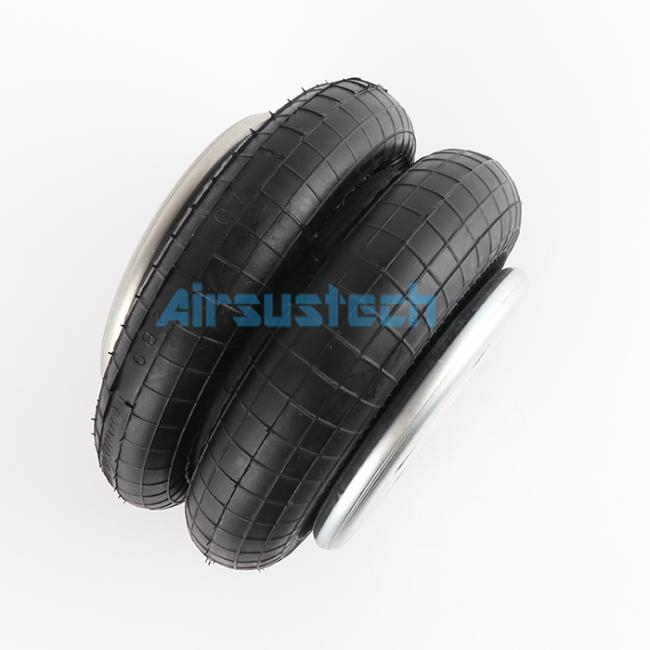

The related picture of 2B9-200 goodyear helper bag/air springs
