Firestone W013587145 Industrial Air Springs 2B14-354 578923353 Goodyear Air Up Lift Bag
Goodyear Air Up Lift Bag 2B14-354 578923353 Firestone W013587145 Industrial Air Springs
Item Details
Goodyear Part number: 2B14-354; 2B14 354; 2B14354
Flexmember Number: 578-92-3-353; 578 92 3 353; 578923353
Upper Plate Number:ASA-92-8-028; ASA 92 8 028;ASA928028
Lower Plate Number: ASA-92-6-013; ASA 92 6 013; ASA926013
Convolutions: Double
Other Reference
Air spring supplier/competitor: AUTOMANN
Supplier/ Competitor number:ABSP2B34R-7145
Air spring supplier/competitor:CONTI/ Contitech/ Continental
Supplier/ Competitor number: 64548; FD 530-22 374; FD 530-22374; FD 530 22 374; FD53022374
Air spring supplier/competitor:DAYTON
Supplier/ Competitor number:354-7145; 354 7145; 3547145
Air spring supplier/competitor:FIRESTONE
Supplier/ Competitor number: 7145; W013587145; W01 358 7145; W01-358-7145; WO13587145; WO1 358 7145; WO1-358-7145
Air spring supplier/competitor:NT’L/NAVISTAR
Supplier/ Competitor number:554796C1
Air spring supplier/competitor:LOAD GUARD
Supplier/ Competitor number:SC2016
Air spring supplier/competitor:MACK TRUCK
Supplier/ Competitor number:57QL239
Air spring supplier/competitor:RIDEWELL
Supplier/ Competitor number:1003587145C; S-4540-C
Air spring supplier/competitor:TRIANGLE
Supplier/ Competitor number:4374
Air spring supplier/competitor:TRP
Supplier/ Competitor number:AS71450
Air spring supplier/competitor: VOLVO
Supplier/ Competitor number:35203-0005; 35203-3204
2B14-354 Air Spring Specifications and Parameters
Top Plate Hole/Stud Qty: 4
Top Plate Dia: 11.3
Top Plate C to C Diameter: 6.25
Bottom Plate Hole Stud Qyt: 4
Bottom Plate Dia: 11.3
Bottom Plate C to C Diameter: 6.25
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 3.7
Max Height: 11.3
|
Usable Stroke |
Max Dia @ 100 psi In |
Force Available At Actuator Height Limit (Pounds) | Force Available At Compressed Height Limit (Pounds) |
Air Fitting Size (in) |
||||||
|
100 psi |
80 psi |
60 psi |
40 psi |
100 psi |
80 psi |
60 psi |
40 psi |
|||
|
7.8 |
15.1 |
3485 |
2715 |
2000 |
1240 |
13915 |
11070 |
8280 |
5480 |
1/4 OS |
|
Design Load Range (Pounds) |
Design Load Range (Inches) |
435 CPM |
870 CPM |
1160 CPM |
1750 CPM |
|
1595-11,255 |
7.5-9.5 |
93.0 |
98.1 |
99.0 |
99.5 |
578-92-3-353 bellow number orresponding other assembly models
2B14-355
2B14-356
2B14-359
2B14-360
2B14-366
2B14-367
2B14-473

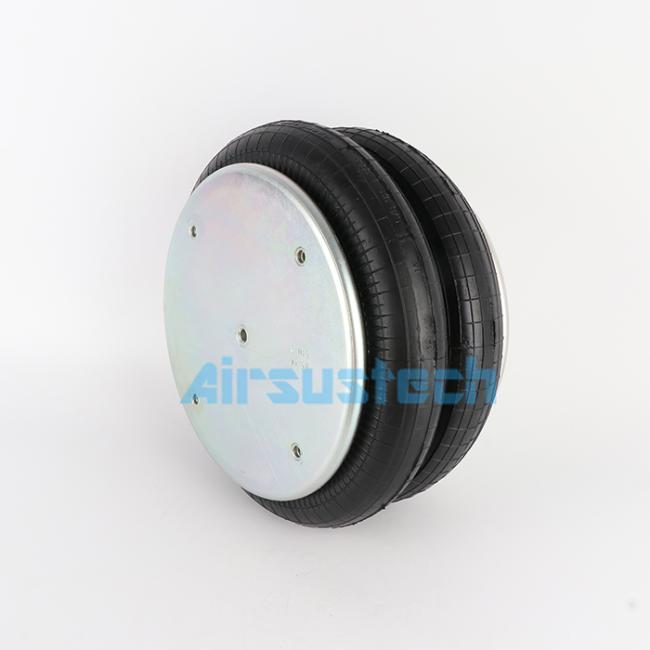

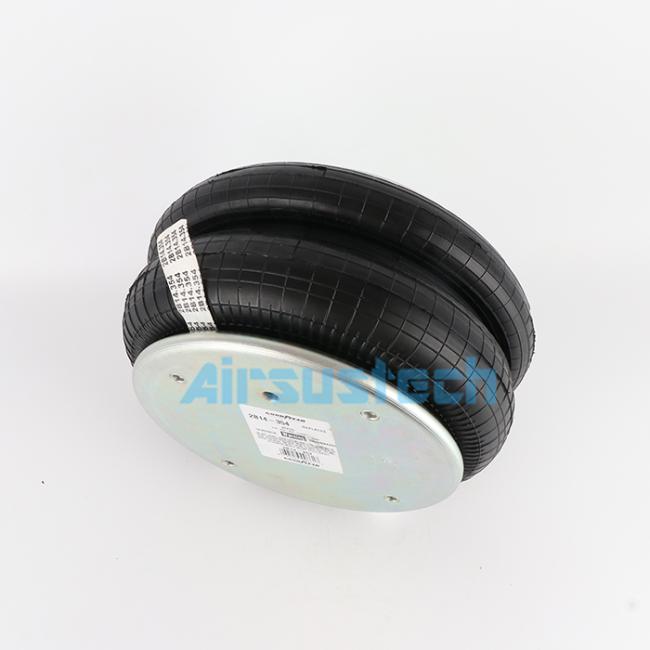

The related picture of 2B14-354 goodyear helper bag/air springs
