3B12-304 1/4 Triple Convoluted Air Bag Firestone W013588006 For Centering Machine
3B12-304 1/4 Triple Convoluted Airbag Firestone W013588006 Industrial Air Springs For Centering Machine
Item Details
Goodyear Part number: 3B12-304; 3B12 304; 3B12304
Goodyear Bellow Number: 578933100; 578-93-3-100; 578 93 3 100
Convolutions: Double
Type: Air Spring Assembly
| Assembly Number | Elastomer | Air Fitting | Bumper Included |
| 3B12-304 | NAT. Rubber | 1/4''-18 NPTF Offset 2.87'' | NO |
| 3B12-305 | NAT. Rubber | 3/4''-14 NPTF Offset 2.87'' | NO |
| 3B12-308 | NAT.Rubber | 1/4''-18 NPTF Centered | NO |
|
578933100 Flexmember Only |
NAT. Rubber | / | / |
Other Reference
AUTOMANN: ABSP3B22R-8006; ABSP3B22R8006
CONTI: 64568; FT 330-29 503; FT 330-29503; FT33029503; FT 330 29 503
FIRESTONE: 8006; W013588006; W01 358 8006; W01-358-8006; WO13588006; WO1 358 8006; WO1-358-8006
LOAD GUARD: SC2132
SUSPENSIONS INC.: 200620
TRIANGLE: 4430; 4503
TRP: ASP1710
3B12-304 Goodyear air spring technical parameter
Top Plate Hole/Stud Qty: 2
Hole/Stud: 3/8''-6UNC
Top Plate Dia: 9
Top Plate C to C Diameter: 6.2
Bottom Plate Hole Stud Qyt: 2
Hole/Stud: 3/8''-6UNC
Bottom Plate Dia: 9
Bottom Plate C to C Diameter: 6.2
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 4.8
Max Height: 18
Air Fittings: 1/4'' Offset
Bumper: Without
Girdle hoop: 2 pieces
| Usable Stroke | Max Dia @ 100 psi In | Force Available At Actuator Height Limit (Pounds) |
Force Available At Compressed Height Limit (Pounds) |
||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | ||
| 13.3 | 13.0 | 29.25 | 2165 | 1370 | 735 | 10165 | 7915 | 5855 | 3960 |
| Design Load Range (Pounds) | Design Load Range (Inches) | Approximate Isolation Percent For A Disturbing Frequency Of | |||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||
| 860-7305 | 11.0-15.0 | 94.0 | 99.1 | 99.6 | 99.6 |
About Rubber Air Spring
The concoluted air spring is composed of a steel ring and a rubber airbag. The steel ring fastens the rubber airbag to form a columnar body with indentations, which limits the lateral expansion of the airbag and prevents the joints from rubbing against each other.
Application
Centering machine
Tobacco Machinery
Analyzers
Secondary Lifting Equipment
Missile Transport Equipment
Aircraft
Modified Vehicle Suspensions

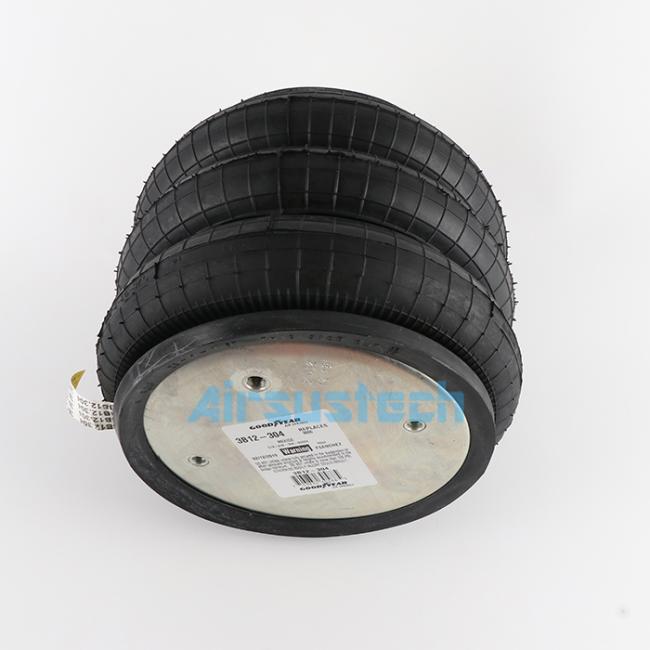

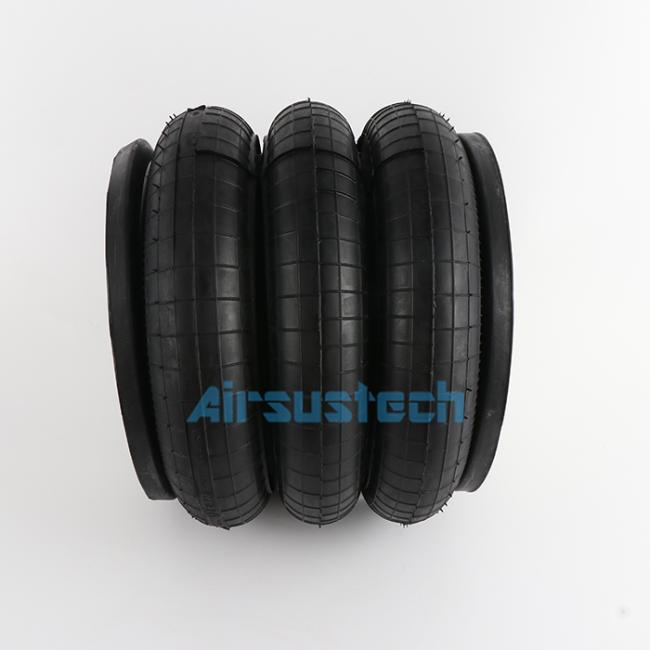

The related picture of 3B12-304 goodyear helper bag/air springs
