Triple Convoluted Industrial Air Spring No Bumper Goodyear 3B15-375 578933377
No Bumper Goodyear 3B15-375 578933377 Triple Convoluted Industrial Air Spring
Item Details
|
Goodyear Part number |
3B15-375; 3B15 375; 3B15375 |
|
Goodyear Bellow Number |
578933377; 578-93-3-377; 578 93 3 377 |
|
Convolutions |
Triple |
|
Type |
Air Spring Assembly |
3B15-375 Goodyear air spring technical parameter
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 4
Top Hole/Stud: 3/8-16UNC
Top Plate Dia: 11.3
Top Plate C to C Diameter: 6.25
Bottom Plate Hole Stud Qyt: 4
Bottom Hole/Stud: 3/8-16UNC
Bottom Plate Dia: 11.3
Bottom Plate C to C Diameter: 6.25
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 4.7
Max Height: 17.0
Air Fitting: 1/4, Offset 3.125''
Girdle hoop: 2 pieces
Usable Stroke:12.3
Max Dia@ 100 psi In:16.5
Force Available At Actuator Height Limit (Pounds)
100 psi: 6165
80 psi: 4775
60 psi: 3470
40 psi : 2225
Force Available At Compressed Height Limit (Pounds)
100 psi: 16650
80 psi: 13275
60 psi: 9765
40 psi: 6555
Approximate Isolation Percent For A Disturbing Frequency Of
435 CPM: 95.5
870 CPM: 98.8
1160CPM: 99.3
1750 CPM: 99.6
|
Assembly Number |
Elastomer |
Air Fittings |
Bumper Included |
|
3B15-375 |
NAT. RUBBER |
1/4'-18NPTF OFFSET 3.125'' |
NO |
|
3B15-376 |
NAT. RUBBER |
1/4'-18NPTF OFFSET 3.125'' |
YES |
|
3B15-377 |
NAT. RUBBER |
3/4'-18NPTF OFFSET 3.125'' |
NO |
|
3B15-378 |
NAT. RUBBER |
3/4'-18NPTF OFFSET 3.125'' |
YES |
|
578933377 Flex Member Only |
NAT. RUBBER |
/ |
/ |
Industrial Applications
Air springs for gate valve operators, pneumatic tires for forming presses, airbags for cable tensioners, air cushions for pipe threading machines, modified vehicle suspensions, air suspensions for floating bridge vehicles, pneumatic tires for dehydration machines, airbags for press rollers, airbags for air-drying tanks, paper sizing Airbags for presses, airbags for gluing machines, calender airbags, precision instrument test field airbags, pneumatic secondary lift airbag, etc

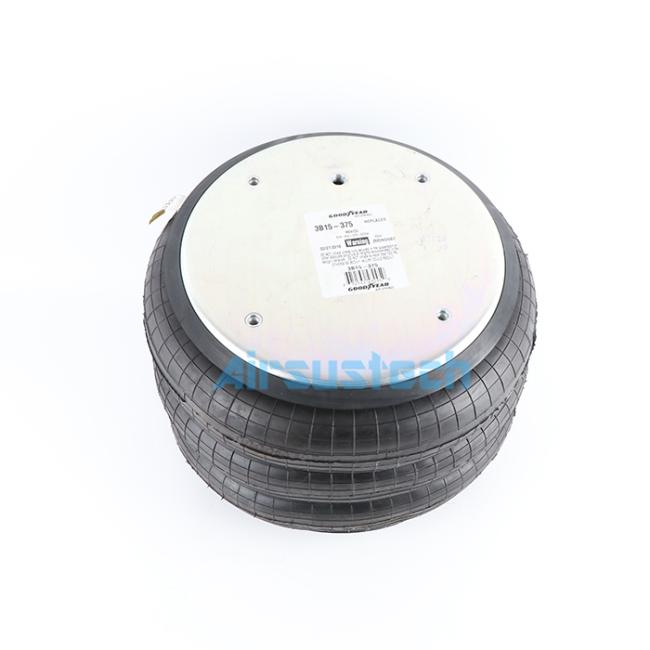

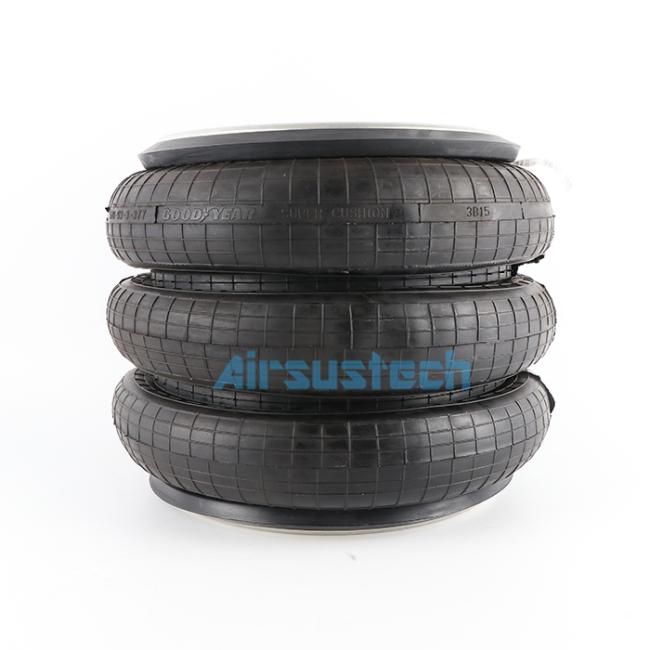

The related picture of 3B15-375 goodyear helper bag/air springs
