50mm Contitech Air Spring 67962 FS412-10DSG1/2 BSPP One Convoluted Pneumatic Industrial Air Actuator
Contitech 67962 FS412-10DSG1/2 BSPP Single Convoluted Pneumatic Industrial Air Actuator
Product Info
Continental: FS 412-10 DS; FS412-10DS; FS41210DS
Continental: FS 412-10; FS412-10; FS41210
Continental: FS 412-10 DS G1/2; FS412-10DSG1/2; FS412 10DSG1/2
Also Known As: 67962
Other reference
Air spring supplier/competitor: Firestone
Supplier/Competitor number: 12 X 1 W01-R58-4060; 12 X 1 W01 R58 4060; 12 X 1 W01R584060; WO1-R58-4060; WO1 R58 4060; WO1R584060
Firestone Style: 12" x1; 12"x1; 12x1
Air spring supplier/competitor: Dunlop FR
Supplier/Competitor number: 12"x1 DUNLOP SP 1640
Air spring supplier/competitor: Dunlop UK (Pneuride)
Supplier/Competitor number: PNP 30552 01 20 /PNP305520120
Air spring supplier/competitor: Norgren
Supplier/Competitor number: M/31121 / M 31121 1 M31121
Nominal (inch) x convolutions: 12" x1/ 12"x1/12x1
Air spring supplier/competitor: Parker
Supplier/Competitor number: 9109044
Specifications and Detailed Technical Parameters: Continental FS 412-10 DS
Top plate diameter: 260mm
Bottom plate diameter: 260mm
Hole/Studs on top plate: 4pcs ×M10
Hole/Studs on bottom plate: 4pcs×M10
Air Inlet: G1/2, Centered
Max. rubber bellow diameter: 330mm
Min. Height: 50mm
Max. Height: 150mm
Girdle hoop: No
M10: max. 25 Nm
G1/2: max. 25 Nm
Min. pressure 0 bar
Return force to min height ≤ 200 N
Overall weight 5.44 kg
Vibration isolation – dynamic characteristic values
Design height H: recommended 120mm, minimum 100mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 11.4 | 15.3 | 19.2 | 23.2 | 27.1 | 31.1 | 5.5 |
| Spring rate [N/mm] | 290 | 372 | 451 | 531 | 612 | 689 | |
| Natural frequency [Hz] | 2.5 | 2.5 | 2.4 | 2.4 | 2.4 | 2.4 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H [mm] | 120 | 11.2 | 15.1 | 18.9 | 22.9 | 27 | 31.4 | 5.5 |
| 100 | 13.9 | 18.5 | 23.4 | 28.1 | 33.1 | 38.3 | 4.6 | |
| 80 | 16.5 | 22.1 | 27.6 | 33.4 | 39.1 | 45 | 3.4 | |
| 60 | 18.5 | 24.8 | 31 | 37.2 | 43.6 | 50 | 2.2 | |
Applications
Automatic grippers
Air bag jacks
Lifts,
Printing machines
Valves for water channels
Elevators
Tensioning devices

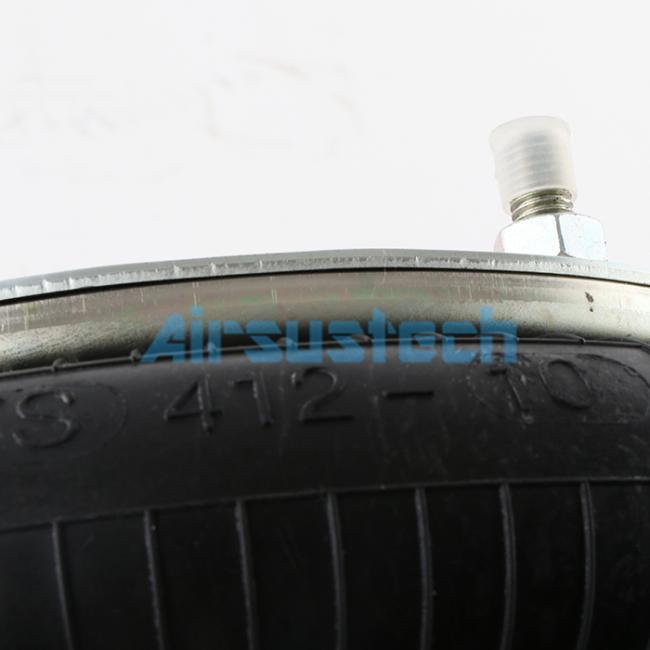

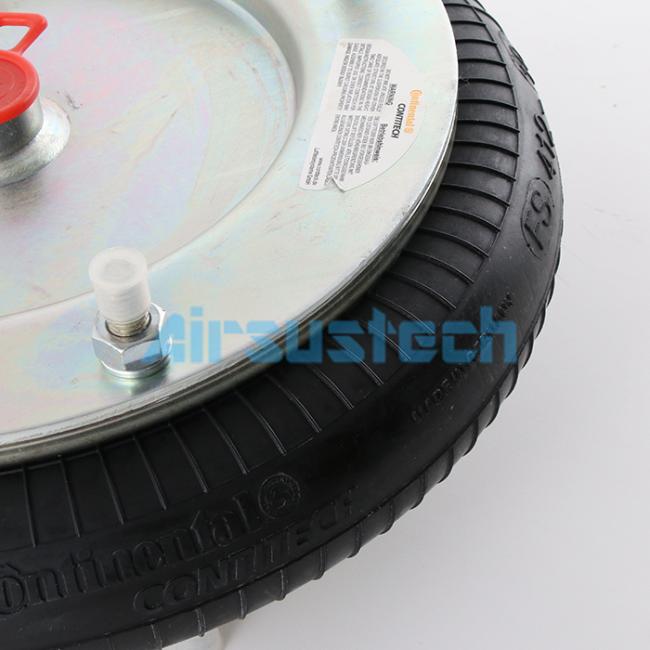

The related picture of FS 412-10 DS G1/2 air spring/air shocks/air bags/cylinders/air ballons
