Firestone W01-358-7447 W013587447 Suspension Air Springs For HENDRICKSON NA 1827

Double Convoluted Firestone W01-358-7447 W013587447 Suspension Air Springs For HENDRICKSON NA 1827


Cross Reference

Firestone Style 22-1.5
Air spring supplier/competitor: Firestone
Supplier//competitor: W01-358-7447; W01 358 7447; W013587447;WO1-358-7447; WO1 358 7447; WO13587447

Air spring supplier/competitor: HENDRICKSON
Supplier//competitor:  NA 1827;  NA1827

Goodyear 2B12-324 / 2B12-324 / 2B12324

Contitech FD330-30 340 / FD 330-30 340 / FD330-30340

EZ RIDE 8030150

HENDRICKSON TRAILER S6242

SILENT DRIVER


Specifications and Technical Parameters


Convolution: Double

Top plate mounting threads qty: 2pcs

Bottom plate mounting threads qty: 2pcs

Top plate diameter: 9.00''

Bottom plate diameter: 9.00''

Min. Height: 3.5''

Max. Height: 13.5''

Max. OD: 13.5''

Rubber bumper: With

HS Code: 8708809000

Girdle Hoop: One piece

Material: Rubber and Iron

Temperature: -30~+70℃

Sample: Available

Bumper: With

Two Ply Bellows

GUOMAT convoluted Air springs are available in three styles–single, double, or triple convoluted.

To identify the exact style and part number to replace your current air spring, you need to identify the type of bellows, bead plates, and attaching hardware used, as well as determining whether the spring has an internal bumper. The steps below apply to all convoluted air spring styles (single, double, or triple).

1. Bellows Number
Identifies the bellows, normally molded directly.
2. Assembly Order Number (AON)
Located on the label adhered to the bead plate. This number is used for ordering purposes.
3. Cross Section View
Includes dimensional information in mm for uninflated diameter and collapsed height, as well as hardware details. A bumper, shown
in black, and bumper drawing number is also referenced, if applicable.
4. Bead Plate Top View
Identifies dimensional information in mm, mounting attachments, and the internal number for bead plate, stamped on bead plate top.
5. Bead Plate Bottom View
Identifies dimensional information in mm, mounting attachments, and the internal reference number for bead plate, stamped on bead plate bottom.
6. Assembly Weight
Total weight of the assembly in kg.

Other 22D1.5 Style Firestone air spring

Application

Chassis dynamometer lift airbags

Auto maintenance airbags

Car speedometer inspection table airbags

Leather pull software airbags

Shock pull softener airbags

Jumping mouse airbags

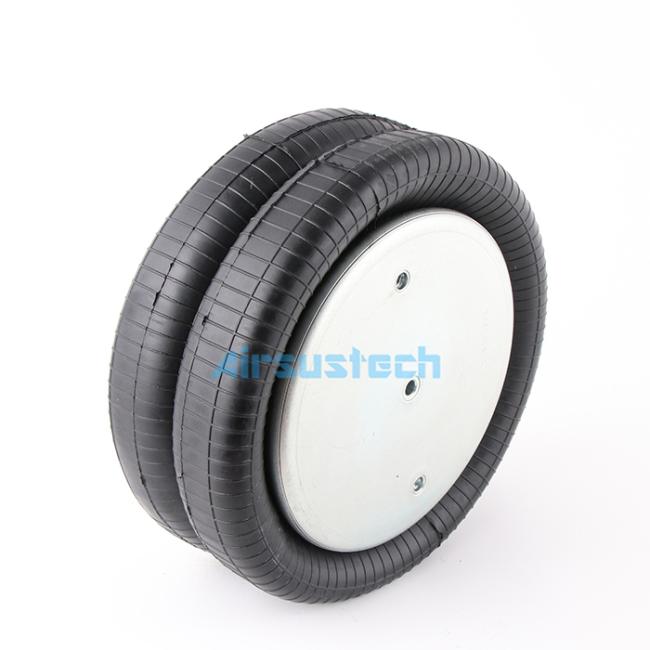

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
