W01-358-7444 Style 22-1.5 Firestone Airide Air Spring Industrial Double Convoluted Air Actuator
Firestone Airide Air Spring W01-358-7444 Style 22-1.5 Industrial Double Convoluted Air Actuator
Cross Reference
Firestone style 22-1.5
W01-358-7444; W01 358 7444; W013587444; WO1-358-7444; WO1 358 7444; WO13587444
Goodyear Part Number:2B12-416; 2B12416; 2B12 416
Goodyear Bellows Number:578-92-3-315; 578923315; 578 92 3 315
Hendrickson Trailer Number:S-9830; S9830
Triangle Part Number:4369
Triangle Bellows Number:6328
UPC: 767555004845
ContiTech: FD33030369
|
Blind nuts, 1/4 NPT |
W01-358-7444 |
|
Blind nuts, 1/4 NPT, rubber bumper |
W01-358-7473; W01 358 7473; W013587473 WO1-358-7473; WO1 358 7473; WO13587473 |
|
Blind nuts, 3/4 NPT |
W01-358-7442; W01 358 7442; W013587442 WO1-358-7442; WO1 358 7442; WO13587442 |
|
Blind nuts, 1/4 NPT(centered) |
W01-358-7443; W01 358 7443; W013587443 WO1-358-7443; WO1 358 7443; WO13587443 |
|
Rubber bellows only |
W01-358-0259; W01 358 0259; W013580259 WO1-358-0259; WO1 358 0259; WO13580259 |
|
Countersunk steel bead rings, 1 5/8 bolts, nuts, washers |
W01-358-7480; W01 358 7480; W013587480 WO1-358-7480; WO1 358 7480; WO13587480 |
Specifications and Technical Parameters
Top plate blind nuts: 2pcs× 3/8-16
Bottom plate blind nuts: 2pcs×3/8-16
Screw center distance: 6.20''
Air fittings/Air inlet/Air hole: 1/4'' NPT Offset
Top cover plate diameter: 9.00''
Bottom cover plate diameter: 9.00''
Bead plate
Two ply Bellows
Without bumper block
One piece of girdle hoop/ belt loop
Single Convoluted/ Convolution Air Spring
Rubber and Steel Material
Double Convolution
2-Ply Bellows
Style #22-1.5
Blind Nuts

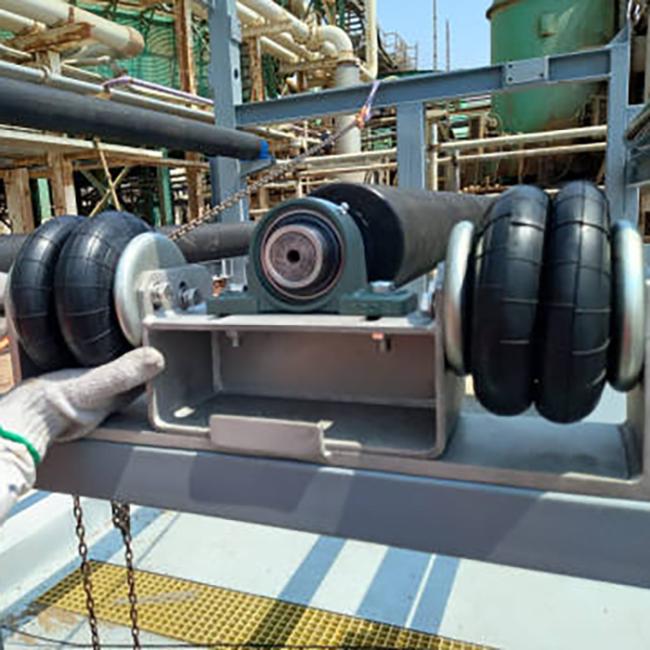

Air spring cab be used in industrial equipments
The function of the air spring The air spring, as the name suggests, its spring medium is common air, and the process of realizing the spring is to compress the gas to realize the effect of the spring. The spring strength of the air spring is related to the increase of the load. The increase of the load will increase the air pressure of the loading capacity, thus increasing the elastic strength. Conversely, as the load decreases, the strength of the spring will also reduce the air pressure in the load capacity, so the air spring has a good performance in terms of variable strength characteristics.
The air spring is applied to industrial equipment. The strength of the air spring can be adjusted at any time according to the needs of the industry. Using the change of the internal pressure, it has a variety of bearing capacities: the second advantage is that it has nonlinear characteristics. The strength of the spring will change due to the change of the load, so no matter what load is selected, its fundamental frequency will not change. The third advantage is that it has very good sound insulation performance, which is also closely related to its constant frequency.

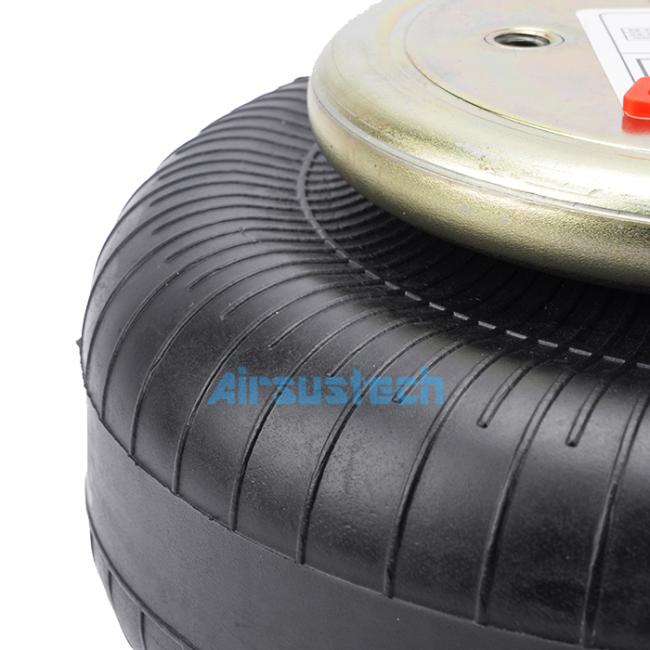

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
