Single Convolution Firestone Air Bags Replacement W01-M58-6170 116B1 2-PLY Standard Cord 1/4 BSP

W01-M58-6170 116B1 2-PLY Standard Cord 1/4 BSP Single Convolution Air Bags Replacement


Cross Reference

FIRESTONE: W01M586170
FIRESTONE: W01 M58 6170
FIRESTONE: W01-M58-6170
FIRESTONE: WO1M586170
FIRESTONE: WO1 M58 6170
FIRESTONE: WO1-M58-6170
FIRESTONE: w01m586170
FIRESTONE: w01 m58 6170
FIRESTONE: w01-m58-6170
FIRESTONE: wo1m586170
FIRESTONE: wo1 m58 6170
FIRESTONE: wo1-m58-6170


Specifications and Technical Parameters

Firestone 116-1, 116B1, 116B-1

Two ply Bellows

Air inlet: 1/4BSP

Blind nuts on top plate: 2pcs × M8×1.25

The screw center on top plate: 70mm

Blind nuts on bottom plate: 2pcs × M8×1.25

The screw center on bottom plate: 70mm

Top plate diameter: 135mm

Bottom plate diameter: 135mm

Max. OD at 7 bar: 244mm

Girdle hoop: Without

Bumper block/ Rubber bumper: No


Other model replacement we could offer

Firestone 116 Style, two ply bellows

Style 117, High Strength Construction

Application

The air spring is an elastic element that uses the recoil force of air compression in the rubber airbag as the elastic recovery ability. Air springs are widely used in transmission equipment, electronic products, instrumentation equipment, machinery manufacturing and other industries such as ships, airlines, and industrial production due to their excellent shock absorption and vibration absorption characteristics.

Because the air spring uses gas as the elastic medium, the rolling friction force is small when it shrinks, and the vibration damping performance is good. In addition, because air and plastic are relatively poor at transmitting sound, air springs have very good sound attenuation capabilities.

At the same time, the bearing capacity can be adjusted according to the inflation pressure in the airbag. For the same air spring, the pumping pressure can be adjusted to meet the needs of different bearing capacity.

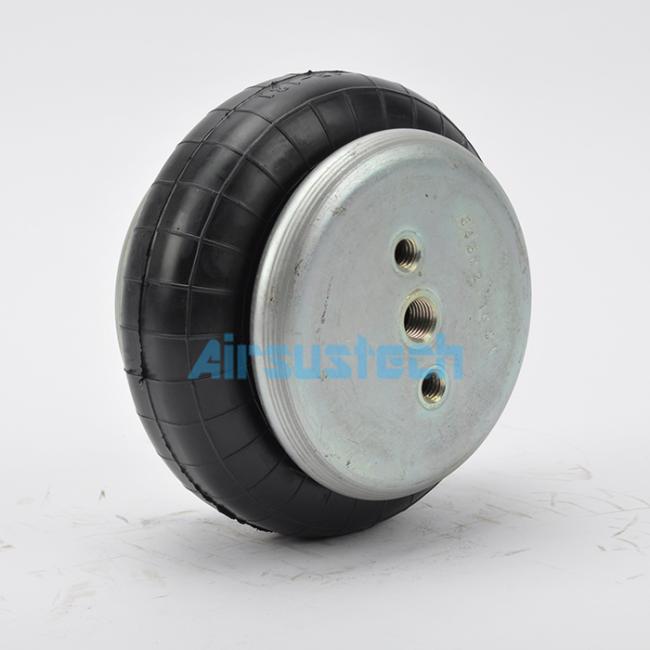

The picture of air spring
