Blind nuts 1/4 BSP W01M586008 WO1M586008 Single Convolution Industrial Air Springs For Sawmill Machinery


Cross Reference

FIRESTONE: W01M586008
FIRESTONE: W01 M58 6008
FIRESTONE: W01-M58-6008
FIRESTONE: WO1M586008
FIRESTONE: WO1 M58 6008
FIRESTONE: WO1-M58-6008
FIRESTONE: w01m586008
FIRESTONE: w01 m58 6008
FIRESTONE: w01-m58-6008
FIRESTONE: wo1m586008
FIRESTONE: wo1 m58 6008
FIRESTONE: wo1-m58-6008

Specifications and Technical Parameters

WO1-M58-6008, 19B Style AirSpring, Type 3 Bead Plate, (2) M8 Blind Nuts On 157MM Centers, 1/4" BSP Offset Port

Two ply Bellows

Air inlet: 1/4BSP

Blind nuts on top plate: 2pcs × M8×1.25

The screw center on top plate: 157mm

Blind nuts on bottom plate: 2pcs × M8×1.25

The screw center on bottom plate: 157mm

Top plate diameter: 229mm

Bottom plate diameter: 229mm

Max. OD at 7 bar: 328mm

Girdle hoop: Without

Bumper block/ Rubber bumper: No


Other 19 Style Firestone replacement we could offer

Air spring can be used in sawmill machinery

1. The stiffness of the air spring varies with the load, independently, and the spring height, load capacity and spring stiffness are widely selected, so that the spring device has ideal characteristics;
2. The height control valve is used to properly control the height of the air spring according to the use, and maintain a certain height when the spring load changes.
3. High-frequency vibration isolation and sound insulation performance of the air spring. The air spring is composed of air and rubber, and the internal friction is small, not because of the inherent vibration of the spring itself, which can isolate high-frequency vibration. Plus, the air springs have no metal contacts, so the sound insulation is pretty good.

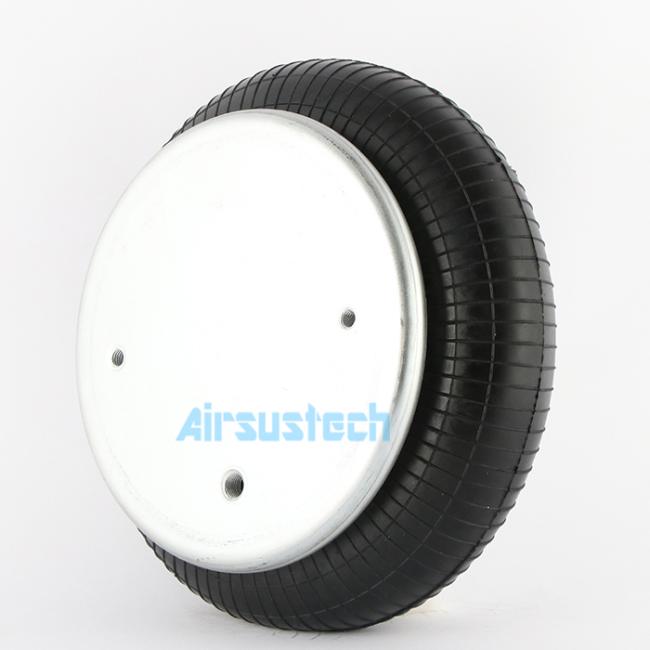

The picture of air spring

FAQ


Q1. How can I pay the the goods?
A: T/T, Western Union, Paypal or Others.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?
A: The Specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
