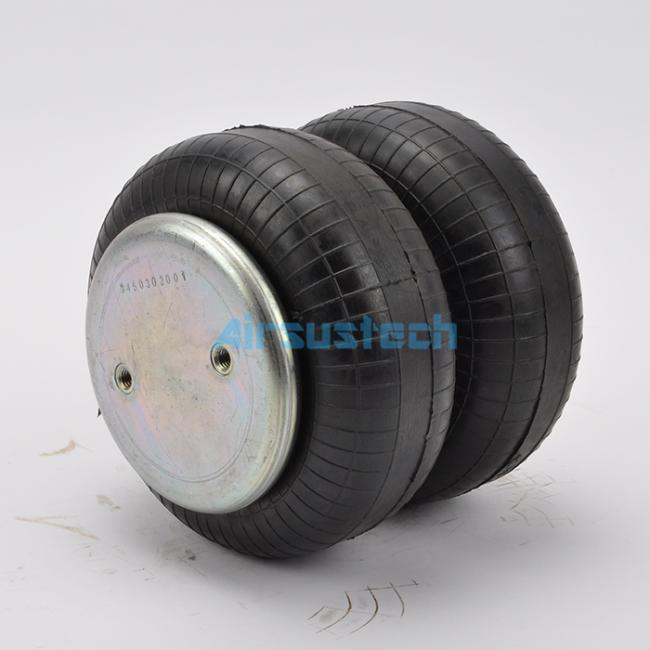

Industrial Machines 224C Style Air Spring W01-M58-6400 Double Bellows Convoluted Air Actuator
Industrial Machines 224C Style AirSpring W01-M58-6400 Double Bellows Convoluted Air Actuator
Cross Reference
Firestone Style 224; 224C
Firestone W01-M58-6400
Firestone W01 M58 6400
Firestone W01M586400
Firestone WO1-M58-6400
Firestone WO1 M58 6400
Firestone WO1M586400
Firestone w01-M58-6400
Firestone w01 M58 6400
Firestone w01M586400
Firestone wo1-M58-6400
Firestone wo1 M58 6400
Firestone wo1M586400
Specifications and Technical Parameters
|
Two ply Bellows |
|
|
Type |
Metric |
|
Air inlet |
1/4 BSP |
|
Blind nuts on top plate |
2pcs × M8×1.25 |
|
The screw center on top plate |
70mm |
|
Blind nuts on bottom plate |
2pcs × M8×1.25 |
|
The screw center on bottom plate |
70mm |
|
Top cover plate diameter |
135mm |
|
Bottom cover plate diameter |
135mm |
|
Max. OD at 7 bar |
203mm |
|
Min. Height |
71mm |
|
Max. Height |
229mm |
|
Girdle hoop |
Without |
|
Bumper block/ Rubber bumper |
One piece |
Other 224C Style
Rubber Bellows only W01-358-5101; W01 358 5101; W013585101; WO1-358-5101; WO1 358 5101; WO13585101
Countersunk steel bead ring W01-358-3407; W01 358 3407; W013583407; WO1-358-3407; WO1 358 3407; WO13583407
Other models
FS 530-11CI G1/4; 61359; W01-M58-6101; 113; 113B; 578-91-3-352
FS 530-11CI G3/4; 63205; W01-M58-6100; 113; 113B; 1B14-371; 36; YI14-371
FS530-14 339; 64521; W01-358-7112; 113-1; 113B-1; 1B14-358; 578-91-3-352
FS 530-14 442; 64523; W01358-7103; 113-1; 113B-1; 1B14-350; 578-91-3-351
FS 530-14 446; 64524; W01-358-7104;113-1; 113B-1; 1B14-351; 578-91-3-351
FS 530-14 447; 64525; W01-358-7105; 113-1; 113B-1; 1B14-351; 578-91-3-351
FS 530-14 538; 64529; W01-358-7094; 113-1; 113B-1
FS 530-14CI G1/4; 60435; W01-M58-6371; 113-1; 113B-1; 578-91-3-352
FS 530-14CI G3/4; 61360; W01-M586369; 113-1; 113B-1; 1B14-372; 578-91-3-352; 86; YI1B-372
Application
Waste incineration equipment air bag
Mining equipment air bag
Mold Separator Air Mold Pad
Roller Airbag
Web Assembly Machine Airbag
Pneumatic secondary lift airbag
Gate Valve Operator Air Spring
Forming press pneumatic tire
Cable Tensioner Airbag
Airbag picture
