Triple Bellow Industrial Air Springs Firestone W01-M58-6136 For Brick Manufacturing

Machines For Brick Manufacturing Industrial Air Springs Firestone W01-M58-6136 WO1M586136 Triple Bellow

Cross Reference

Firestone Style 333
Firestone W01-M58-6136
Firestone W01 M58 6136
Firestone W01M586136
Firestone WO1-M58-6136
Firestone WO1 M58 6136
Firestone WO1M586136
Firestone w01-M58-6136
Firestone w01 M58 6136
Firestone w01M586136
Firestone wo1-M58-6136
Firestone wo1 M58 6136
Firestone wo1M586136


Specifications and Technical Parameters

Type: Two ply Bellows

Top plate blind nuts qty: 4pcs

Bottom plate blind nuts qty: 4pcs

Convolutions: Triple / Three

Girdle hoop/Belt loop: 2 piece

Bumper Block: Without

Application: Industrial Machines Or Others

HS Code: 8708809000

Sample: Available

Packing: Strong cartons

Shipping ways: By express, By air, By sea, Or others

Other 333 Style Firestone replacement and Cross reference

Air spring can be used in machines for brick manufacturing

Because the concoluted air spring has the characteristics of keeping the height unchanged, the natural vibration frequency unchanged under any load, absorbing high-frequency vibration, good sound insulation performance, and long life, when the brick machine mold vibrates, the spring is inflated and can Effective vibration reduction and noise reduction. When the punch is pressurized for the second time, the spring exhausts, so that the mold and tray of the brick machine are lowered to a fixed position, which further ensures the height of the cement brick machine and also meets the requirements of the punch to increase the pressure. Require. Due to the small elastic modulus of the rubber spring, a large amount of deformation can be obtained. It has high internal resistance, has a good effect on absorbing high-frequency vibration and sound insulation, and can withstand multi-directional forces, so that the exciting force of the brick machine mold can be fully obtained. The performance of the brick making machine makes the internal and surface quality of the cement brick making machine better, and at the same time it can better reduce vibration and noise. After the air spring is inflated, the mold of the brick machine is raised, so that the tray and the mold are closely connected together, which effectively eliminates the flash of the block.

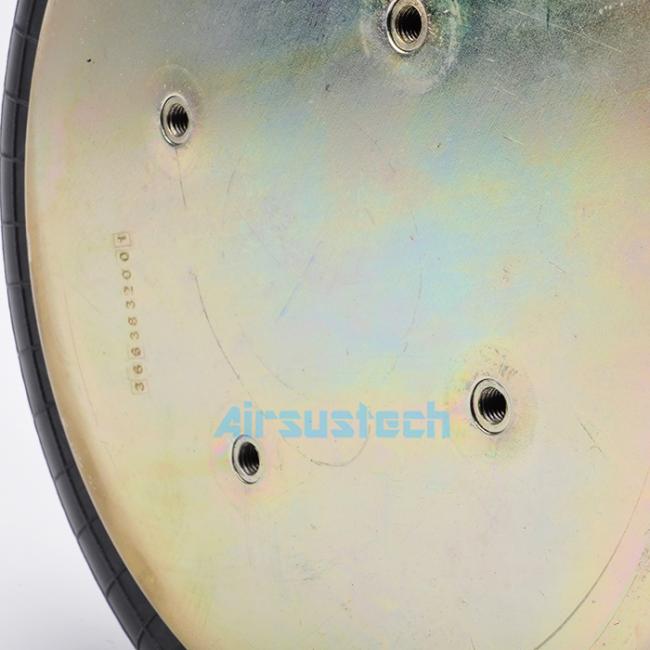

Air Bag Picture
