116 93027 Air Spring Single Convoluted 1/4NPTF 135mm Bead Plate Rubber Air Bag
116 93027 Torpress Air Spring Single Convoluted 1/4NPTF 135mm Bead Plate Rubber Air Bag
Cross Reference
Air spring supplier/competitor: Torpress
Supplier number: 93027
Model 116, T116
Air spring supplier/competitor: Firestone
Supplier number: W01-358-7564; W01 358 7564; W013587564; WO1-358-7564; WO1 358 7564; WO13587564
Firestone style 116
Air spring supplier/competitor: Goodyear
Supplier number: 1B8-550; 1B8 550; 1B8550
Air spring supplier/competitor: Contitech
Supplier number: FS120-10; FS 120-10 CI; FS12010; FS 120 10
Specifications and Detailed Technical Parameters
|
Max. OD |
230mm |
|
Height |
50-140mm |
|
Air inlet |
1/4NPTF, Centered |
|
Blind nuts on bottom plate |
2pcs x 3/8-16UNC |
|
The screw center distance on bottom plate |
70mm |
|
Blind nuts on top plate |
2pcs x 3/8-16UNC |
|
The screw center distance on top plate |
70mm |
|
Top bead plate diameter |
135mm |
|
Bottom bead plate diameter |
135mm |
|
Rubber bumper |
Without |
|
Girdle hoop/ Belt loop |
Without |
|
HS Code |
8708809000 |
|
Material |
Rubber and Steel |
|
Convolutions |
Single |
Other Single Convoluted Torpress air spring replacement we could offer
| Model | Standard code | Connection | Max OD |
Min. Height |
Max. Height |
Static Height |
Effec. Area |
Cap. | Freq. | Stiffness |
| 16 | 93029 | P1 | 153 | 46 | 91 | 70 | 86 | 600 | 250 | 21 |
| 131 | 94047 | P1 | 165 | 50 | 110 | 85 | 95 | 665 | 185 | 14.5 |
| 110 | 93113 | P1 | 210 | 51 | 151 | 101 | 180 | 1260 | 154 | 18.8 |
| 110 | 88540 | F1 | 210 | 45 | 145 | 95 | 180 | 1260 | 154 | 18.8 |
| 110 | 88820 | F1 | 210 | 45 | 145 | 95 | 180 | 1260 | 154 | 18.8 |
| 116 | 93027 | P1 | 231 | 46 | 152 | 100 | 180 | 1260 | 165 | 20.5 |
| 19 | 94016 | P2 | 325 | 51 | 151 | 127 | 450 | 3150 | 158 | 41.5 |
| 19 | 94014 | F2 | 325 | 43 | 143 | 127 | 450 | 3150 | 158 | 41.5 |
Air spring/ air bag usage
Precision machinery manufacturing is one of the application fields of industrial air spring shock absorbers. In the process of precision machinery manufacturing, it is necessary to process and adjust the machinery with high precision, so the requirements for the shock absorption effect of the machinery are also very high. The industrial air spring shock absorber has the characteristics of good shock absorption effect, convenient adjustment and long service life, which can effectively guarantee the shock absorption effect and processing accuracy of precision machinery.

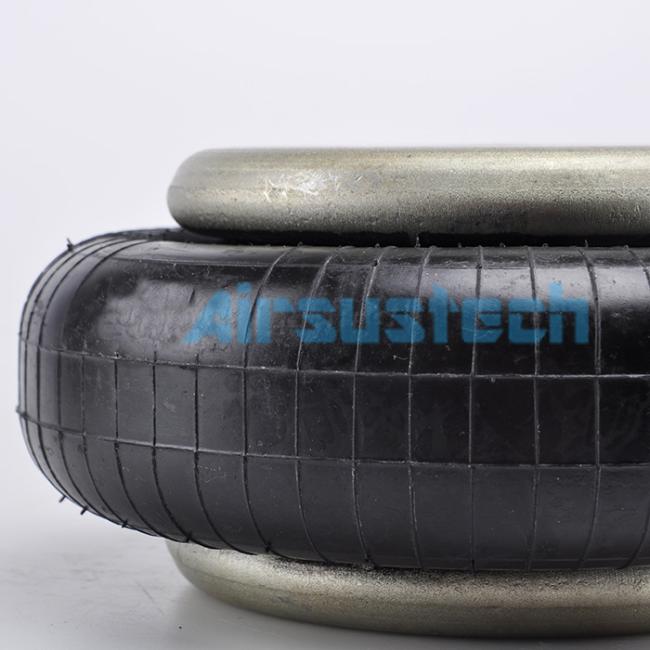

Product Picture
