22C-1.5 W01-358-6789 Firestone Contitech Suspension Air Springs FD 330-30 512 Double Convoluted

Cross Reference

Firestone style 22C-1.5; 22-1.5
Firestone W01-358-6789 / W01 358 6789 / W013586789
Firestone WO1-358-6789 / WO1 358 6789 / WO13586789
Firestone wo1-358-6789/ wo1 358 6789 / wo13586789

Contitech FD 330-30 512 / FD330-30 512 / FD330-30512 / FD 330 30 512 / FD33030512

HENDRICKSON
AUX.
001503

Specifications and Technical Parameters

Type: Suspension air springs
Compressed Height: 3.50"
Top Plate Width: 9.00"
Base Width: 9.00"
Bellows #: 22-1.5
Type: Double Bellows
Max. Height: 13.5''
Max. OD: 13.5''
Top plate studs qty: 2pcs
The screw center distance on top plate: 6.20''
Bottom plate blind nuts qty: 4pcs
The screw center distance on bottom plate: 4.38''
Rubber bumper: With
Girdle hoop: 1pcs
Delivery time: 3-8 working days
After-sales service: 1. Strict inspection during production 2. Re-check the product before shipment to ensure our packaging is in good condition 3. Track and receive feedback from customers


Other Firestone 22-1.5 air bag/ suspension model number we could provide

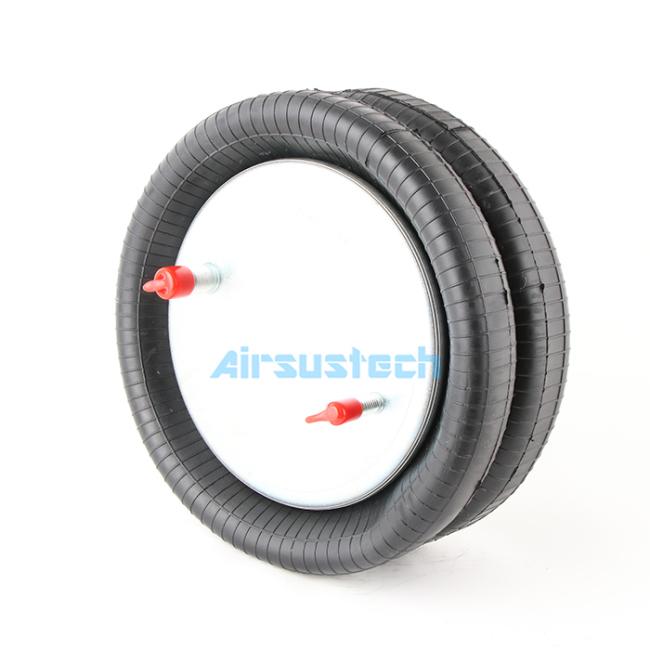

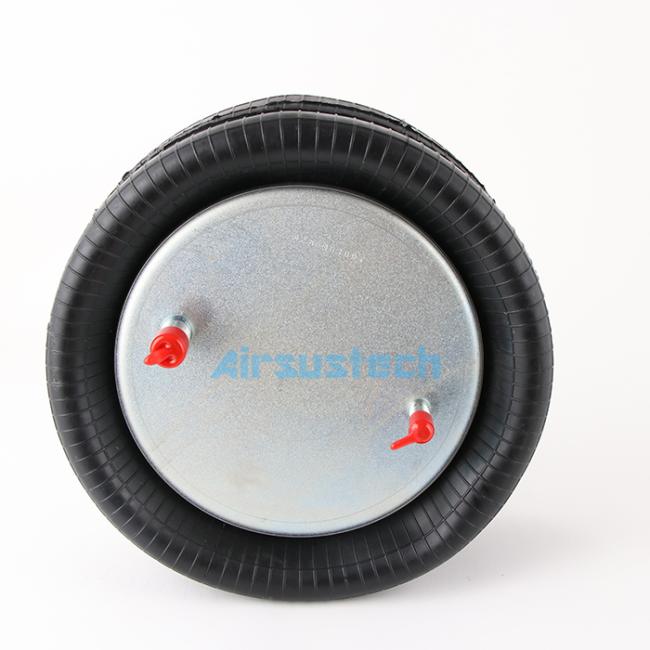

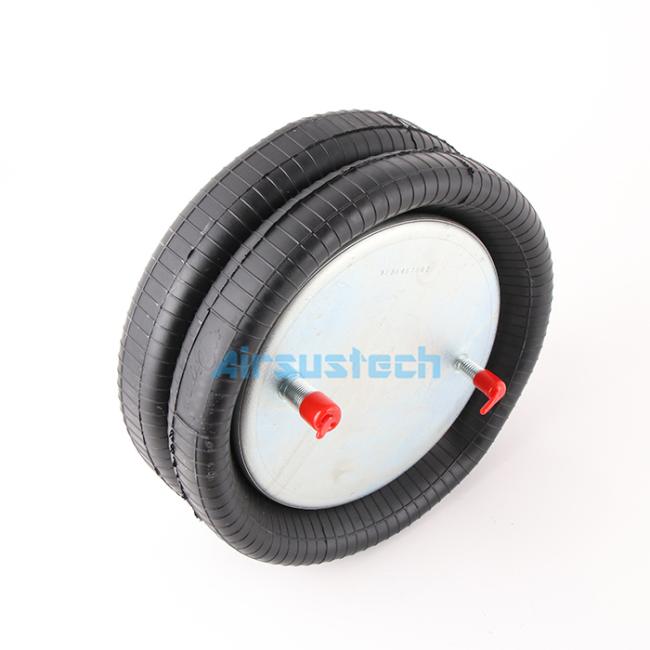

The picture of AIRSUSTECH suspension air springs/ industrial air springs
