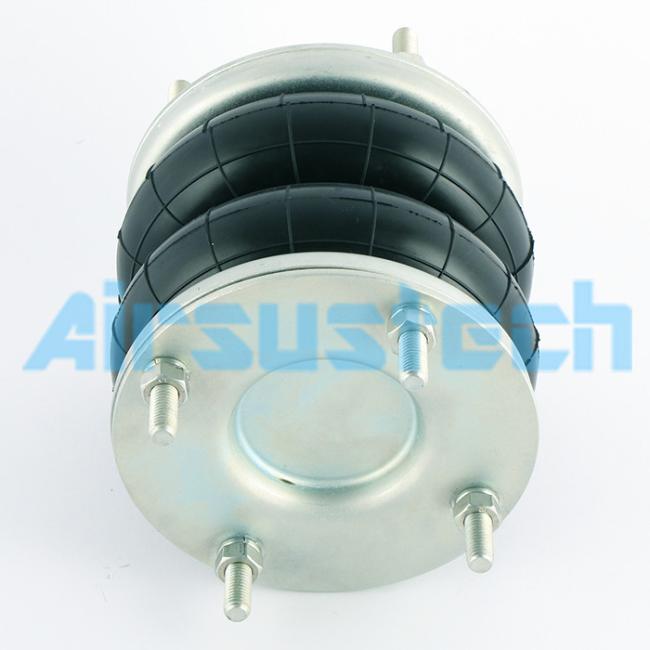

115 Mm Stroke 2B6X2T Contitech Air Spring For Heavy Duty Suspension Systems FD 76-14 DS
Product Description:
Get high-quality OEM air actuators for your industrial needs from Airsustech! We offer the 2B6X2T and 6X2 Cross models, both designed to meet industry standards and provide efficient operation.
Looking for reliable air actuators? Look no further than ContiTech! We offer multiple options, including the FD 76-14 1/2 M10, FD 76-14 DS G1/2, FD 76-14 DS G1/2 CR, and FD 76-14 DS CR G1/2. You can also opt for the FD76-14DSCR, FD7614DSCR, or FD7614 bellow models for added versatility.
Need a high-performance air actuator? Norgren has got you covered with the M/31062, M 31062, and M31062 models. With their precision engineering and advanced technology, they offer reliable and efficient operation.
Nominal Ø (inch) x Convolution Air Actuators
Our nominal Ø (inch) x convolution air actuators come in the size of 6" x 2, 6"x2, and 6x2, offering superior performance and durability. Trust our quality and efficiency to enhance your industrial operations.
Dunlop FR and UK (Pneuride) Air Actuators
Choose from our selection of quality Dunlop air actuators, including the SP1482 for FR models and PNP 30550 01 12 or PNP30550 0112 for UK (Pneuride) models. These double convoluted air springs (2B180-115 D185) provide superior strength and stability for your industrial needs.
Features:
- Product Name: Contitech Air Spring
- Air Ride Spring
- Contitech Air Actuators
- Air Suspension Bag
- MIN Height: 75 Mm
- Max Height: 190 Mm
- Min. Height (force at p = 8 bar): 14,5 KN
- Max. Diameter: 175 Mm
- Quality Assurance: 12 Months
Technical Parameters:
| Product Name | Contitech Air Spring |
|---|---|
| Mounting Type | With Removable Connecting Parts |
| Pressure | 2 Bar - 8 Bar |
| Convolution Number | Two / Double |
| Installation Space Required | 190 Mm |
| Stroke | 115 Mm |
| Design Height H | Recommended 155mm, Minimum 145mm |
| MIN Height | 75 Mm |
| Maximum Pressure | 8 Bar |
| Model No | 2B6X2T / 6X2 |
| Max. Diameter | 175 Mm |
| Key Features | Pneumatic Air Spring, Air Suspension Bag, Air Bellow Sleeve |
Packing and Shipping:
Contitech Air Spring is carefully packaged to ensure safe transportation and delivery to our customers. Each air spring is individually wrapped and placed in a sturdy box or carton to prevent any damage during transit. The packaging also includes clear labeling and instructions for proper handling and installation.
We offer various shipping options to meet the needs of our customers. Our air springs can be shipped via air, sea, or ground transportation depending on the destination and urgency of the order. We work with reliable shipping carriers to ensure timely and secure delivery of our products.
