Product Description:

Air springs are designed for use in a variety of applications, including heavy-duty trucks, trailers, buses and other vehicles that require a reliable and effective suspension system.

The minimum height of the 8X3 air spring is 100 mm, which means it can effectively absorb the impact and vibration of the road surface, providing the driver and passengers with a more comfortable and stable riding experience. Air springs are made from high-quality rubber material and are designed to withstand the demands of heavy use and extreme conditions.

Features:

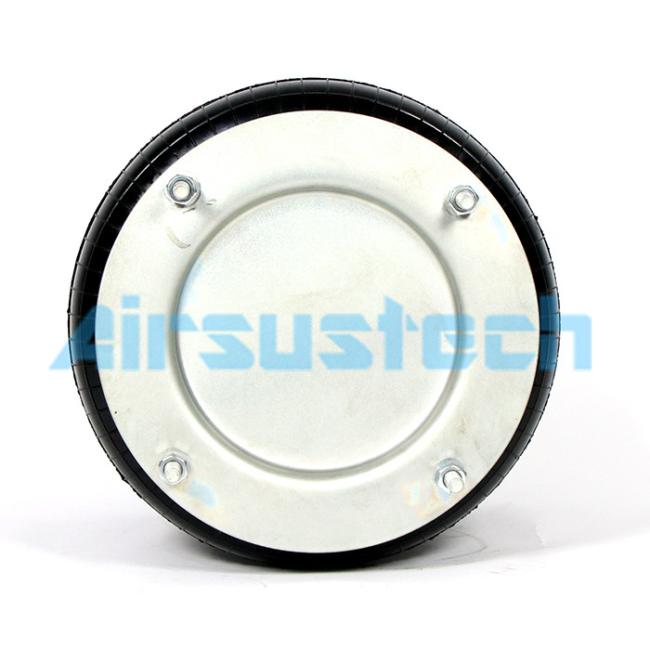

• Product Name: Contitech Air Spring
• Max Height: 350Mm
• Installation Space Required: 245 Mm
• Max. Diameter: 230 Mm
• Contitech: FT 138-26 DS
• Condition: 100% New
• Features:
  • Air Suspension Bag
  • Contitech Air Actuators
  • Pneumatic Applications Spring

Technical Parameters:

Air springs are essential components of heavy machinery and trucks. Among the different models available in the market, one can find five variations of air springs, all falling under the FT 138 series: FT 138-26 DS, FT138-26 DS, FT138-26, FT138-26 DS CR, FT 138-26 DS CR.

• Maximum Stroke: 250mm
• Maximum Load: 21.6 kN
• Maximum Diameter: 230mm
• Maximum Height: 350mm
• Minimum Height: 100mm
• Maximum Recommended Operating Height: 305 mm
• Plate Diameter: 184 mm
• Mounting Bolts: 4xM10
• Air Inlet: G1/2
• Material: NR
• Temperature Range: - 40°C / +70°C
• Style: FT138
