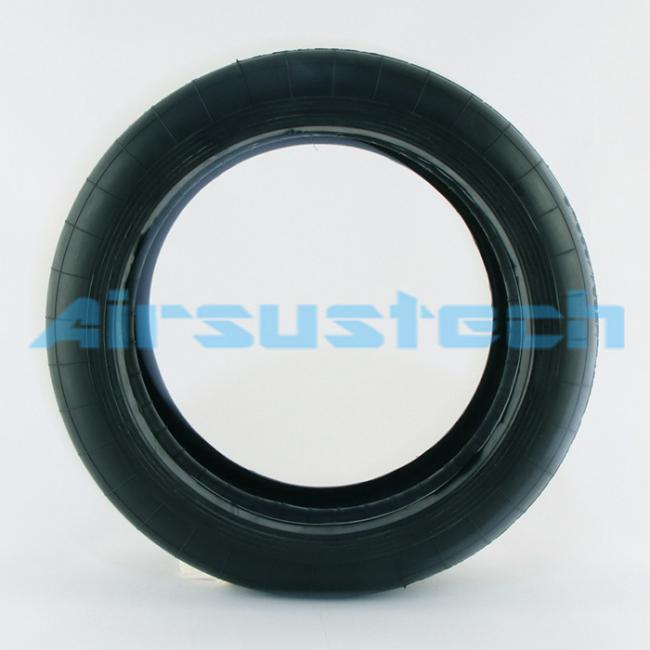

W01-358-0205 Firestone Air Bellows Style 203 Rubber Air Spring Industrial Vibrating Screen
Product Description:
| Description | Assembly Order No. | |
| Style 203 | Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-6985 |
| Two Ply Bellows | Rolled plate assembly,1/2 blind nuts, 3/4 NPT | W01-358-7767 |
| Rubber bellows only | W01-358-0205 |
Features:
The manufacturer brand for this product is AIRSUSTECH.
The manufacturer identification number for this product is 2B0205.
The style of bellows used in this product is Firestone Style 203.
The bellows used in this product are composed of two layers of rubber material.
Firestone ID:W01-358-0205
The identification number for this product according to Firestone is W01-358-0205, represented with hyphens separating the sections of the ID number.
Firestone ID:W01 358 0205
The identification number for this product according to Firestone is W01 358 0205, represented with spaces separating the sections of the ID number.
Firestone ID:W013580205
The identification number for this product according to Firestone is W013580205, representing a shortened version of the ID number without spaces or hyphens.
Rubber bellows only
This product includes rubber bellows exclusively, without any other materials used in its construction.
Contitech FD 1330-25 RS UNF
This product may also be referenced by the identification number Contitech FD 1330-25 RS UNF, which is another identifier for the same item.
Technical Parameters:
Material:
Our product is made of 2-ply standard cord, ensuring durability and strength.
End Closure Details:
This product features a bead ring type end closure with 4 rings and 24 bolts each.
Airmount Isolator:
Designed at a height of 241mm, this isolator can support a load of up to 34.9kN at 3 Bar, 80.6kN at 5 Bar, and 84.5kN at 7 Bar. Its natural frequency at 5 Bar is 1.6 Hz, and it can provide 93.9%, 98.5%, and 99.6% isolation at forced frequencies of 7 Hz, 13 Hz, and 25 Hz, respectively.
Dimensions:
This product has a maximum diameter of 508mm at 7 Bar, a maximum height of 84mm, and a maximum stroke of 183mm. The minimum usable height is 267mm. At a stroke of 25mm, the force exerted at 5 Bar is 86.3kN. At a stroke of 50% of the maximum stroke, the force is 75.1kN. At maximum stroke, the force is 52.1kN.
Style Cross-Ref High Strength Style Number:
This product is equivalent to style number 218 in terms of high strength.
Applications:
One of the most exciting features of these air bags is their versatility in application. They can be used in a variety of scenarios, including but not limited to the following:
- Firestone Air Spring Replacement Guide: These air bags are the perfect replacement for worn-out or damaged air springs. They are designed to provide the same level of performance and reliability as the original equipment.
- Lifted Truck Air Bag Kits: If you have a lifted truck and need a way to level it out, these air bags are a great solution. They can be installed between the axle and frame to provide extra support and prevent sagging.
- Firestone Air Bags Catalog: These air bags are compatible with a wide range of vehicles and can be found in the Firestone Air Bags Catalog. Whether you have a passenger car, SUV, or heavy-duty truck, there is an air bag that will fit your needs.
Packing and Shipping:
Product Packaging:
The air spring will be carefully packed in a sturdy cardboard box to ensure safe shipping to your location. The packaging will include the necessary installation hardware and instructions.
Shipping:
The estimated delivery time is 5-7 business days. Expedited shipping options are also available at an additional cost.
