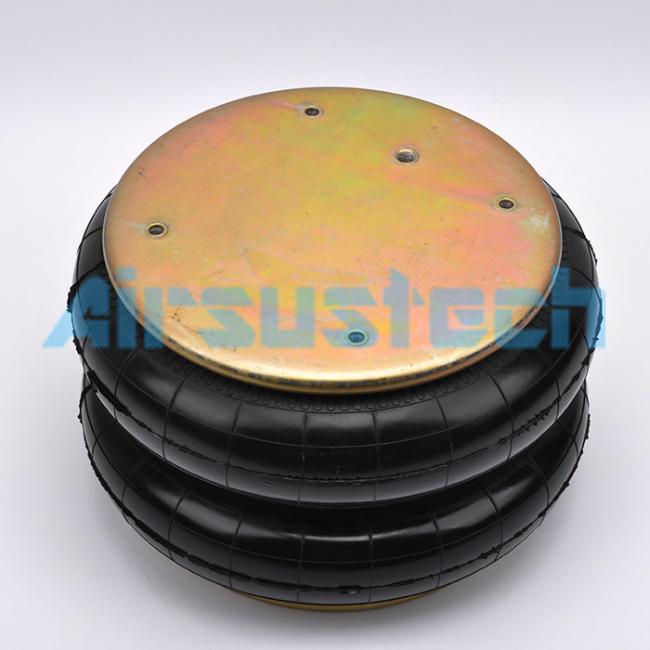

W01-358-7275 Firestone Air Bag Style 29 Black Rubber Bellows Air Spring
Product Description:
- Firestone Air Spring Specifications
- Type: Air Spring Bags
- Maximum Stroke: 246 MM
- Rubber bellows only: Style 29
- Rings DIA.: 517 Mm
- Firestone Air Bags Service
- BLIND NUTS: M-10 X 1.25 ;15 Mm DEEP
- Firestone W01-358-7275
- Firestone W01 358 7275
- Firestone W013587275
- Ridewell Number:1003587275C
Technical Parameters:
| Pressure (BAR) | Load (kN) | Rate (kN/m) | Frequency (Hz) |
|---|---|---|---|
| 3 | 47.12 | 497 | 1.62 |
| 4 | 63.62 | 663 | 1.61 |
| 5 | 80.06 | 795 | 1.57 |
| 6 | 97.40 | 923 | 1.54 |
| 7 | 113.25 | 1050 | 1.52 |
Applications:
Our airbags are perfect for off-road vehicles, which require extra support and stability when traversing rocks and uneven terrain. Our airbags have been tested to a maximum pressure of over 3,000,000 times to withstand even the harshest conditions. Its ring diameter of 517 mm, blind nut of M-10 X 1.25 and 15 mm depth make installation a breeze, ensuring that our customers can easily install it on their vehicles.
Our airbags are also suitable for commercial trucks carrying heavy loads. With a maximum travel of 246 mm, our airbags provide ample cushioning and support for heavy cargo, ensuring that the vehicle's suspension system will not be damaged.
Packing and Shipping:
Product Packaging:
- Air Bags
- Installation Manual
- Mounting Hardware
Shipping:
- Ships within 2 business days
- International shipping available at an additional cost
- Ships in a sturdy cardboard box to ensure safe delivery
