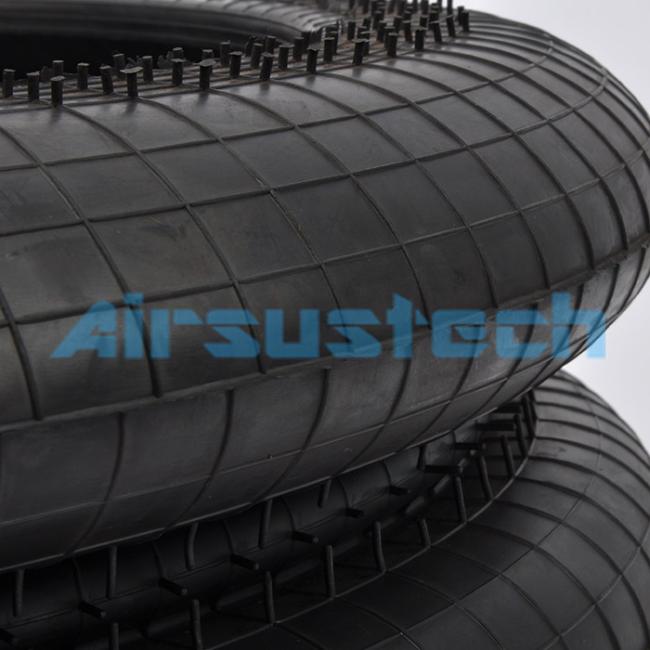

Double Convolutions AIRSUSTECH 575mm Firestone Air Bag Suspension Kits W01-358-7902
Product Description:
Cross Reference
Firestone Style 29
Rubber Bellows Only
- W01 358 7902
- W013587902
- WO1-358-7902
- WO1 358 7902
- WO13587902
- w013587902
- w01-358-7902
- w01 358 7902
Technical Parameters:
Below is a table showing the pressure load rate frequency in BAR, kN, kN/m and Hz:
| BAR | kN | kN/m | Hz |
|---|---|---|---|
| 3 | 47.12 | 497 | 1.62 |
| 4 | 63.62 | 663 | 1.61 |
| 5 | 80.06 | 795 | 1.57 |
| 6 | 97.40 | 923 | 1.54 |
| 7 | 113.25 | 1050 | 1.52 |
Applications:
These air bags can be used in a variety of different applications, making them a versatile and valuable addition to any vehicle. They are particularly useful for vehicles that frequently carry heavy loads, such as trucks, trailers, RVs, and buses. The rings DIA. of these air bags is 517mm, and they come with rubber bellows only (W01-358-7902).
Packing and Shipping:
Product Packaging:
The product comes in a sturdy cardboard box to ensure safe transportation. The box includes:
- Air Bags
- Mounting hardware
- Installation instructions
Shipping:
The product will be shipped via Express shipping. Customers can expect delivery within 5-7 business days. Shipping costs will be calculated at checkout based on the customer's location.
