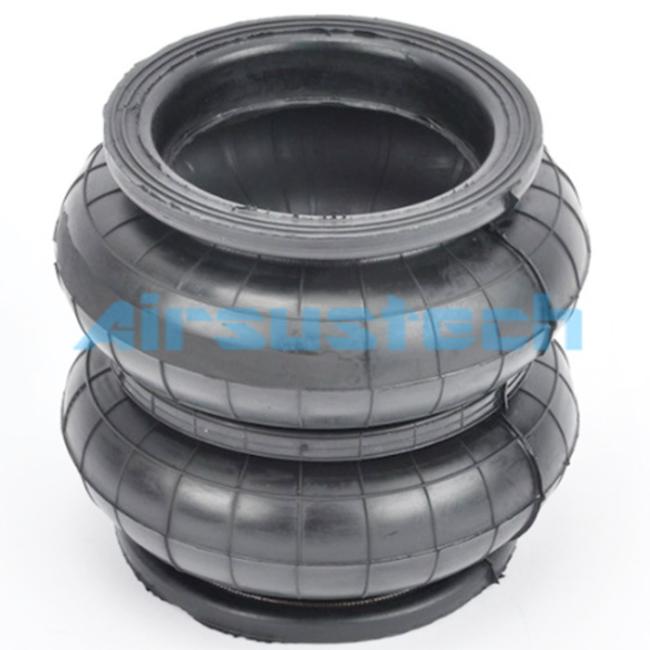

W01-358-5126 Convoluted Air Spring Two Ply Bellow Rubber Air Pillow
Product Description:
The travel length of the corrugated air spring ranges from 84 mm to 317 mm, which means it can accommodate a wide range of vehicle heights. This feature is particularly useful for vehicles used in off-road or rough terrain conditions as it provides excellent suspension and shock absorption.
Firestone Number: W01-358-5126
Firestone Number: W01 358 5126
Firestone Number: W013585126
Features:
| Gauge Pressure (BAR) | Load (kN) | Rate (kN/m) | Frequency (Hz) |
|---|---|---|---|
| 3 | 65.60 | 710 | 1.64 |
| 4 | 88.20 | 903 | 1.60 |
| 5 | 110.53 | 1091 | 1.57 |
| 6 | 134.38 | 1290 | 1.54 |
| 7 | 156.56 | 1480 | 1.53 |
Technical Parameters:
The Force Table is a crucial tool in designing Airstroke™ actuator. It provides essential information that helps engineers create an efficient and effective design. The table contains data on the force, assembly volume, efficiency, and area of the actuator, among others.
| kN | Force | Assembly Volume | EFF Area Height | @ 7 BAR | @ 7 BAR | @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR (mm) | (cu cm) | (cm sq) | BAR | BAR | BAR | BAR | BAR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 | 68626 | 2057 | 59.56 | 80.57 | 101.22 | 123.62 | 143.98 | ||||||||||
| 240 | 64100 | 2237 | 65.60 | 88.20 | 110.53 | 134.38 | 156.56 | ||||||||||
| 220 | 59270 | 2384 | 70.27 | 94.34 | 117.99 | 143.23 | 166.86 | ||||||||||
| 200 | 54018 | 2503 | 74.03 | 99.30 | 124.00 | 150.38 | 175.20 | ||||||||||
| 180 | 48552 | 2599 | 77.11 | 103.27 | 128.85 | 156.12 | 181.87 | ||||||||||
| 160 | 42927 | 2678 | 79.74 | 106.59 | 132.92 | 160.96 | 187.47 | ||||||||||
| 140 | 37197 | 2754 | 82.19 | 109.71 | 136.77 | 165.54 | 192.76 | ||||||||||
| 120 | 31597 | 2835 | 84.73 | 113.02 | 140.90 | 170.45 | 198.42 |
Applications:
The AIRSUSTECH Convoluted Air Spring Bags are a cost-effective solution, with prices ranging from USD779.9/PC to USD999.9/PC. They are suitable for various applications, including but not limited to:
- Heavy-duty trucks
- Trailers
- Buses
- Commercial vehicles
Overall, the AIRSUSTECH Convoluted Air Spring Bags are a reliable and sturdy solution for various automotive suspension needs. Order now and experience a smooth and comfortable ride!
Support and Services:
Our Convoluted Air Spring product is designed to provide superior ride quality and durability for a variety of applications. Our technical support team is available to assist with any questions or concerns you may have regarding the installation or operation of our product.
In addition, we offer a range of services to ensure optimal performance of our Convoluted Air Spring product. These services include:
- Training and education on proper installation and maintenance
- Diagnostic services to identify and troubleshoot any issues
- Repair and refurbishment services
- Custom design and engineering services to meet specific application requirements
Our goal is to provide our customers with the highest quality product and support to ensure maximum performance and longevity. Please do not hesitate to contact us for any assistance you may need.
