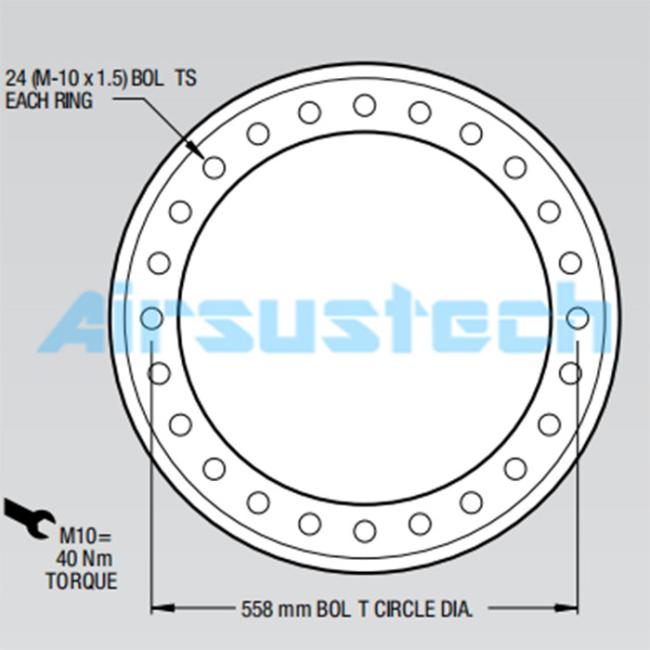

24 Bolts W01-M58-6979 Cover Plate Air Spring For Heavy Duty Machine Firestone Style 200
Product Description:
The Gross Weight of the Convoluted Air Spring is 7.00 KG, making it lightweight and easy to install. The Air Suspension Bags come with a Maximum Stroke of 233mm, providing enough space for your vehicle's suspension to move freely.
The Force to collapse to minimum height (@ 0 BAR) is 445 N. This means that the Air Spring Bags can withstand a significant amount of pressure before collapsing to their minimum height. This feature ensures that your vehicle's suspension system remains stable and reliable, providing you with a smooth and comfortable ride.
Additionally, the Net Weight of the Convoluted Air Spring is 16.50 KG, which provides a stable base for your vehicle's suspension system. The Air Spring Bags are designed to work with most air suspension systems, making it an ideal choice for your vehicle.
Overall, the Convoluted Air Spring is a reliable and durable product that is designed to provide you with a smooth and comfortable ride. With its high-quality materials and excellent features, it is the perfect choice for your air suspension needs.
Features:
The following table shows the measurements of Gauge Spring Natural in terms of Pressure Load Rate and Frequency with units expressed in BAR (Barometric pressure), kN (Kilonewtons), kN/m (Kilonewtons per meter), and Hz (Hertz):
| Gauge | Spring Natural | Pressure Load | Rate Frequency |
|---|---|---|---|
| 3 | 65.60 | 710 | 1.64 |
| 4 | 88.20 | 903 | 1.60 |
| 5 | 110.53 | 1091 | 1.57 |
| 6 | 134.38 | 1290 | 1.54 |
| 7 | 156.56 | 1480 | 1.53 |
Technical Parameters:
The following table shows the force, assembly volume, efficiency, and area for the Airstroke™ actuator design. The height is also shown at different pressure levels, ranging from 3 BAR to 7 BAR, with corresponding BAR measurements for each level.
| kN | Force | Assembly Volume | EFF Area | Height | @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR |
|---|---|---|---|---|---|---|---|---|---|
| 260 | 68626 | 2057 | 59.56 | 80.57 | 101.22 | 123.62 | 143.98 | ||
| 240 | 64100 | 2237 | 65.60 | 88.20 | 110.53 | 134.38 | 156.56 | ||
| 220 | 59270 | 2384 | 70.27 | 94.34 | 117.99 | 143.23 | 166.86 | ||
| 200 | 54018 | 2503 | 74.03 | 99.30 | 124.00 | 150.38 | 175.20 | ||
| 180 | 48552 | 2599 | 77.11 | 103.27 | 128.85 | 156.12 | 181.87 | ||
| 160 | 42927 | 2678 | 79.74 | 106.59 | 132.92 | 160.96 | 187.47 | ||
| 140 | 37197 | 2754 | 82.19 | 109.71 | 136.77 | 165.54 | 192.76 | ||
| 120 | 31597 | 2835 | 84.73 | 113.02 | 140.90 | 170.45 | 198.42 |
OEM Numbers:
Firestone: Style 200
Firestone Number: W01-M58-6979
Firestone Number: W01 M58 6979
Firestone Number: W01M586979
Firestone Number: WO1-M58-6979
Firestone Number: WO1 M58 6979
Firestone Number: WO1M586979
