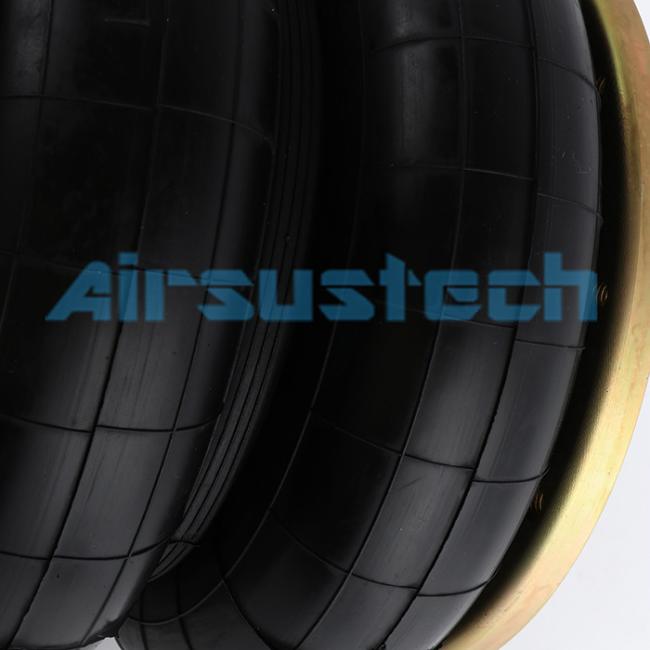

Max OD 325mm Single Convoluted Air Spring 94014 Model 19 Complete Rubber Air Bags
Product Description:
One of the main features of air springs is the air lift suspension technology. This system uses rubber air springs to provide a smooth and comfortable ride even when carrying heavy loads. Rubber air springs are designed to absorb shocks and vibrations, reduce wear and tear on equipment and minimize downtime.
Features:
| Product Name | Torpress Air Spring |
| Burst pressure | > 1.6 Mpa |
| Weight of the parts | 3.5 Kg |
| Temperature | -35℃~+60℃ |
| Specification | 33*33*40 Cm |
| Oe No | PIRELLI 94014 |
| Keywords | Pirelli Air Shock, Pirelli Air Spring, Pirelli Air Cushion Suspension |
Technical Parameters:
Welcome! Below you will find the specifications and technical data for the AIRSUSTECH 1F5330 and the Cross 19 BR 94014 Torpress Airbag.
- Compressed Height: 2.12 inches / 105mm
- Rubber Bellows Maximum Diameter (Max Diameter): 12.9 inches / 325 mm
- Rubber bellows natural diameter: 300 mm
- Working stroke: max 160 mm min 55 mm
- Thread Air Hole: 1/2 N PTF
- Number of Firestone Bellows: 19
- Top Cover Diameter: 247mm
- Bottom Cover Diameter: 247mm
- Screw center distance: 228.5 mm
- Top Plate Screw (Nut) Teeth: M8
- Bottom Cover Plate Screw (Nut) Teeth: M8
- Compressed Height: 2.12 inches / 105mm
- Rubber Bellows Maximum Diameter (Max Diameter): 12.9 inches / 325 mm
- Rubber bellows natural diameter: 300 mm
- Working stroke: max 160 mm min 55 mm
- Number of Firestone Bellows: 19
- Top Cover Diameter: 247mm
- Bottom Cover Diameter: 247mm
- Screw center distance: 228.5 mm
- Top Plate Screw (Nut) Teeth: M8
- Bottom Cover Plate Screw (Nut) Teeth: M8
Applications:
Torpress air springs are ideal for a wide range of industrial applications. Its unique design and construction make it suitable for industrial machines that require high-quality shock absorption and vibration isolation. Pirelli pneumatic shock absorbers are an excellent choice for those who need a reliable, durable and long-lasting product.
Pirelli air suspension is an innovative product that provides a smooth and comfortable ride. It is designed to absorb shocks and vibrations and is ideal for use in heavy machinery and equipment. Pirelli rubber air springs are a durable and reliable product designed to withstand the harshest conditions.
Packing and Shipping:
Product Packaging:
- Each Air Spring will be packaged in a sturdy cardboard box
- The box will include the Air Spring, installation instructions, and any necessary hardware
- The box will be sealed with tape to ensure the contents stay secure during shipping
Shipping:
- All orders will be shipped within 2 business days of receipt
- For international orders, shipping rates will vary based on location and weight of the package
- Customers will receive a tracking number once the package has been shipped
