W01-358-9603 Firestone Air Spring Actuator Minimum Height 5.5 Inches Air Bag Bellows

Product Description:

Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.

Specifications and Technical Parameters:

3H9603 Specifications:

• Bellow MAX. Diameter at 100 PSIG: 37.4 Inches
• Minimum Height: 5.5 Inches
• Maximum Height: 23 Inches
• Stroke Height: 17.5 Inches
• Design Height: 15 Inches
• Top Cover Plate: 35.04 Inches
• Bottom Cover Plate: 35.04 Inches
• Bolts Type: 40(3/8-24)
• Bolt Center Distance: Triple Convolutions
• OEM NO.: Style 348-3

3H9603 Technical Parameters:

20 psig (pounds): 31480

60 psig (pounds): 47870

80 psig (pounds): 64870

100 psig (pounds): 82540

Natural Frequency at 40 psig (cpm): 73

Natural Frequency at 60 psig (cpm): 70

Natural Frequency at 80 psig (cpm): 68

Natural Frequency at 100 psig (cpm): 67

Cross References:

There are several other models of the product with style 348-3:

Support and Services:

The Suspension Air Springs product technical support and services include:

• Expert troubleshooting assistance to diagnose and resolve technical issues
• Guidance on proper installation and maintenance procedures
• Product documentation, including user manuals and technical specifications
• Product training and education for customers and service technicians
• Warranty and repair services, including replacement parts and exchange programs
• Customer support for urgent technical issues or service needs

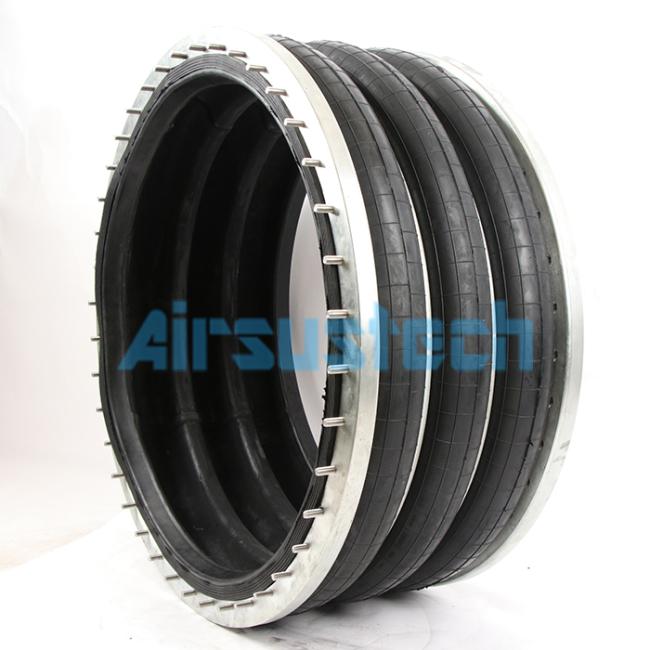

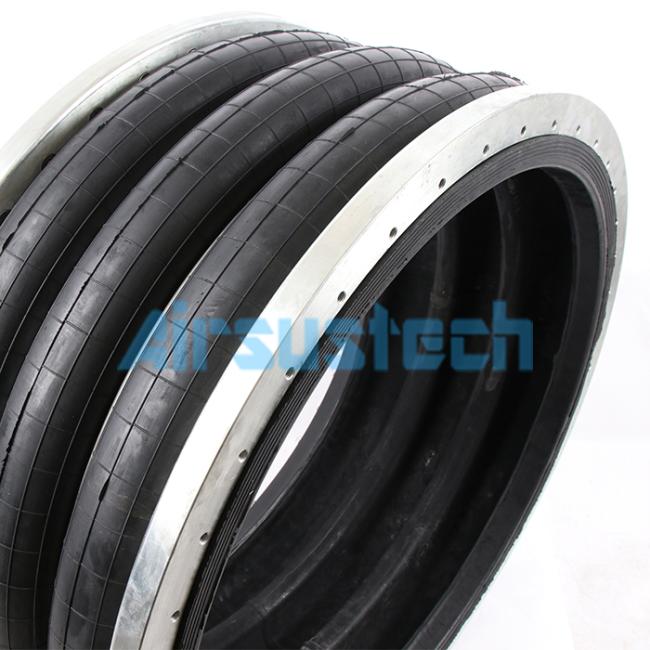

3H9603 Real Pictures:
