Leland Sc2011 Air Spring Suspension Contitech FD 200-19 Rubber Bellow Air Bag

Price Negotiable

Price: Negotiable

MOQ: 2

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

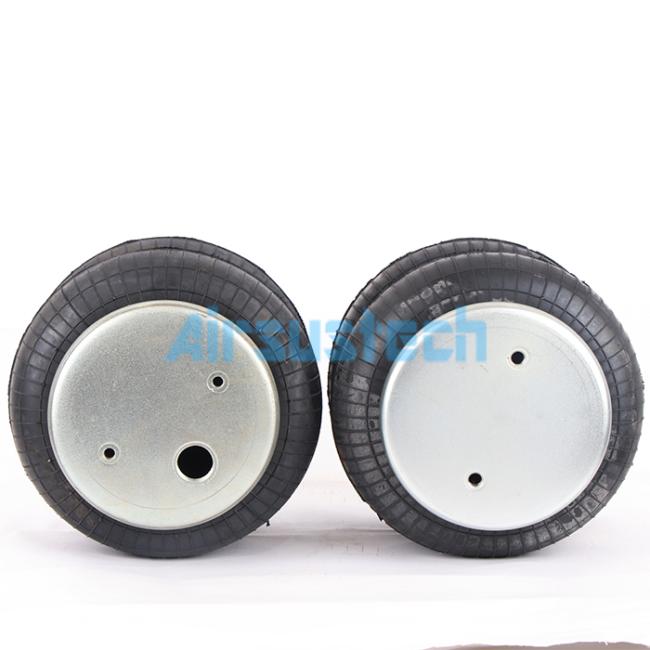

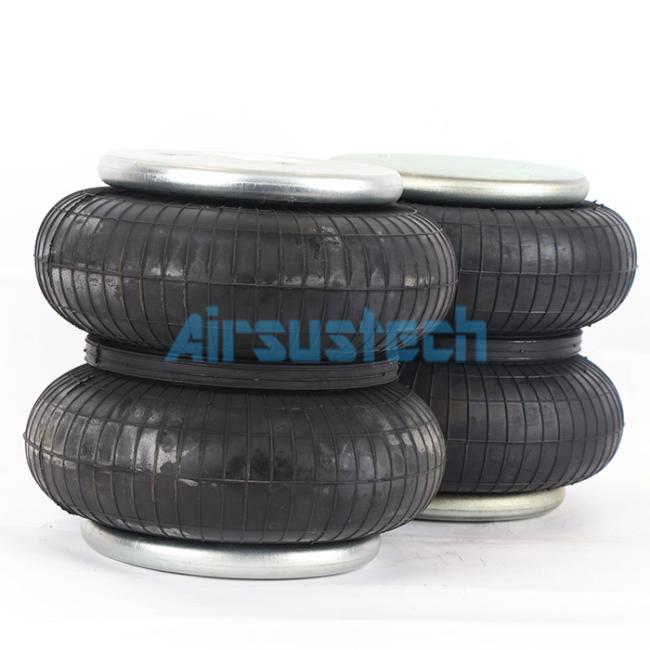

Leland Sc2011 Air Spring Suspension Contitech FD 200-19 Rubber Bellow Air Bag

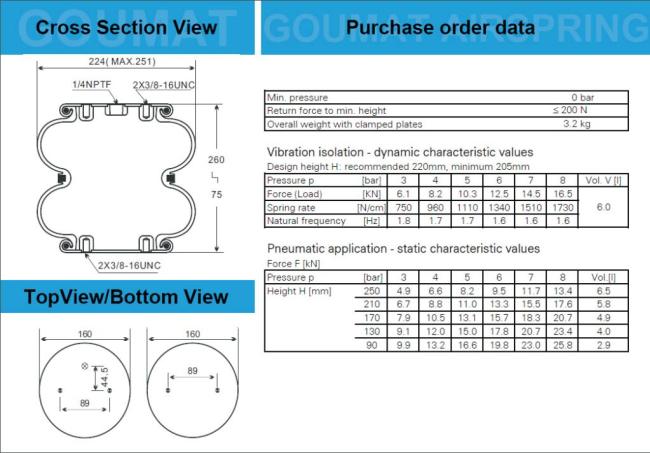

Product Information

Top Plate Hole/Stud Qty: 3
Top Plate Dia: 160 mm
Distance Between Threaded Holes: 89 mm
Distance Between Threaded Hole and Air Hole: 44.5 mm
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 160 mm
Natural Outer Diameter: 224mm
Max.Outer Diameter: 251mm
Air Hole:1/4NPTF
Threaded Hole: 3/8-16UNC
Min Height: 75 mm
Max Height: 260 mm

Alternative Items

Firestone	W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910	Dayton	3546910
Contitech	FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320	Leland	Sc2011
Goodyear	2B9-200/202/216 578423202	Navistar	554783C1
Triangle	6325/4320	Hendrickson	S8768/458433
Taurus	KF218-6910	Ridewell	1003586910C
Brake & Wheel	M3501	SAF Holland	57006910
Dina	A812719/AZ812719	Trailers De	133128
Tuthill	1371	Watson & Chalin	AS-0001/AS-0156G

Style 274, We Can Supply

Blind nuts, 1/4 NPT	W01-358-6910, W01 358 6910, W013586910 WO1-358-6910, WO1 358 6910, WO13586910
Blind nuts, 1/4 NPT, bumper	W01-358-6911, W01 358 6911, W013586911 WO1-358-6911, WO1 358 6911, WO13586911
Blind nuts, 3/4 NPT	W01-358-6900, W01 358 6900, W013586900 WO1-358-6900, WO1 358 6900, WO13586900
Blind nuts, 3/4 NPT, bumper	W01-358-6901, W01 358 6901, W013586901 WO1-358-6901, WO1 358 6901, WO13586901
Countersunk steel bead rings, 1^3/4 bolts, nuts, washers	W01-358-6923, W01 358 6923, W013586923 WO1-358-6923, WO1 358 6923, WO13586923
Rubber bellows only	W01-358-0138, W01 358 0138, W013580138 WO1-358-0138, WO1 358 0138, WO13580138

Style 202, We Can Provide

Blind nuts, 1/4 NPT	W01-358-7080, W01 358 7080, W013587080 WO1-358-7080, WO1 358 7080, WO13587080
Blind nuts, 3/4 NPT	W01-358-7119, W01 358 7119, W013587119 WO1-358-7119, WO1 358 7119, WO13587119
