FIRESTONE W01-358-7274 Air Suspension Rolled Plate Assembly 3/4 NPT AIr Inlet
FIRESTONE W01-358-7274 Air Suspension Rolled Plate Assembly 3/4 NPT AIr Inlet
Product Description
At Suspension Air Springs, we take pride in providing high-quality air shocks that are designed to meet the needs of all car owners. Our air shocks are designed with advanced technology and are engineered to provide superior performance in a wide range of applications. Our air shocks are designed to provide superior load capacity and durability, while still providing a comfortable and safe ride. With our air shocks, you can rest assured that your vehicle will have a smoother and safer ride, no matter what the conditions are.
3H7274 Specifications
| Cover Plate Top Cover Plate Diameter: 17.75 in. Screw Center Distance of Top Cover Plate: 16.50 in. Bottom Cover Plate Diameter: 17.75 in. Screw Center Distance of Bottom Cover Plate: 16.50 in. |
|
Nut/Blind Nut Blind Nuts Type: 1/2 |
| Gas Hole/Air Inlet/Air Fitting Gas Hole: 3/4 NPT |
| Rubber Bellow Rubber Bellow Max. Diameter: 20.5 in. Minimum Height: 4.6 in. Maximum Height: 18 in. |
3H7274 Technical Parameters
|
Dynamic Characteristics at 13.0 in. Design Height
|
||||
|
Volume @ 100 PSIG = 3,073 in3
|
Natural Frequency
|
|||
|
Gage Pressure (PSIG) |
Load (Ibs.) | Spring Rate(Ibs./in.) | CPM | HZ |
| 40 | 8,010 | 1,744 | 88 | 1.46 |
| 60 | 12,030 | 2,104 | 78 | 1.31 |
| 80 | 16,270 | 2,784 | 78 | 1.30 |
| 100 | 20,580 | 3,624 | 79 | 1.31 |
Firetone Style 323, We Can Supply
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
Firestone Style 324 With High Strength Bellows
|
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
|
W01-358-7829, W01 358 7829, W013587829
WO1-358-7829, WO1 358 7829, WO13587829
|
|
Rubber bellows only
|
W01-358-0324, W01 358 0324, W013580324
WO1-358-0324, WO1 358 0324, WO13580324
|
Maintenance of the air springs, Vehicle Check-List
1.Check the air lines and devices of leakage and that they turns freely.
2.Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3.Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4.Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5.Check axle suspension, trailing arms and rods for wear.
6.Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7.Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.

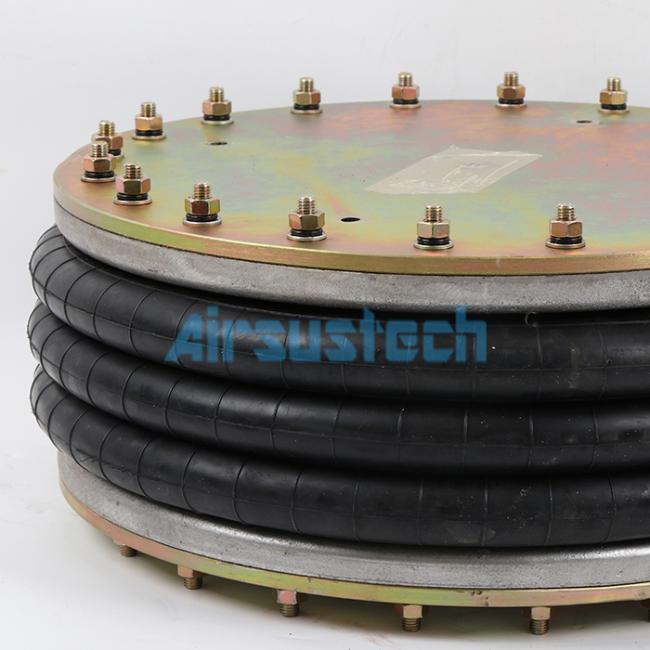

The Related Pictures of 3H7274
