Product Description
Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.
Product Specifications

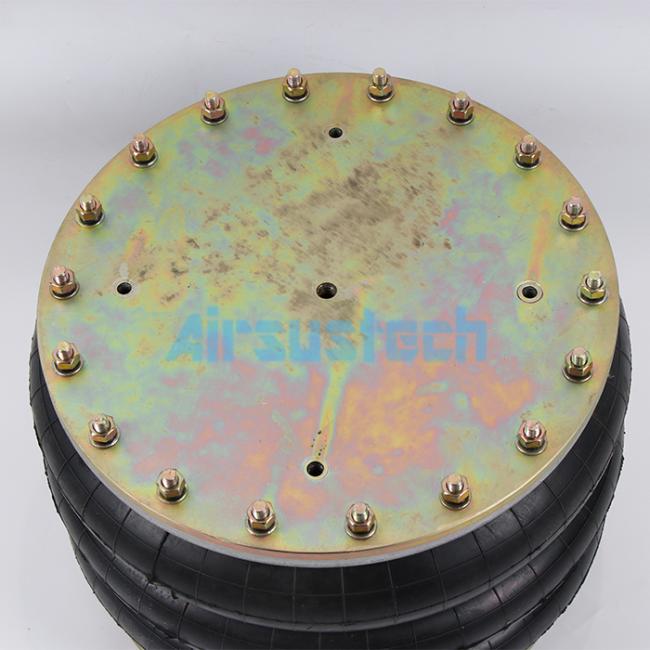

- Cover Plate
Top Cover Plate Diameter: 15.12 in.
Screw Center Distance of Top Cover Plate: 13.81 in.
Bottom Cover Plate Diameter: 15.12 in.
Screw Center Distance of Bottom Cover Plate: 13.81 in.
- Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 18×3/8-24 blots
Bottom Cover Plate Screw(Nut) Tooth: 18×3/8-24 blots
- Rubber Bellow
Rubber Bellow Max. Diameter: 18.2 in.
Minimum Height: 4.5 in.
Maximum Height: 18 in.
Product Technical Data Sheet
| Force Table (Use for Airstroke actuator design) | ||||||
|
Assembly Height (in.) |
Volume @ 100 |
Pounds Force | ||||
|
@ 20 PSIG |
@ 40 PSIG |
@ 60 PSIG |
@ 80 PSIG |
@ 100 PSIG |
||
| 14.0 | 2,342 | 2,300 | 4,640 | 7,230 | 9,820 | 12,420 |
| 12.0 | 2,061 | 2,760 | 5,510 | 8,560 | 11,510 | 14,450 |
| 10.0 | 1,744 | 3,130 | 6,260 | 9,620 | 12,870 | 16,060 |
| 8.0 | 1,400 | 3,340 | 6,940 | 10,370 | 13,820 | 17,440 |
| 6.0 | 1,021 | 3,790 | 7,580 | 11,510 | 15,350 | 19,280 |
The Same Rubber Bellow Style 312 Has The Following Models
|
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7761, W01 358 7761, W013587761, WO1-358-7761, WO1 358 7761, WO13587761
|
|
Ribbed neck aluminum bead rings (unequal spacing) 17/8 bolts, nuts, washers W01-358-7760, W01 358 7760, W013587760, WO1-358-7760, WO1 358 7760, WO13587760
|
|
Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT W01-358-7286, W01 358 7286, W013587286, WO1-358-72860, WO1 358 7286, WO13587286 |
|
Rubber bellows only
W01-358-7914, W01 358 7914, W013587914, WO1-358-7914, WO1 358 7914, WO13587914
|
Product Characteristics
1. Constant Operating Height
Our Air Springs are pressurized to maintain a set height, regardless of the load. There is no static spring deflection as with other spring elements. A user-friendly, automatic control system guarantees a constant operating height even under varying loads.
2. Lateral Stability
Depending on the type of air spring used, their latteral stiffness can reach up to a 100% of the vertical stiffness.
3. Low Frequency, Load-Independent
Vibration Isolation
Air Springs enable a very low resonant frequency from approximately 1 Hz to 4 Hz. Here, the resonant frequency is virtually independant of the load-bearing capacity. The excellent insulating effect remains virtually constant even under changing loads.
4. Compact Component Height
Our air springs offer a compact component height. There is no static spring deflection.
