W01-358-7760 Firestone Industrial Bellows Actuator For Pneumatic Applications
W01-358-7760 Firestone Industrial Bellows Actuator For Pneumatic Applications
Product Description

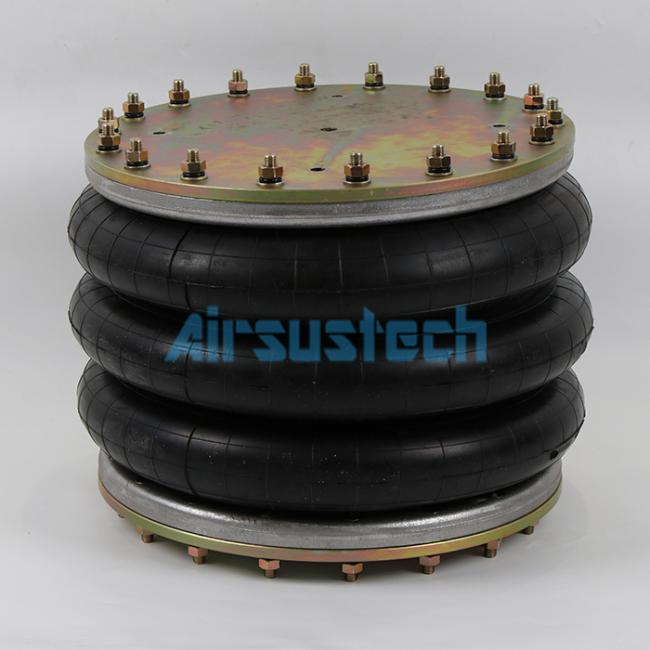

The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Product Specifications
|
Cover Plate Top Cover Plate Diameter: 15.12 in. |
|
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 18×3/8-24 blots |
|
Rubber Bellow Rubber Bellow Max. Diameter: 18.2 in. |
Product Technical Data Sheet
|
Dynamic Characteristics at 13.0 in. Design Height
|
||||
| Volume @ 100 PSIG = 2,207 in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate(Ibs./in.) | CPM | HZ |
| 40 | 5,100 | 1,056 | 85 | 1.42 |
| 60 | 7,930 | 1,536 | 83 | 1.38 |
| 80 | 10,730 | 1,950 | 90 | 1.33 |
| 100 | 13,530 | 2.371 | 79 | 1.31 |
The Same Rubber Bellow Style 312 Has The Following Models
| Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers |
W01-358-7761, W01 358 7761, W013587761 WO1-358-7761, WO1 358 7761, WO13587761 |
| Ribbed neck aluminum bead rings (unequal spacing) 17/8 bolts, nuts, washers |
W01-358-7760, W01 358 7760, W013587760 WO1-358-7760, WO1 358 7760, WO13587760 |
| Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT |
W01-358-7286, W01 358 7286, W013587286 WO1-358-72860, WO1 358 7286, WO13587286 |
| Rubber bellows only |
W01-358-7914, W01 358 7914, W013587914 WO1-358-7914, WO1 358 7914, WO13587914 |
Air Spring Advantages
- Long service life
- Maintenance-free
- Highly operational safety
- Frictionless
- Lateral misalignment possible
- Chemical resistance
Applications
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging
