Contitech FD 44-10 DI CR Air Suspension Double Convoluted Air Shock Absorption
Contitech FD 44-10 DI CR Air Suspension Double Convoluted Air Shock Absorption
2B4 1/2×2P Specification
| Bottom Cove Plate | |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 93 mm |
| Bottom Plate Diameter | 110 mm |
| Bottom Plate Hole Quantity | 3 |
| Bottom Plate Type | Steel |
| Top Cover Plate | |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 93 mm |
| Top Plate Diameter | 110 mm |
| Top Plate Hole Quantity | 4 |
| Top Plate Type | Steel |
| Rubber Bellow | |
| Bellow Maximum Diameter | 125 mm |
| Maximum Height | 65 mm |
| Minimum Height | 150 mm |
| Spring Type | Double Convoluted |
2B4 1/2×2P Other OEM Number
| Contitech |
FD 44-10 DI CR, FD 44 10 DI CR, FD44-10 DI CR FD44 10 DI CR, FD44-10DI CR, FD44-10DICR |
| Firestone |
W01-R58-4051, W01 R58 4051, W01R584051 WO1-R58-4051, WO1 R58 4051, WO1R584051 |
| Dunlop Pneuride | 4 1/2''×2, 4 1/2'×2, 4 1/2×2 |
| Dunlop | SP2441, SP 2441 |
| DUNLOP UK (PNEURIDE) | PNP 305590107, PNP305590107 |
| YS-AIR | YS-115-2V, YS 115 2V, YS1152V |
| NORGREN | PM/31042, PM31042, PM 31042 |
Product Refer NO.
| AIRSUSTECH | NORGREN | GUOMAT | NORGREN |
| 4.5x1 | PM/31041 | 4.5x2 | PM/31042 |
| 4.5x3 | PM/31043 | 6x1(Al) | PM/31061 |
| 6x1(Steel) | M/31061 | 6x2(Al) | PM/31062 |
| 6x2(Steel) | M/31062 | 6x3(Al) | PM/31063 |
| 6x3(Steel) | M/31063 | 8x1 | M/31081 |
| 8x2 | M/31082 | 8x3 | M/31083 |
| 10x1 | M/31101 | 10x2 | M/31102 |
| 10x3 | M/31103 | 12x1 | M/31121 |
| 12x2 | M/31122 | 12x3 | M/31123 |
| 14.5x1 | M/31141 | 14.5X2 | M/31142 |
| 14.5x3 | M/31143 | 16x1 | M/31161 |
| 16x2 | M/31162 | 16x3 | M/31163 |
| 21.5x2 | M/31212 | 26x2 | M/31262 |
- The Suspension Air Springs product technical support and services include:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs

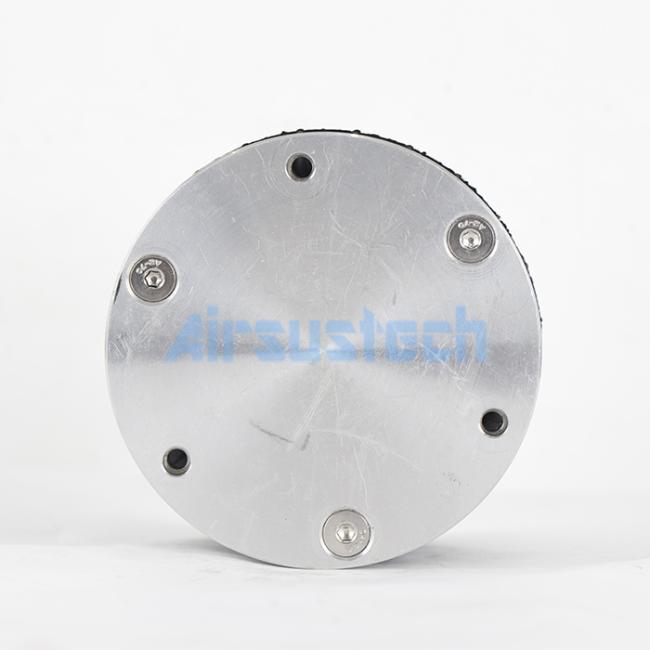

2B4 1/2×2P Real Pictures
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
