Double Convoluted Type Dunlop Pneuride 6"x2 Aluminum Cover Plate Air Spring

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

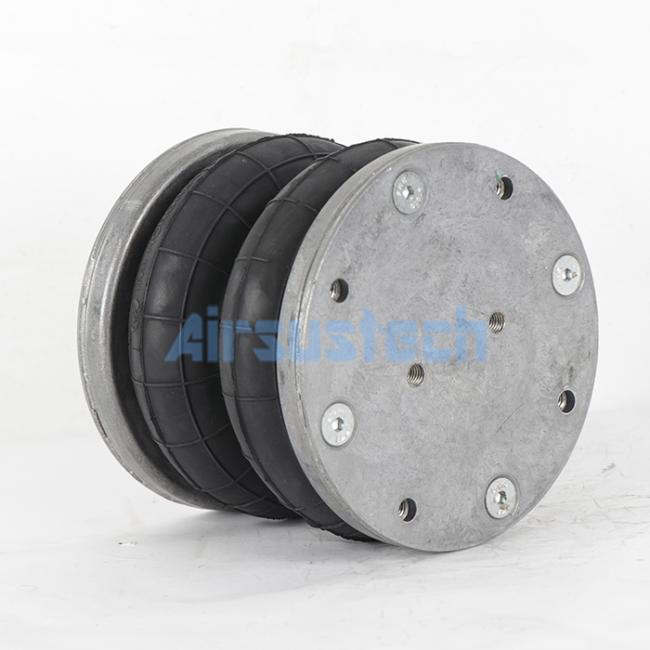

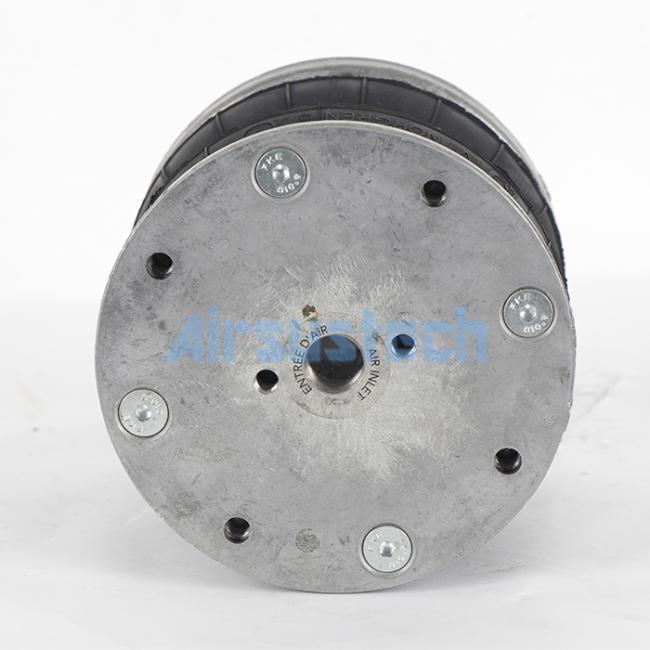

Double Convoluted Type Dunlop Pneuride 6"x2 Aluminum Cover Plate Air Spring

About Air Spring

Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

Refer Number

Dunlop Pneuride Part Number: 6" x 2 (Al)

Dunlop Pneuride Part Number: 6 x 2 (Al)

Dunlop Pneuride Part Number: 6' x 2 (Al)

Norgren Part Number: PM31062

Norgren Part Number: PM 31062

Norgren Part Number: PM/31062
Firestone Part Number: W01R584070

Firestone Part Number: W01-R58-4070

Firestone Part Number: W01 R58 4070
Dunlop Springride Part Number: SP2917

Dunlop Springride Part Number: SP 2917
Contitech Part Number: FD76-14 DI

Contitech Part Number: FD 76-14 DI

Contitech Part Number: FD7614 DI
Parker Part Number: 9109001A

Product Details

Air Connection	G 1/2
Operation	Gas-filled
Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	127 mm
Bottom Plate Diameter	152.5 mm
Bottom Plate Hole Quantity	4
Bottom Plate Type	Aluminum
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	127 mm
Top Plate Diameter	152.5 mm
Top Plate Hole Quantity	5
Top Plate Type	Aluminum
Bellow Maximum Diameter	178 mm
Expanded Height	195mm
Compressed Height	80 mm
Spring Type	Double Convoluted
Nut/Blind Nuts Type	4×M8

Product Features

Frictionless operation
No maintenance or lubrication
Ideal for short stroke, high-force applications
High vibration isolation level
Easy, compact installation

Other Double Convoluted Air Bellows

AIRSUSTECH NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159
