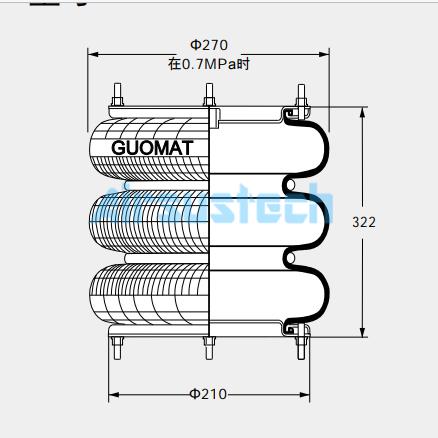

Original Flange Connection Air Spring Dunlop Pneuride 10''×3 Total Stroke 265MM

Refer Number

Dunlop Pneuride Number: 10''×3

Dunlop Pneuride Number: 10'×3

Dunlop Pneuride Number: 10×3

Firestone Number: W01-R58-4059Firestone Number: W01 R58 4059

Firestone Number: W01R584059
Dunlop Springride Number: SP1539

Dunlop Springride Number: SP 1539
Contitech Number: FT 210-32 DS

Contitech Number: FT210-32 DS

Contitech Number: FT21032 DS
Norgren Number: M/31103

Norgren Number: M31103

Norgren Number: M 31103
Parker Number: 9109031

Product Standard

Air Spring Operation

1. Due to their flexible construction the mounting of Air Bellows is less critical than with conventional pneumatic cylinders, which normally require rigid fixing and guidance and provide only one axis within a limit of 15° between faces. Additionally the axial location of the end plates may be off set by up to 10 mm.
2. When pressurised Air Bellows will follow the line of leased resistance. Accordingly care must be taken with the mounting geometry in angled applications.
3. When depressurised Air Bellows will fit in to surprisingly small spaces, especially useful for clamping or moving awkwardly shaped or very heavy loads.
4. In operation it is recommended that the unit is not allowed to "bottom out" or achieve its maximum height. Various mechanical devices may be employed to achieve this.

We Have Other Tripled Flange Ring Rubber Bellows

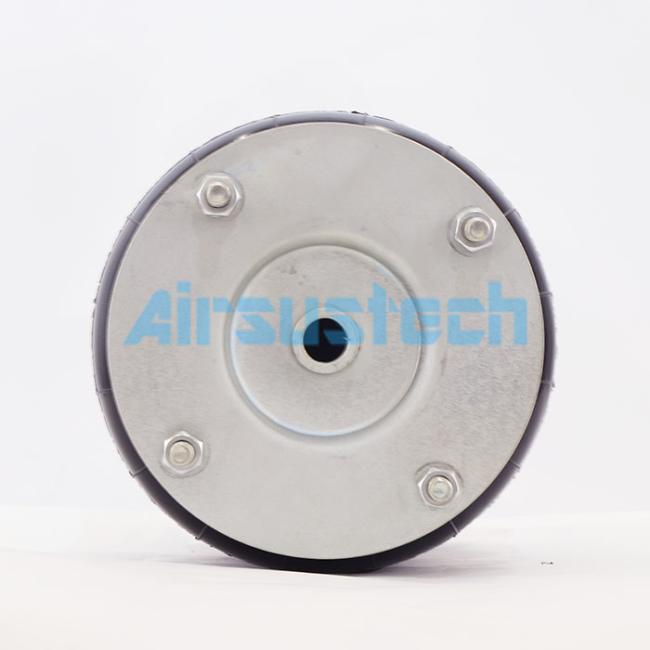

The Detalied Pictures of 3B10×3T
