Industrial Double Type Air Spring Firestone W01-R58-4053 Pneumatic Fittings G1/2
Industrial Double Type Air Spring Firestone W01-R58-4053 Pneumatic Fittings G1/2
About Air Spring
The use of stamped flange air springs is very wide. It can be used in various heavy machinery and equipment such as engineering machinery, construction machinery, metallurgical equipment, and ship equipment to provide stable support and protection for these equipment. Compared with traditional mechanical air susupensions, stamped flange air spring assembly has higher precision and adjustability, and can be precisely adjusted according to different loads and working conditions to ensure the best operation of mechanical equipment.
OEM Cross References
| Firestone Air Spring |
W01-R58-4053 / W01 R58 4053 / W01R584053 WO1-R58-4053 / WO1 R58 4053 / WO1R584053 |
| Dunlop Pneuride Air Spring | 6"x2 (Steel) / 6x2 (Steel) / 6'x2 (Steel) |
| Dunlop Springride Air Spring | SP1482 / SP 1482 |
| Contitech Air Spring | FD76-14 DS / FD 76-14 DS / FD7614 DS |
| Norgren Air Spring | M/31062 / M31062 / M 31062 |
| Parker Air Spring | 9109001 |
2B6×2T Air Bag Specifications
Diameter of the Top Cover Plate: 153.5 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 127 mm
Diameter of the Bottom Cover Plate: 153.5 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 127 mm
Screw (Nut) Thread Count for the Top Cover Plate: 4-M10
Screw (Nut) Thread Count for the Bottom Cover Plate: 4-M10
Air Inlet: G1/2
Natural Diameter of the Rubber Bellow: 159 mm
Natural Height: 135.5 mm
AIRSUSTECH Services
Our Suspension Air Springs provide technical support and services for our customers. We have a team of experienced professionals to ensure that our products meet the highest standards of quality and performance. Our team is available to answer any questions or concerns you may have about our products. We also offer installation and repair services for our Suspension Air Springs. In addition, we provide a full range of spare parts and accessories to ensure that your product is always operating at its best.
We Have Other Type Flange Air Shock Suspensions
| AIRSUSTECH NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×2 | 2 3/4''×2 | SP2904 | FD 22-4 DI | 9109009 | ||
| 2B4.5×2 | W01R584051 | 4 1/2''×2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
| 2B4.5×2-E | ||||||
| 2B6×2T(AI) | W01R584070 | 6''×(AI) | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
| 2B6×2T(Steel) | W01R584053 | 6''×2(Steel) | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
| 2B8×2T | W01R584055 | 8''×2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
| 2B10×2T | W01R584058 | 10''×2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
| 2B12×2T | W01R584061 | 12''×2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
| 2B12''×2-E | W01R584039 | 12''×2 Extend | SP2782NB | |||
| 2B14 1/2''×2T | W01R584064 | 14'' 1/2×2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
| 2B16×2T | W01R584067 | 16''×2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
| 2B21 1/2''×2T | 21 1/2''×2 | SP1408 | M/31212 | 9109153 | ||
| 2B26''×2T | 26''×2 | SP2342 | M/31262 | 9109159 |

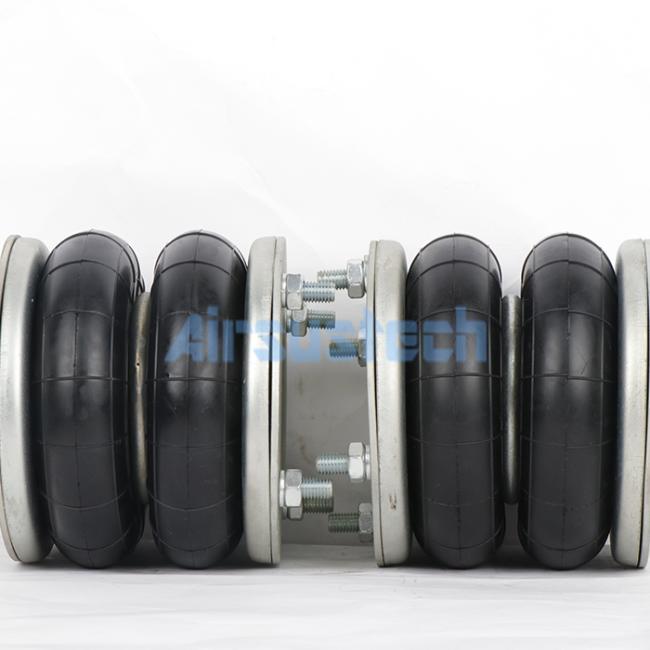

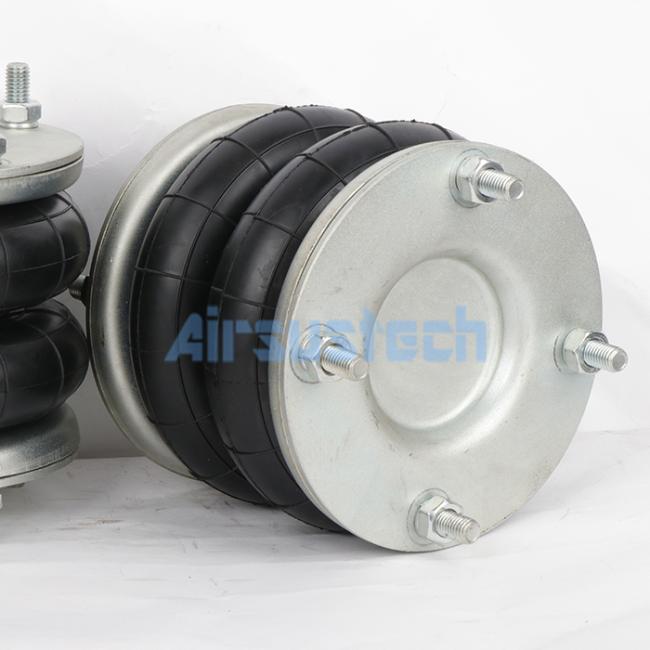

2B6×2T Detailed Pictures
