Parker 9109017 Triple Convoluted Pneumatic Actuator 8''×3 Dunlop Air Spring

Introduction to 3B8×3T Air Spring

The AIRSUSTECH Air Suspension 3B8×3T is fully compatible with Firestone W01-R58-4056, Dunlop Pneuride 8''×3, Dunlop Springride SP2863, Contitech FT 138-26 DS, Norgren M/31083, and Parker 9109017, sharing identical technical specifications with these models. We offer a one-year quality assurance on this product, and our after-sales team is always available to assist you with any questions or concerns during this period.

3B8×3T Air Spring Details

• Nut/Blind nuts

Nut length: 25 mm
Number of screws on the top cover: 4
Number of bottom cover screws: 4
Top cover plate screw (nut) tooth: 4-M10
Screw (nut) teeth of the bottom cover plate: 4-M10

• Air hole/air inlet/air connector

Air hole/air inlet: G1/2

• Cover

Top cover diameter: 183.5 mm
Diameter of bottom cover: 155.5 mm

Top cover screw center distance: 183.5 mm

Center distance of bottom cover plate screw: 155.5 mm

• Rubber bellows

Natural diameter of rubber bellows: 205 mm
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring

Part Number Interchanges

Support and Services

The Suspension Air Springs product technical support and services include:

• Expert troubleshooting assistance to diagnose and resolve technical issues
• Guidance on proper installation and maintenance procedures
• Product documentation, including user manuals and technical specifications
• Product training and education for customers and service technicians
• Warranty and repair services, including replacement parts and exchange programs
• Customer support for urgent technical issues or service needs

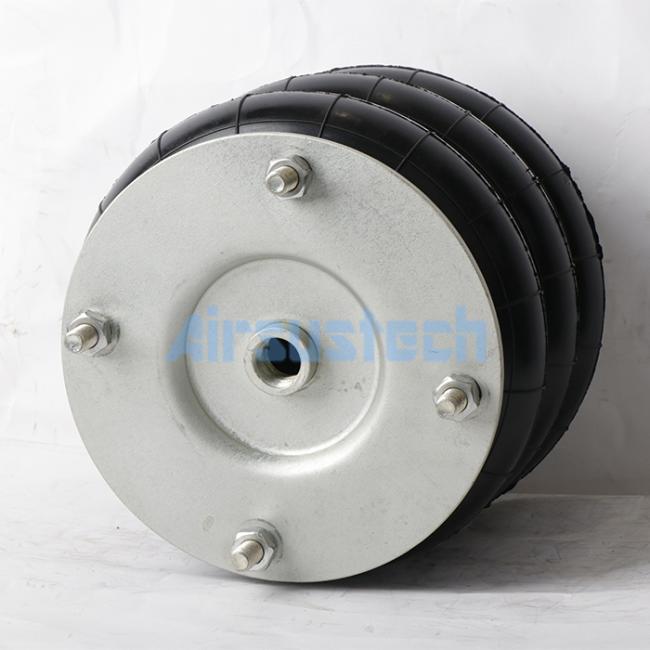

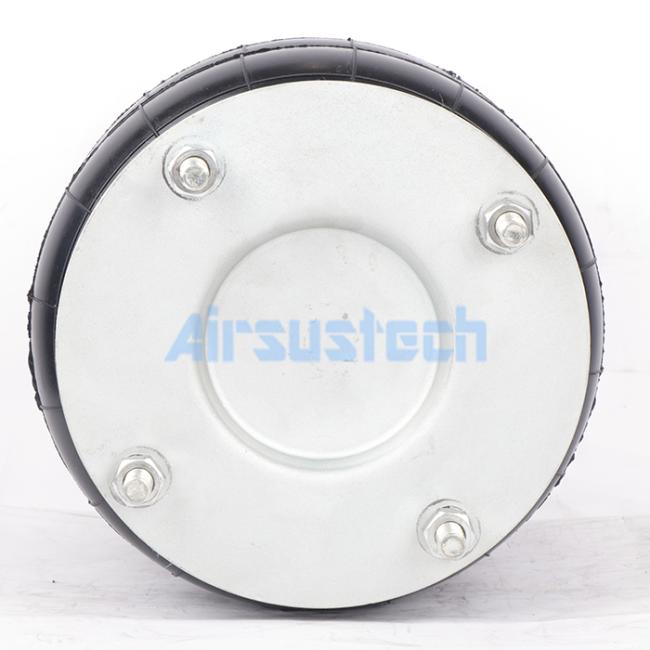

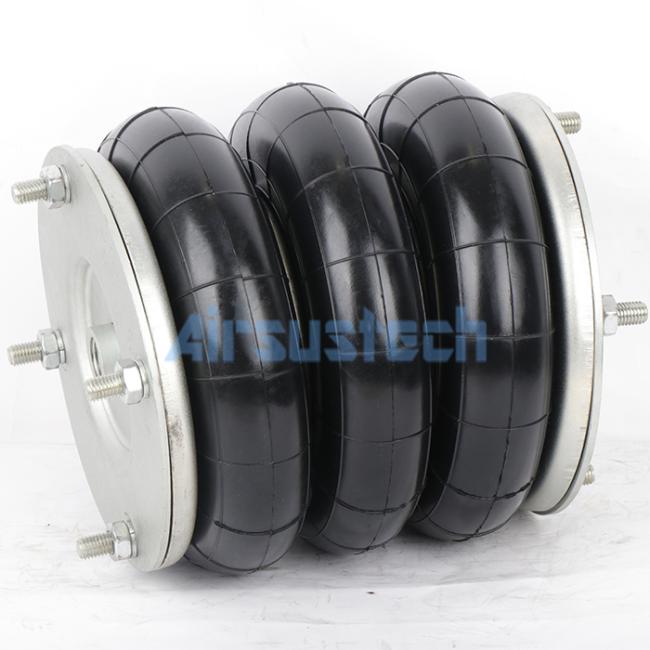

3B8×3T Air Shock Suspension Related Pictures
