Firstone Pneumatic Actuator W01-358-7823 Single Rubber Bellow with Aluminum Plate
Firstone Pneumatic Actuator W01-358-7823 Single Rubber Bellow with Aluminum Plate
Product Detailed Datas
Cover Plate
Top Cover Plate Diameter: 17.75 inches
Screw Center Distance of Top Cover Plate: 16.50 inches
Bottom Cover Plate Diameter: 17.75 inches
Screw Center Distance of Bottom Cover Plate: 16.50 inches
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 24 (3/8-24) bolts
Bottom Cover Plate Screw(Nut) Tooth: 24 (3/8-24) bolts
Rubber Bellow
Rubber Bellow Max. Diameter: 20.50 inches
Minimum Height: 4.60 inches
Maximum Height: 18 inches
Product Technical Data Sheets
| Dynamic Characteristics at 13.0 in. Design Height | ||||
| Volume @ 100 PSIG = 3,073 in3 | Natrual Frequency | |||
| Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 8,010 | 1,744 | 88 | 1.46 |
| 60 | 12,030 | 2,104 | 78 | 1.31 |
| 80 | 16,270 | 2,784 | 78 | 1.30 |
| 100 | 20,580 | 3,624 | 79 | 1.31 |
| Force Table | ||||||
| Assembly Height (in.) | Volume @ 100 PSIG (in3) |
@ 20 PSIG |
@ 40 PSIG |
@ 60 PSIG |
@ 80 PSIG |
@ 100 PSIG |
| 15.0 | 3,470 | 3,220 | 6,640 | 10,280 | 13,960 | 17,740 |
| 13.0 | 3,073 | 3,960 | 8,010 | 12,030 | 16,270 | 20,580 |
| 11.0 | 2,632 | 4,330 | 8,910 | 13,420 | 18,030 | 22,770 |
| 9.0 | 2,150 | 4,740 | 9,610 | 14,450 | 19,410 | 24,420 |
| 7.0 | 1,639 | 5,030 | 10,120 | 15,410 | 20,770 | 26,200 |
| 5.0 | 1,093 | 5,610 | 11,140 | 16,590 | 22,380 | 28,170 |
OEM Cross Reference
| Description | Assembly Order No. | |
|
Style 323 Two Ply Bellows |
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers |
W01-358-7823, W013587823, W01 358 7823 WO1-358-7823, WO13587823, WO1 358 7823 |
| Rolled plate assembly, 1/2 blind nuts, 3/4 NPT | W01-358-7274, W013587274, W01 358 7274
WO1-358-7274, WO13587274, WO1 358 7274 |
|
| Rubber bellows only | W01-358-7921, W013587921, W01 358 7921
WO1-358-7921, WO13587921, WO1 358 7921 |
|
|
Style 324 High Strength Bellows |
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers | W01-358-7829, W013587829, W01 358 7829
WO1-358-7829, WO13587829, WO1 358 7829 |
| Rubber bellows only | W01-358-0324, W013580324, W01 358 0324
WO1-358-0324, WO13580324, WO1 358 0324 |
AIRSUSTECH Air Bags Product Technical Support
- Provides additional support for your vehicle's suspension system
- Helps to reduce vehicle sagging, sway, and bottoming out
- Easy to install and inflate/deflate as needed
- Constructed with high-quality materials for durability and longevity
- Available in a variety of sizes to fit most vehicles
- AIRSUSTECH Air Bags Product Services:
- Professional installation available through authorized dealers
- Warranty included with product purchase
- Online resources available for product information and troubleshooting
- Customer service available for any questions or concerns

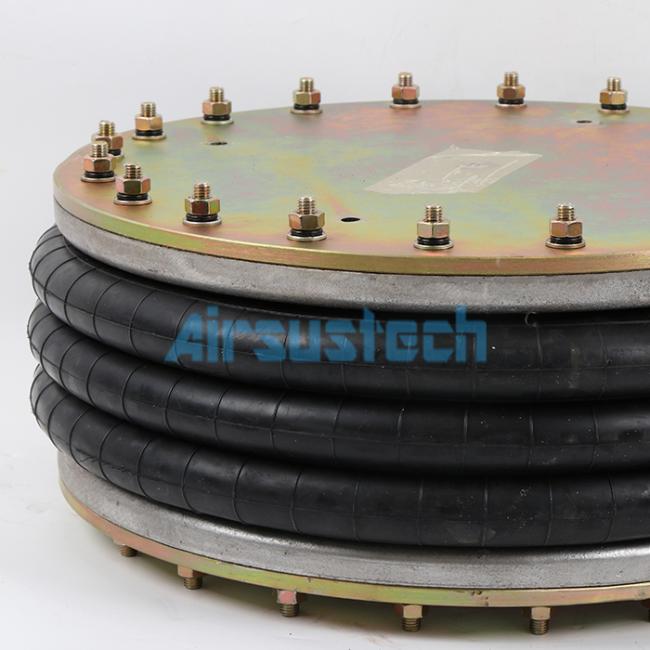

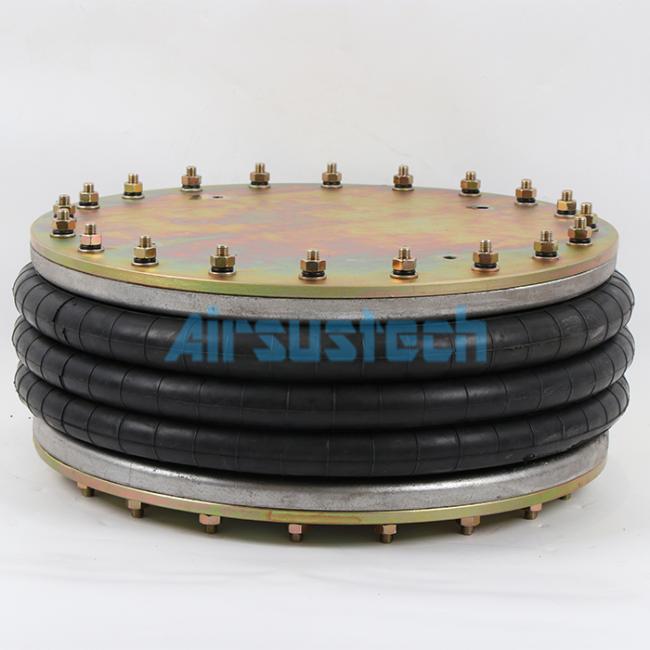

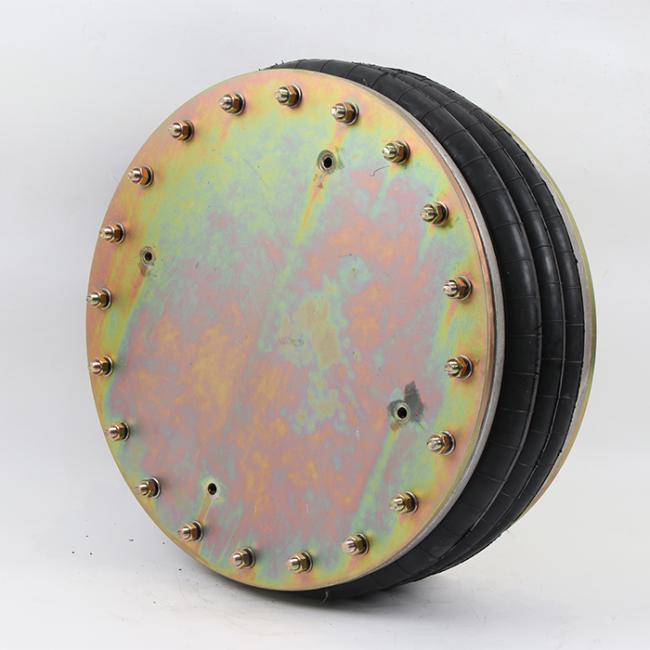

The Related Pictures
