Firestone Pneumatic Air Spring W01-R58-4060 Convoluted Bellow G1/4 Air Connection

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

Firestone Pneumatic Air Spring W01-R58-4060 Convoluted Bellow G1/4 Air Connection

1B12×1P Replaces These Air Spring Models

Norgren

PM31121, PM 31121, PM/31121

Firestone

W01-R58-4060, W01R584060, W01 R58 4060

WO1-R58-4060, WO1R584060, WO1 R58 4060

DUNLOP PNEURIDE

12''×1, 12'×1, 12×1

DUNLOP SPRINGRIDE

SP1540, SP 1540, SP 15 40

Contitech

FS 412-10 DS, FS412-10 DS, FS41210 DS

PARKER

9109044

1B12×1P Air Bellow Specifications

Maximum Rubber Bellow Diameter: 325 mm

Installation Spce: 340 mm

Cover Plate Diameter: 228 mm

Compressed Height: 51 mm

Max. Expanded Height: 150 mm

Full Stroke: 99 mm

Air Hole: G1/4

Center to Cenetr Distance: 157.5 mm

Distance Between Air Inlet and Screw: 73 mm

Screw Type: 2×M8×15mm

Product Applications

Papermaking equipment
Scissor lift
Mechanical Hopper vibration and damping handling stop
Direct force
Platform lift
Short stroke mechanical linkage
Hot foil stamping press
Impact absorbtion
Roller tensioning
Quick lock device
Reel tensioning
Machine isolation

Air Spring Introduction

Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety.

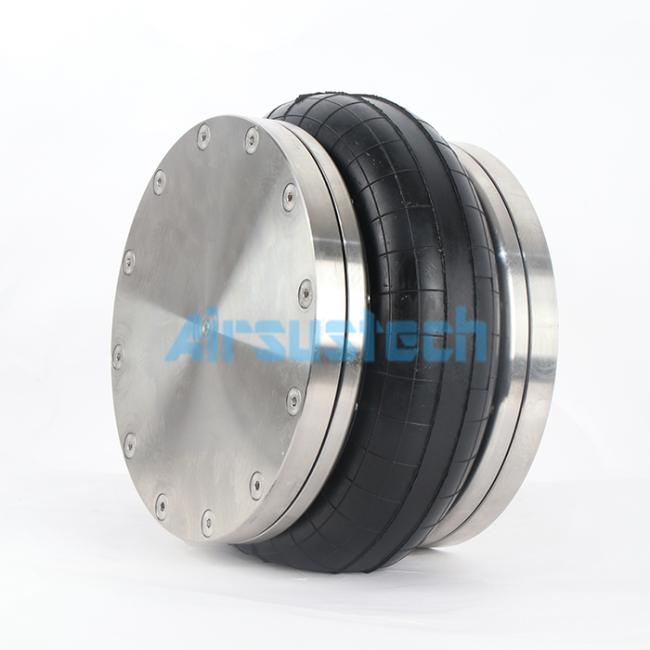

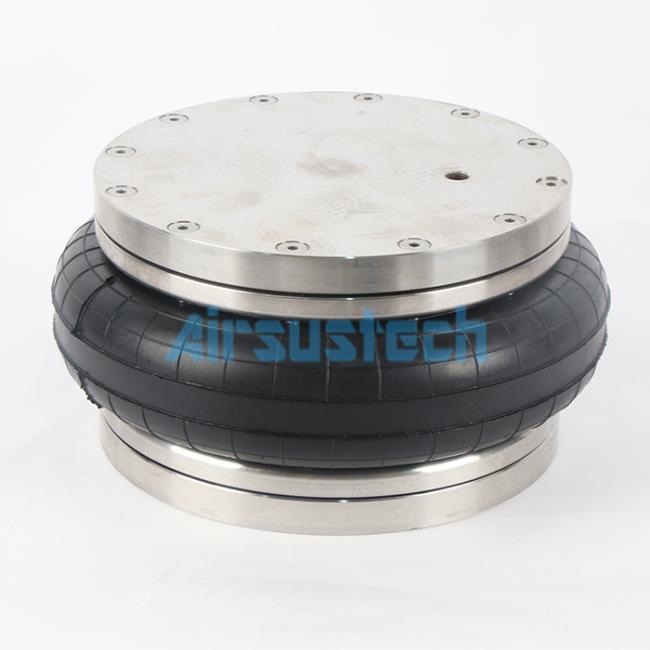

1B12×1P Real Pictures
