Customizable Air Spring Goodyear 1B8-580 Single Convoluted Air Bellows Air Bag

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

Customizable Air Spring Goodyear 1B8-580 Single Convoluted Air Bellows Air Bag

The Description of AIRSUSTECH Air Spring

As actuators, AIRSUSTECH air springs can enable linear or angular movements. These air suspensions have a favorable stroke-to-compression height ratio compared to air cylinders and can operate with various actuating media such as air, water, nitrogen, or antifreeze. AIRSUSTECH air rubber bellows effectively reduce the damaging effects of vibration. They can simultaneously isolate vibration and adjust the load height, ensuring consistent vibration isolation under varying loads.

1B8×6 Characteristics

Cover Plate	Top Cover Plate Diameter	135 mm
	Screw Center Distance of Top Cover Plate	70 mm
	Bottom Cover Plate Diameter	135 mm
	Screw Center Distance of Bottom Cover Plate	70 mm
Nut/Blind Nuts	Top Cover Plate Screw(Nut) Tooth	2×3/8-16UNC
Nut/Blind Nuts	Bottom Cover Plate Screw(Nut) Tooth	2×3/8-16UNC
Gas Hole/Air Inlet/Air Fitting	Air Connection	1/4-18NPT
Rubber Bellows	Max Diameter of Rubber Bellows	240 mm
	Natural Height	157 mm
	Sturcture	Single Convoluted

1B8×6 Air Actuator Fits for

Fit for Goodyear 1B8-580

Fit for Goodyear 1B8580

Fit for Goodyear 1B8 580

Fit for Goodyear 1B 8580

Fit for Goodyear 1B 8 580

Fit for Goodyear 1B 8-580
Fit for Firestone W01-358-7605 / WO1-358-7605

Fit for Firestone W013587605 / WO13587605

Fit for Firestone W01 358 7605 / WO1 358 7605

Fit for Firestone W01-358-7598 / WO1-358-7598

Fit for Firestone W013587598 / WO1-358-7598

Fit for Firestone W01 358 7598 / WO1-358-7598

About AIRSUSTECH Air Springs

Our air springs are available in single, double, and triple convolution designs, as well as with reversible sleeves.
AIRSUSTECH air bag offers a complete range of air actuators with replacement springs for virtually every vehicle air suspension system.
Although they appear simple, air rubber bellows are actually a highly complex and sophisticated product. Even minor changes in design, construction method, or materials used can have a large and noticeable impact on performance.
Choosing AIRSUSTECH air spring is a wise decision. With AIRSUSTECH air shoch suspensions, you benefit from the latest technical developments and improvements. This ensures that your product is not only well-designed and offers perfect performance, but also delivers outstanding long-term performance in actual use.

We Have Other Air Bags Replacements to Single Convoluetd Goodyear Air Bellows

1B5-500	1B5-502	1B5-503	1B5-510
1B5-512	1B5-520	1B5-521	1B6-530
1B6-531	1B6-532	1B6-535	1B6-538
1B7-540	1B7-541	1B7-542	1B8-550
1B8-551	1B8-552	1B8-553	1B8-554
1B8-560	1B8-562	1B8-564	1B9-201
1B9-202	1B9-204	1B9-207	1B9-208
1B12-301	1B12-304	1B12305	1B12-313
1B14-350	1B14-351	1B124-352	1B12-353
1B14-362	1B14-364	1B15-375	1B15-376
1B15-377	1B15-378

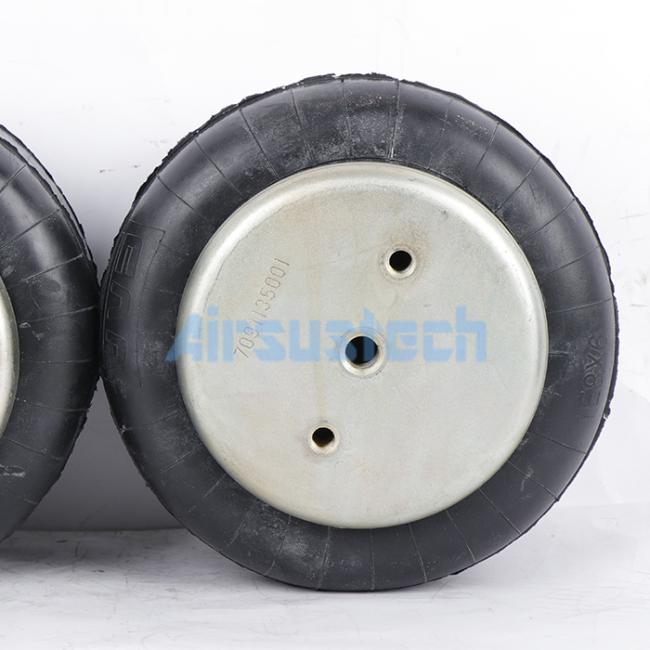

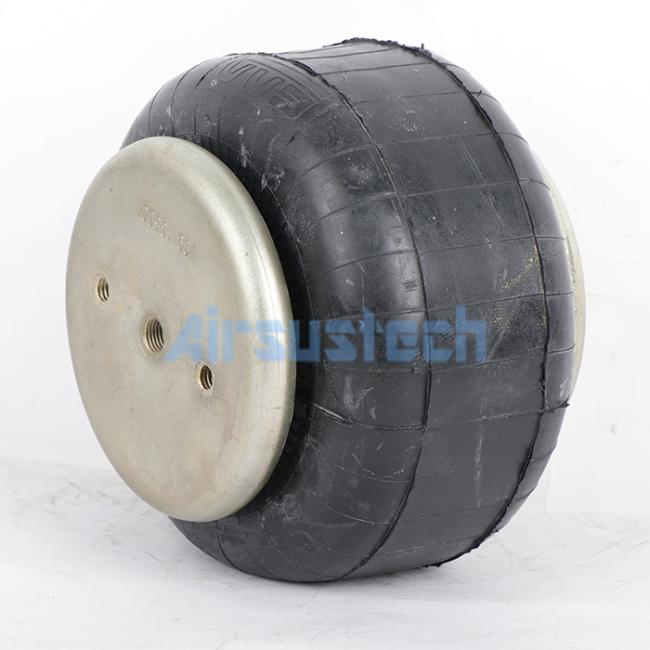

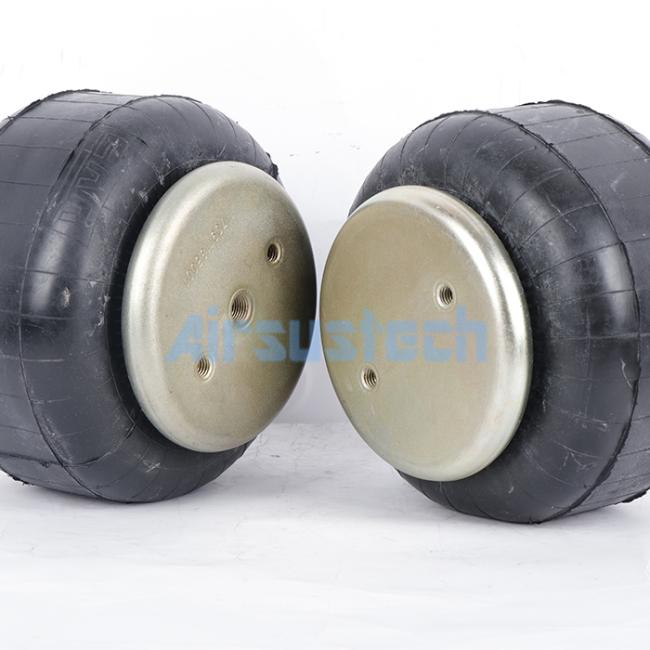

1B8×6 Real Pictures

Company Profile

Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.

Factory Workshop
