Triple Air Bellows W01-R58-4059 Firestone Air Actuator for Construction Cranes

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

Triple Air Bellows W01-R58-4059 Firestone Air Actuator for Construction Cranes

Product Detailed Datas

Diameter of the Top Cover Plate	210 mm
Center-to-Center Distance of Screws on the Top Cover Plate	181 mm
Diameter of the Bottom Cover Plate	210 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate	181 mm
Screw (Nut) Thread Count for the Top Cover Plate	4×M10
Screw (Nut) Thread Count for the Bottom Cover Plate	4×M10
Air Inlet	G1/2
Natural Diameter of Rubber Bellow	250 mm
Design Height	300 mm
Structure	Triple Convoluted

Part Interchanges

Firestone Part Number W01-R58-4059

Firestone Part Number W01R584059

Firestone Part Number W01 R58 4059

Firestone Part Number WO1-R58-4059

Firestone Part Number WO1R584059

Firestone Part Number WO1 R58 4059

Dunlop Pneuride Part Number 10''×3

Dunlop Pneuride Part Number 10'×3

Dunlop Pneuride Part Number 10×3
Dunlop Springride Part Number SP1539

Dunlop Springride Part Number SP 15 39

Dunlop Springride Part Number SP 1539
Contitech Part Number FT 210-32 DS

Contitech Part Number FT 21032 DS

Contitech Part Number FT 210 32 DS

Contitech Part Number FT210-32 DS
Norgren Part Number M/31103

Norgren Part Number M31103

Norgren Part Number M 31103
Parker Part Number 9109031

Product Applications

Hopper Vibration and Damping
Mechanical Handling Stop
Quick Lock Device
Reel Tensioning
Machine Isolation
Direct Force
Impact Absorbtion
Roller Tensioning
Platform Lift
Short Stroke Mechanical Linkage
Hot Foll Stamping Press
Automation Technology
Conveyor Systems
Agricultural Machinery
Food Industry
Paper and Textile Equipment
Pantograph Drives
Sawmill Machinery

We Have Other Triple Convoluted Flange Ring Air Springs/Air Suspensions/Air Actuators

	2 3/4''×3	SP2910	FT 22-6 DI		9109010
W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402
	6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177

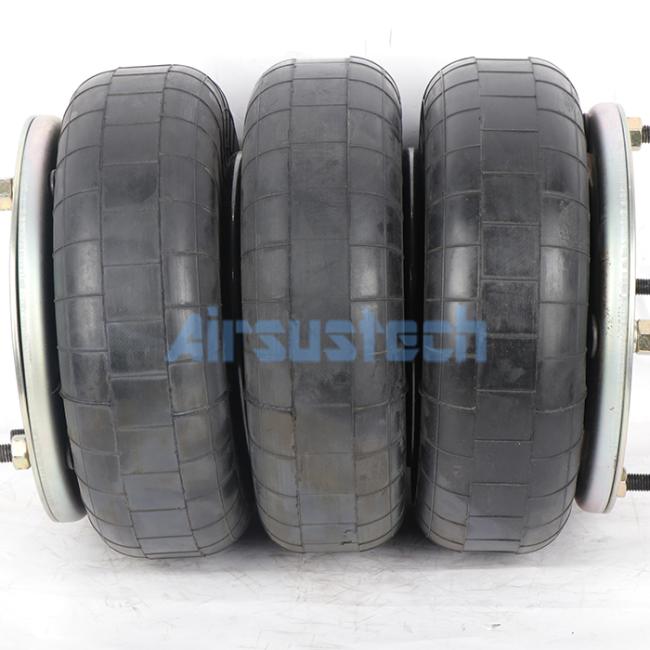

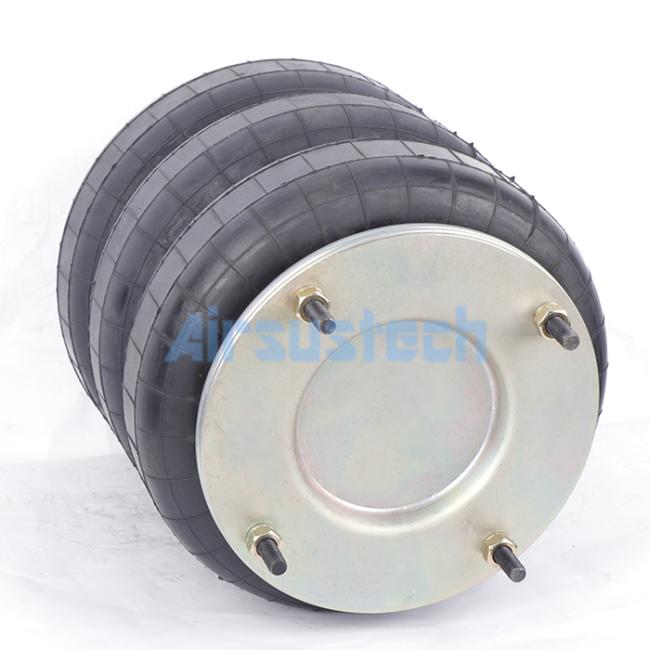

The Related Photos of 3B10×3T
