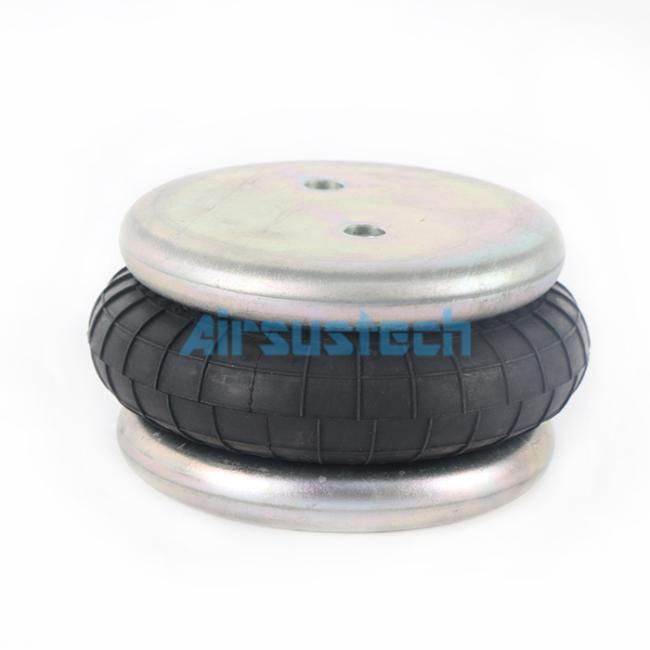

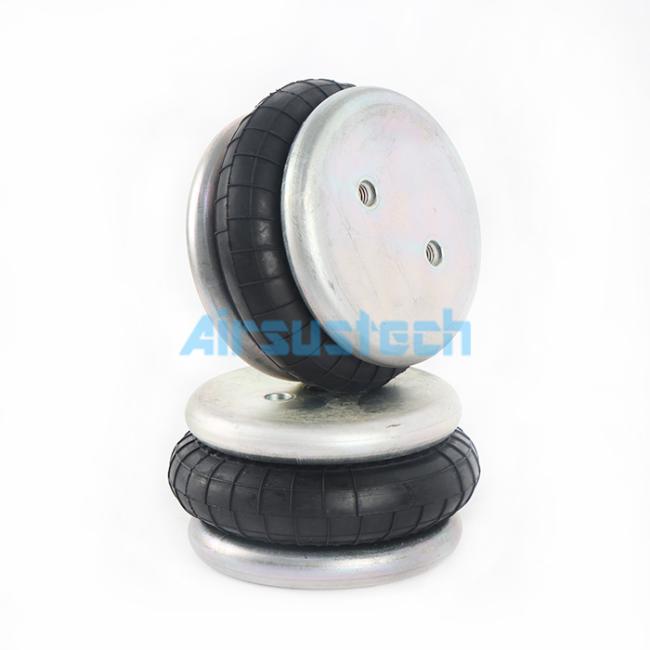

Original Single Rubber Air Spring Firestone W01-M58-6140 Air Actuator M8 Bolts

Product Information

1B130070 Specifications

OEM Manufacturer

Firestone OEM Manufacturer: W01-M58-6140

Firestone OEM Manufacturer: W01M586140

Firestone OEM Manufacturer: W01 M58 6140

Firestone OEM Manufacturer: WO1-M58-6140

Firestone OEM Manufacturer: WO1M586140

Firestone OEM Manufacturer: WO1 M58 6140

Contitech OEM Manufacturer: FS 50-5

Contitech OEM Manufacturer: FS 505

Contitech OEM Manufacturer: FS 50 5

Contitech OEM Manufacturer: FS50-5

Contitech OEM Manufacturer: FS505

Contitech OEM Manufacturer: FS50 5
AIRSUSTECH OEM Manufacturer: 130070J-1

AIRSUSTECH OEM Manufacturer: 1B130070

The Applications of Air Springs

Air springs provide unique solutions in many drive and vibration isolation applications around the world. In addition to the common uses, there are many less well-known uses due to the special structure.

1. Impact Isolation
Air springs are often used to isolate impact forces. Air springs are often used in sawmills to absorb the impact of falling logs and to lift logs onto conveyors. Air springs are best suited for such applications because they have the properties of both springs and rubber. Without such shock absorption, the equipment and its surrounding structures would suffer premature fatigue damage due to the frequent impact of falling logs.

2. Protective Covers and Flexible Couplings
Air spring bellows with rim ring structure can be used as protective covers or flexible couplings. Due to their flexible structure and ability to allow eccentric and torsional movement, air springs are the best solution for protective covers and flexible couplings. Considering the protection of the inner surface of the air spring from the influence of flowing materials, an internal sleeve is required.

3. Cam Follower
Introducing air springs into cam followers can greatly increase the life of the cam. The air spring eliminates the rigid contact and friction of the traditional cam follower, thereby significantly reducing the wear on the cam surface, and also makes the cam mechanism run smoother, reducing fatigue damage to the entire mechanism.





Company Profile

Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.


Factory Workshop
